Plexxi Switch 2e - Ports And Leds; Access Ports And Leds; I;O Panel Leds

!
''! HE)QQ7!?O73/A!')!B<5RO<5)!<2R!;263<EE<37. 2 ! S07R)! !
H.536!<2R!IJ-6!
\//)66!H.536!<2R!IJ-6!

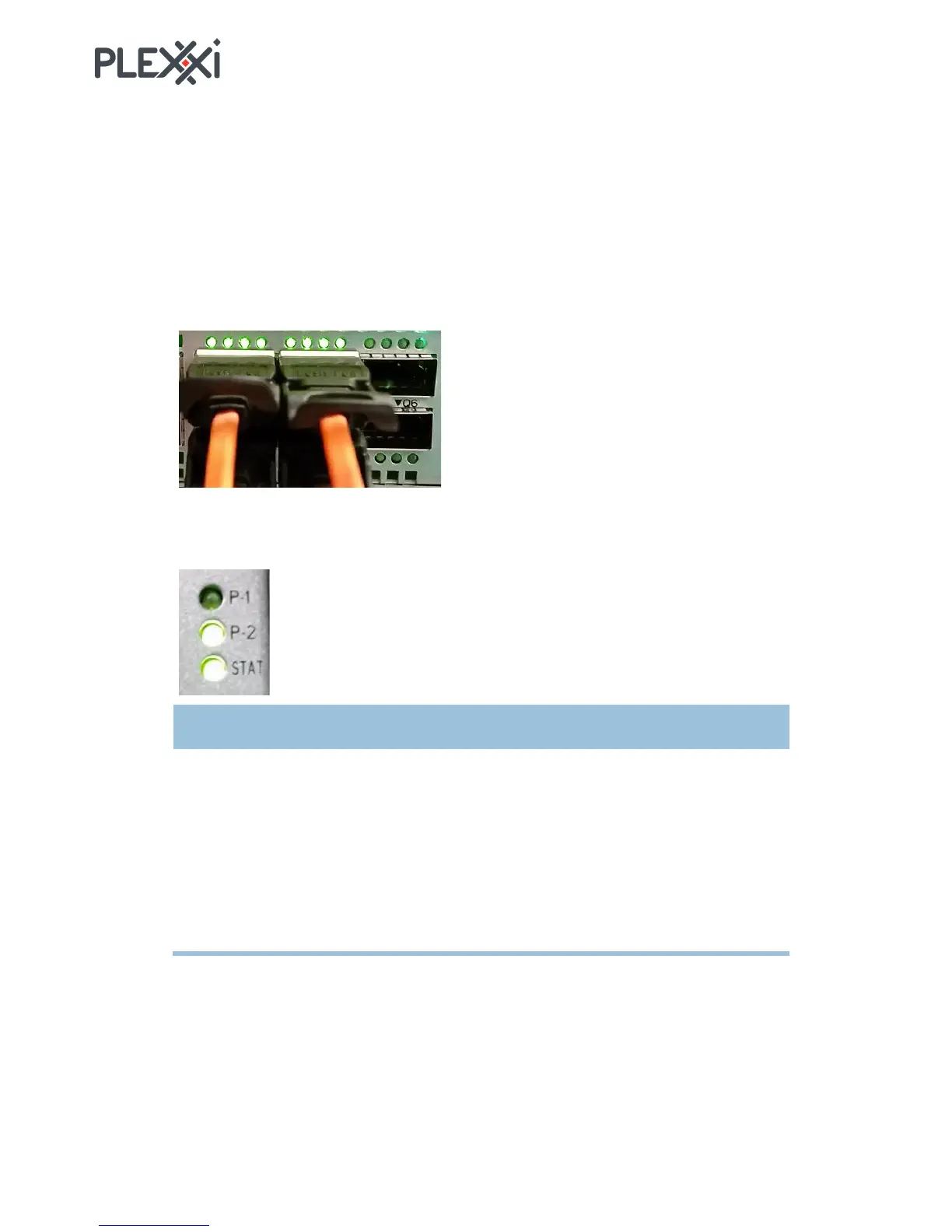

Each Switch 2e access port has at least one LED.
• 48 SFP+ ports each have their own LED
• 6 QSFP ports each have 4 LEDs
When connected, the LED for the corresponding access port will be lit. When there is activity on that
port, the LED with flicker as I/O is done to that port.
For example:
;aY!H<2) E !IJ -6!
There are three LEDs and a RESET button on the I/O panel.
LED
State
P-1
Lights when the SFP-side power supply is plugged in
(power supply labeled PWR1 located on opposite end)
P-2
Lights when the QSFP-side power supply is plugged
in (power supply labeled PWR2 located on opposite
end.
STAT
Solid light when everything is operating properly. If
something is wrong, the LED flashes slowly.
!
