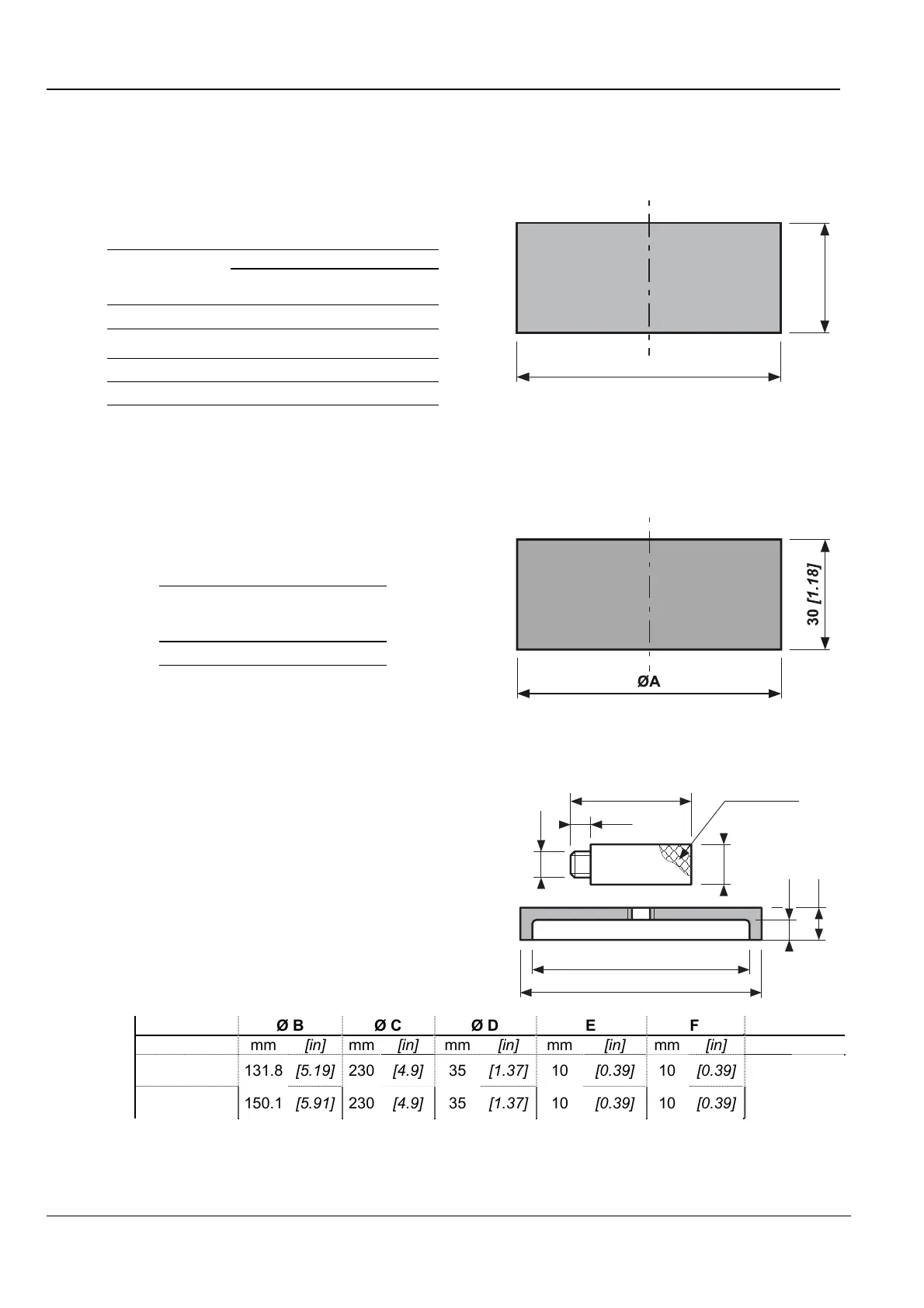

Mandrin pour les bagues
extérieures des roulements de
palier :
Mandrel for bearing outer
race:
073 074
Taille de
moteurs
Size of motors
ØA / A dia ØA / A dia
MS25 200 [7.87] 215 [8.46]
MS35 215
[8.46]
190
[7.48]
MS50 230 [9.05] 215 [8.46]
MS83 270 [10.63] 260 [10.24]
50 [1.97]
ØA
Mandrin pour la bague
d’étanchéité faciale à lèvre
Mandrel for facial lip seal
Taille de
moteurs
Size of motors
ØA / A dia
MS25-35-50-83 270 [10.63]
Mandrin pour remonter la
bague d’étanchéité
Mandrel for reassembling the
sealing ring
ØB / B dia
ØA / A dia
F
G
ØD
D dia
C
E
MX
Moletage
Milling
Ø A Ø B Ø C Ø D E F G
Moteurs /
Motors
mm [in] mm [in] mm [in] mm [in] mm [in] mm [in] mm [in]
MS25-50 124 [4.88] 131.8 [5.19] 230 [4.9] 35 [1.37] 10 [0.39] 10 [0.39] 20 [0.78]
MS35 129.8 [5.11] 150.1 [5.91] 230 [4.9] 35 [1.37] 10 [0.39] 10 [0.39] 20 [0.78]
