),... POINTEIIAVIOMCS ~
SkyHuntcrt40~
MANL:INS:SH:X:XX

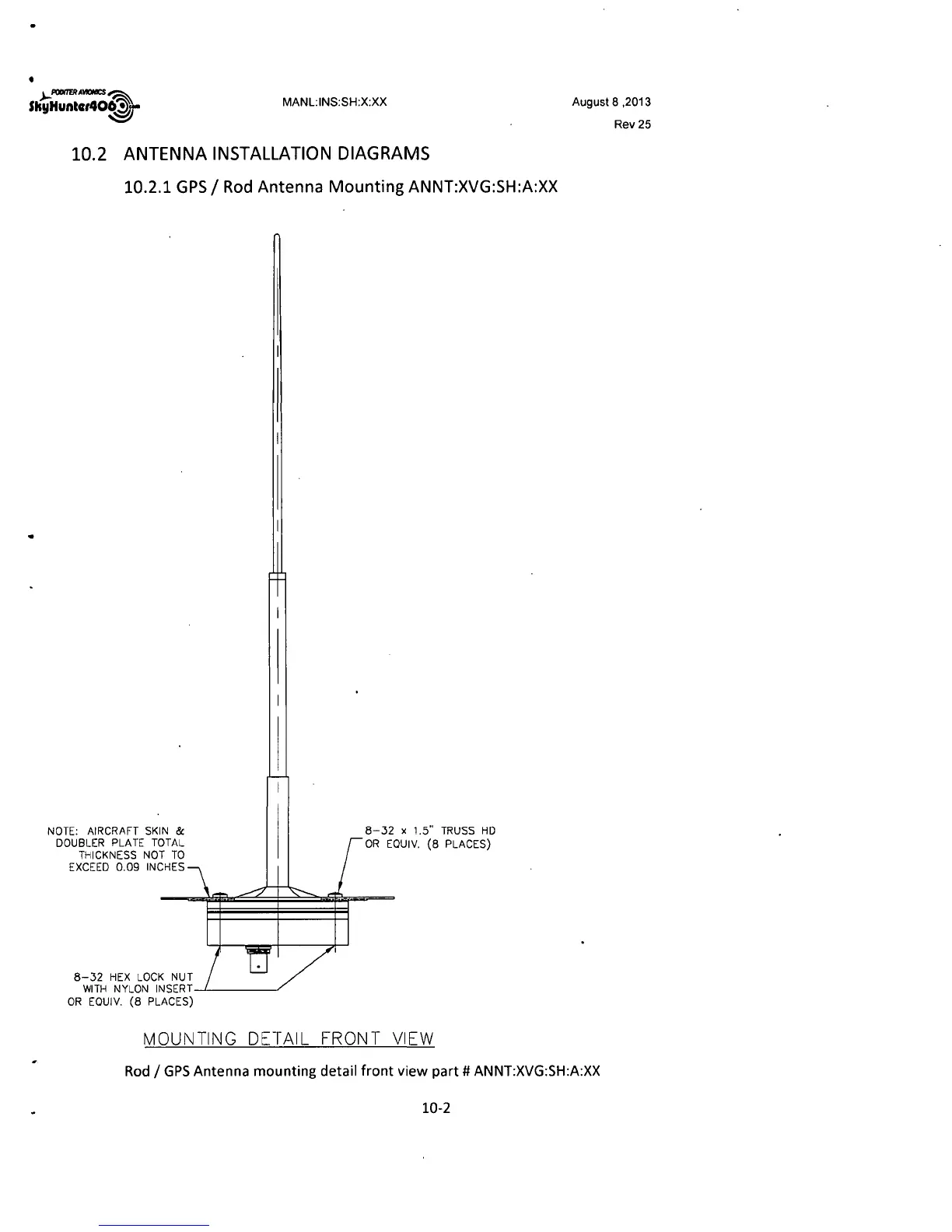

10.2 ANTENNA INSTALLATION DIAGRAMS
10.2.1 GPS / Rod Antenna Mounting ANNT:XVG:SH:A:XX
NOTE: AIRCRAFT SKIN &
DOUBLER PLATE TOTAL
THICKNESS NOT TO
EXCEED
Q09 INCHES
8-32 HEX LOCK NUT
WITH NYLON
INSERT~---~
OR EQUIV. (8 PLACES)
8-32 x 1.5" TRUSS HD
OR EQUIV. (8 PLACES)
MOUNTING DETAIL FRONT VIEW
August 8 ,2013
Rev25
Rod/ GPS Antenna mounting detail front view part# ANNT:XVG:SH:A:XX
10-2
