EDWARDS & ASSOCIATES, INC.
P.O. BOX 3689
BHT412EP
SIN 36106
N412SV
BRISTOL, TN. 37625

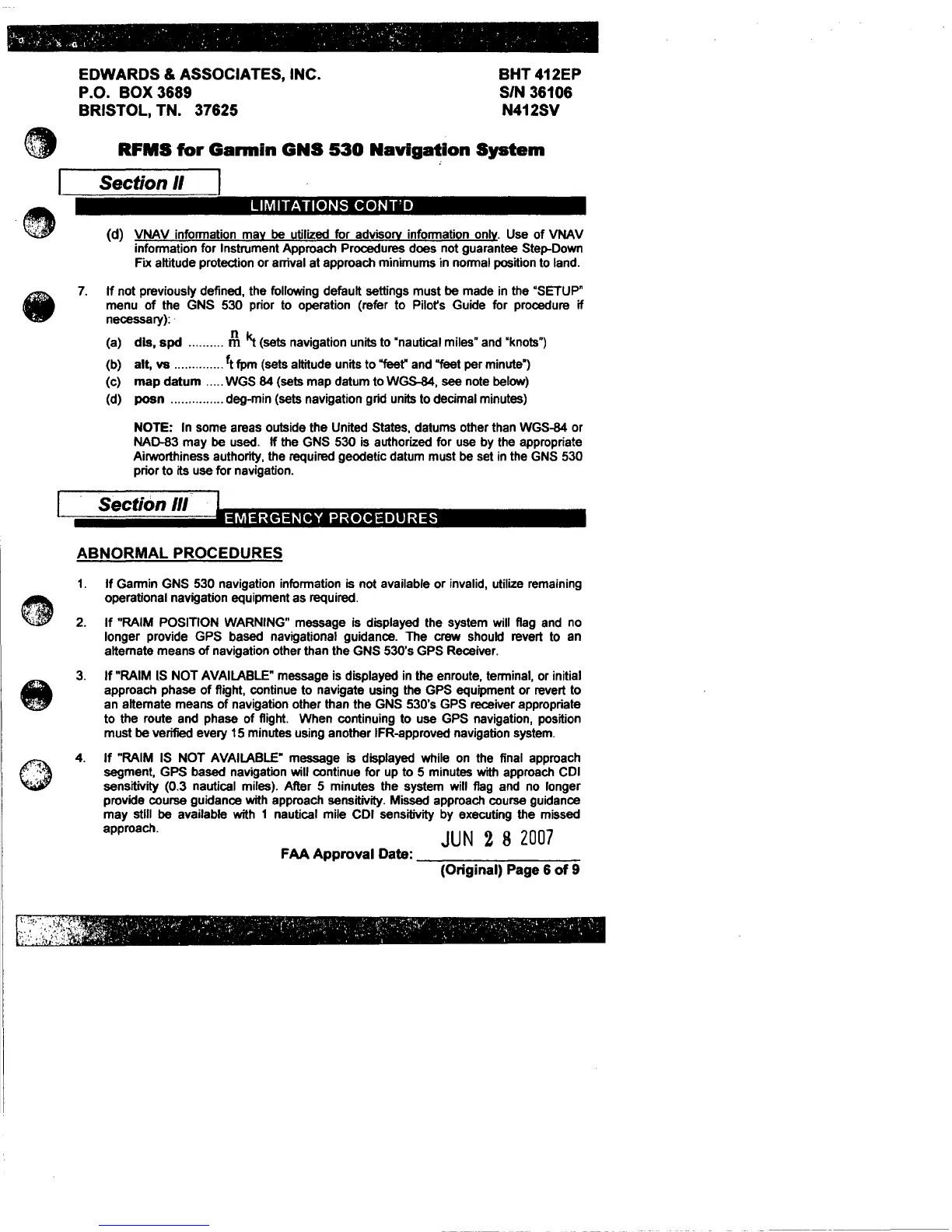

RFMS for Garmin GNS 530 Navig~lon System
Section II
LIMITATIONS CONT'D
(d) VNAV information may be utilized for advisory information only. Use of VNAV
information for Instrument Approach Procedures does not guarantee Step-Down
Fix altitude protection or arrival at approach minimums in normal position to land.
7. If not previously defined, the following default settings must be made in the "SETUP"
menu of the GNS 530 prior to operation {refer to Pilot's Guide for procedure if
necessary):
{a) dis, spd .......... /A ki {sets navigation units to "nautical miles" and "knots")
{b) alt, vs .............. ft fpm {sets altitude units to "feet" and "feet per minute")
{c) map datum ..... WGS 84 {sets map datum to
W~. see note below)
{d) posn ............... deg-min {sets navigation grid units to decimal minutes)
NOTE: In some areas outside the United States, datums other than WGS-84 or
NAQ.83 may be used. If the GNS 530 is authorized for use by the appropriate
Airworthiness authority, the required geodetic datum must be set in the GNS 530
prior to its use for navigation.
Section Ill
ABNORMAL PROCEDURES
1.
2.
3 .
4.
If Garmin GNS 530 navigation information is not available or invalid, utilize remaining
operational navigation equipment as required.
If "RAIM POSITION WARNING" message is displayed the system will flag and no
longer provide GPS based navigational guidance. The crew should revert to an
alternate means of navigation other than the GNS 530's GPS Receiver.
If "RAIM LS NOT AVAILABLE" message is displayed in the enroute, terminal, or initial
approach phase of flight, continue to navigate using the GPS equipment or revert to
an alternate means of navigation other than the GNS 530's GPS receiver appropriate
to the route and phase of flight. When continuing to use GPS navigation, position
must be verified every 15 minutes using another !FR-approved navigation system.
If "RAIM IS NOT AVAILABLE" message is displayed while on the final approach
segment, GPS based navigation will continue for up to 5 minutes with approach COi
sensitivity (0.3 nautical miles). After 5 minutes the system will flag and no longer
provide course guidance with approach sensitivity. Missed approach course guidance
may still be available with 1 nautical mile COi sensitivity by executing the missed
approach.
JUN 2 8 2007
FAA Approval Date:---------
(Original) Page 6 of 9
