~l'OINTERAWONlCS&
SkyHuntcr,40~
MANL:INS:SH:X:XX August 8 ,2013
Rev25

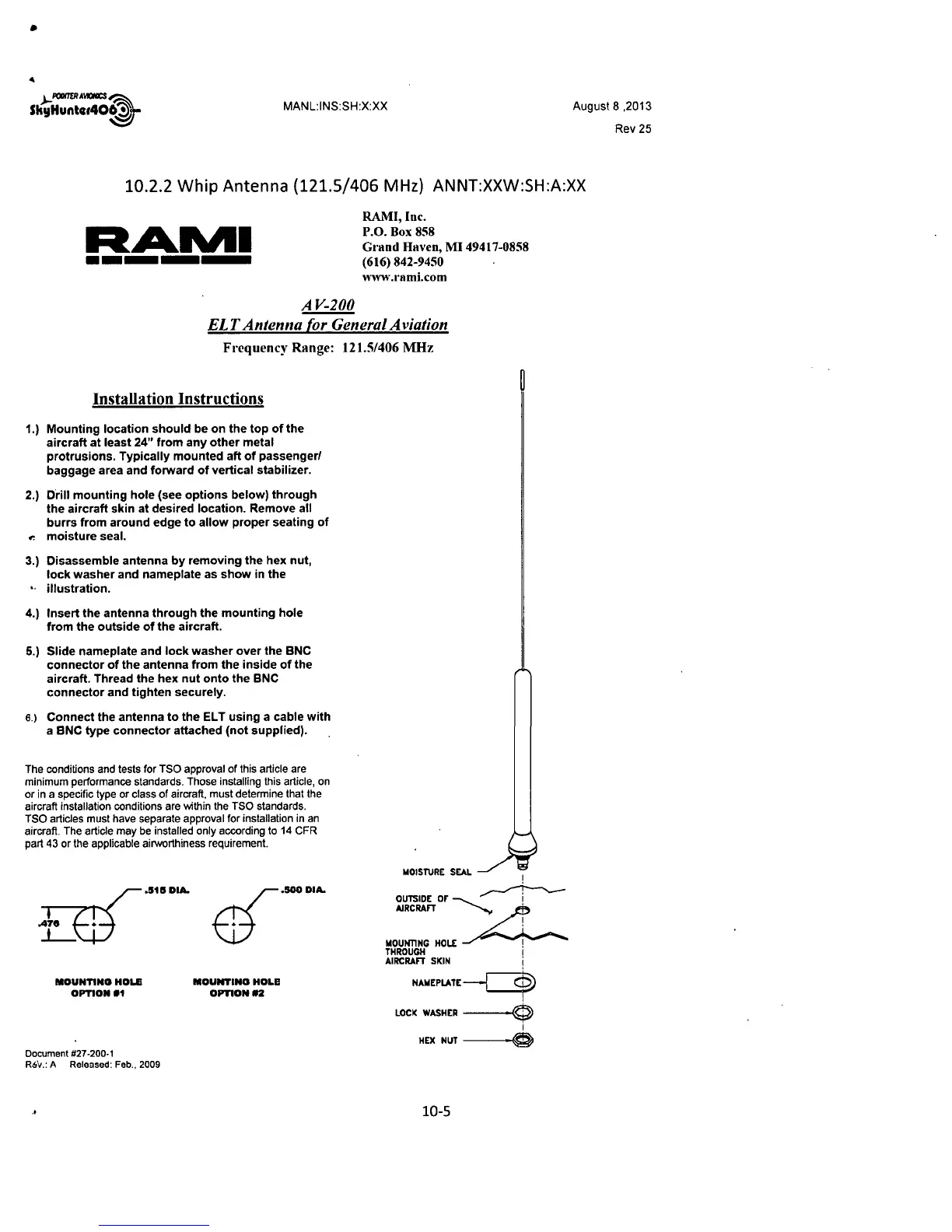

10.2.2 Whip Antenna {121.5/406 MHz) ANNT:XXW:SH:A:XX
AAIVII
------·
AV-200
RAMI,Inc.
P.O. Box 858
Grand Haven, MI 49417-0858
(616) 842-9450
www.rnmi.com
ELT Antenlla for General Aviation
Frequency Range: 121.5/406 MHz
Installation Instructions
1.) Mounting location should be on the top of the
aircraft at least 24" from any other metal
protrusions. Typically mounted aft of passenger/
baggage area and forward of vertical stabilizer.
2.)
D'rill mounting hole (see options below) through
the aircraft skin at desired location. Remove all
burrs from around edge to allow proper seating of
~
moisture seal.
3.) Disassemble antenna by removing the hex nut,
lock washer and nameplate as show in the
•· illustration.
4.) Insert the antenna through the mounting hole
from the outside of the aircraft.
5.) Slide nameplate and lock washer over the BNC
connector of the antenna from the inside of the
aircraft. Thread the hex nut onto the BNC
connector and tighten securely.
e.) Connect the antenna to the EL T using a cable with
a BNC type connector attached (not supplied).
The conditions and tests for TSO approval of this article are
minimum performance standards. Those installing this article, on
or in a specific type or class of aircraft, must determine that the
aircraft installation conditions are within the TSO standards.
TSO articles must have separate approval for installation in an
aircraft. The article may be installed only according to 14 CFR
part 43 or the applicable airworthiness requirement.
MOUNTING HOLE MOUNTING HOLB
OPTION
•1 OPTION "2
Document #27-200-1
R6\I.: A Released: Feb., 2009
MOISTURE SEAL
I
OUTSIDE or-..........~
AIRCRA" --...... A
MOUNTING HOLE
~
THROUGH I
AIRCRA" SKIN I
NAMEPLATE-q
LOCK WASHER --Qi
I
HEX NUT---~
10-5
