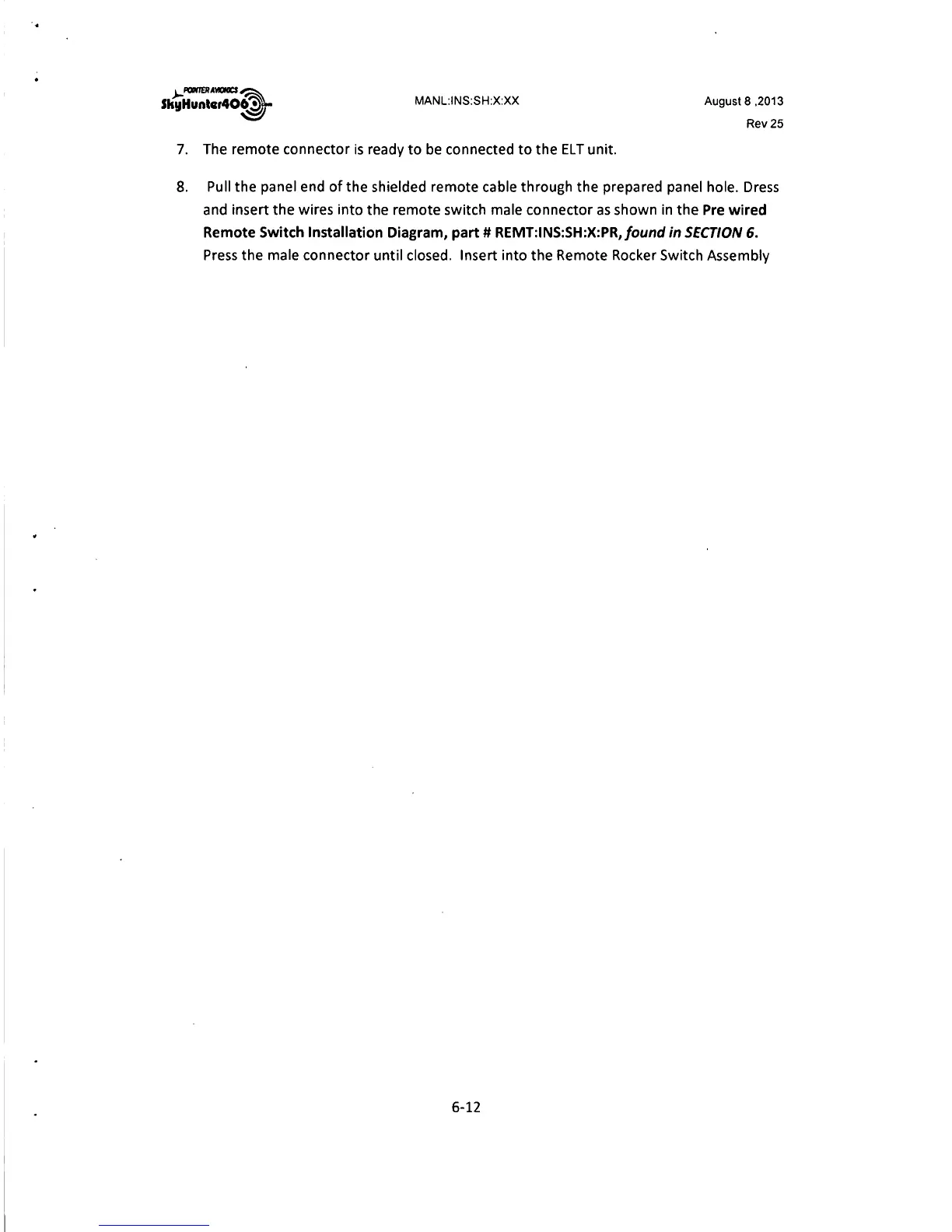

7. The remote connector is ready to be connected to the ELT unit.
Augusts ,2013
Rev25
8. Pull the panel end of the shielded remote cable through the prepared panel hole. Dress
and insert the wires into the remote switch male connector as shown in the Pre wired
Remote Switch Installation Diagram, part# REMT:INS:SH:X:PR,/ound
in SECTION 6.
Press the male connector until closed. Insert into the Remote Rocker Switch Assembly
6-12
