),.... POOITER AIDIICS
~
SkyHuntcr,40~
I
MANL:INS:SH:X:XX
0 !YAWAXIS
ROLL .x,s -ft !±f Wt---
I
I
August 8 ,2013
Rev25
~
~I
I
45'
YAW AXIS I
0-
LABEL "DIRECTION OF FLIGHT" ARROW

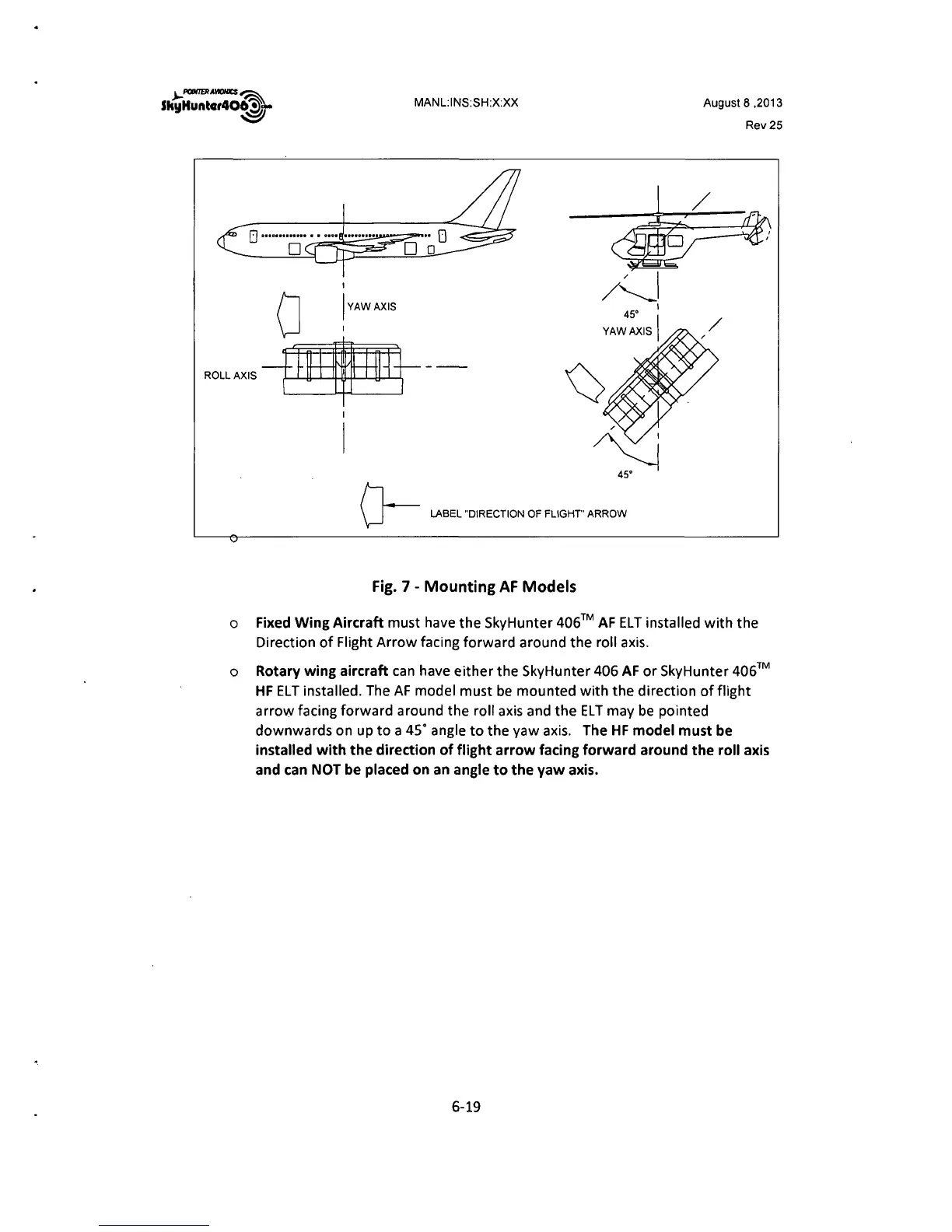

Fig. 7 - Mounting AF Models
o Fixed Wing Aircraft must have the SkyHunter 406™ AF ELT installed with the
Direction of Flight Arrow facing forward around the roll axis.
o
Rotary wing aircraft can have either the SkyHunter 406 AF or SkyHunter 406™
HF ELT installed. The AF model must be mounted with the direction offlight
arrow facing forward around the roll axis and the ELT may be pointed
downwards on up to a 45° angle to the yaw axis.
The HF model must be
installed with the direction of flight arrow facing forward around the roll axis
and can NOT be placed on an angle to the yaw axis.
6-19
