ShyHuntcrt40~
0
MANL:INS:SH:X:XX
I
I YAWAXIS
I
0--LABEL "DIRECTION OF FLIGHT" ARROW

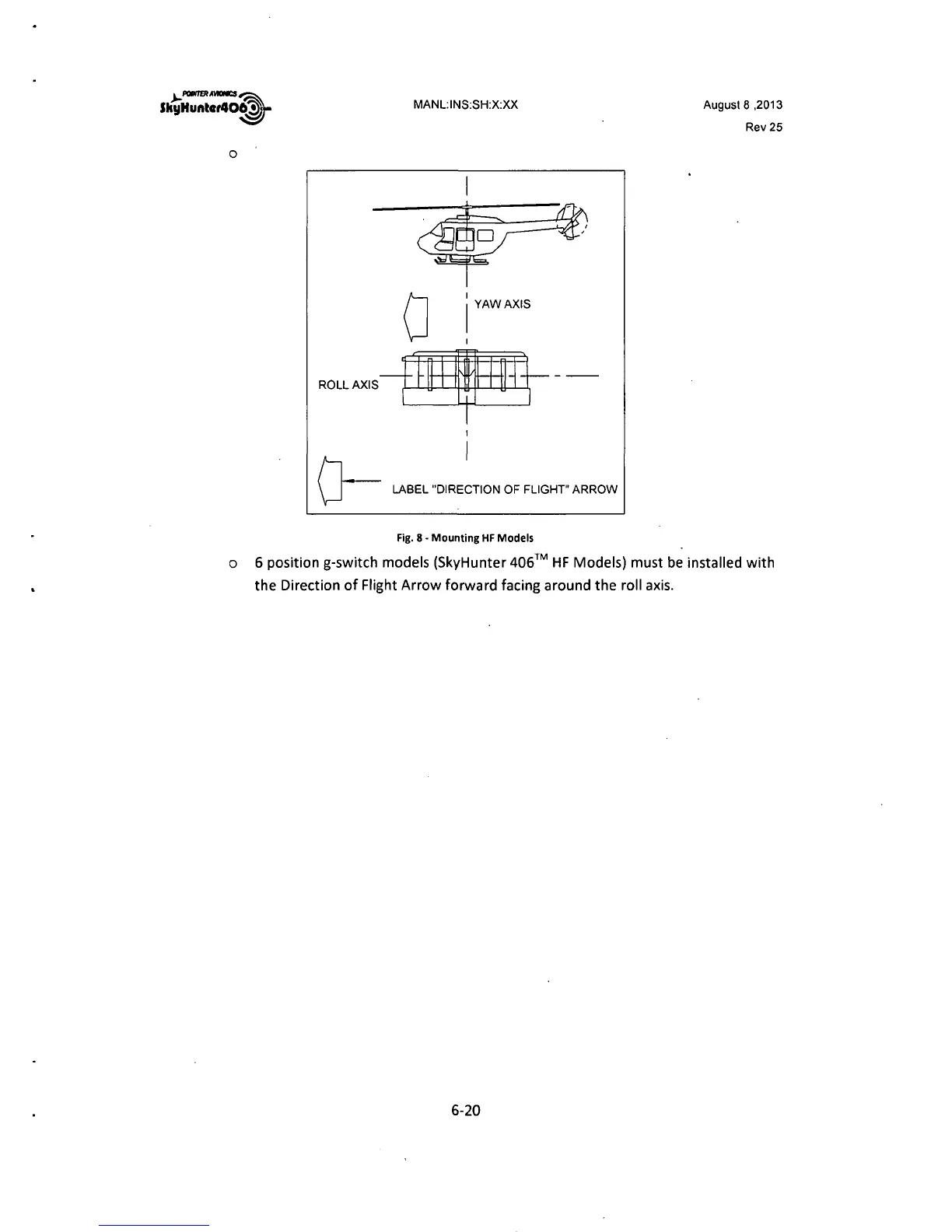

Fig. 8 - Mounting HF Models
August 8 ,2013
Rev25
o 6 position g-switch models (SkyHunter 406™ HF Models) must be installed with
the Direction of Flight Arrow forward facing around the roll axis.
6-20
