Getting Started
Device Parts
No
Name
Description
1
Front LED indicators
Indicate the power status and notification. See LED Indicator.
2
Display
Display all operating screen
3
Keypad
For detail information, refer to Using the Keypad
4
Microphone
Use for communications. Find the location on the other keypad
type in Microphone
5
I/O connector
Pogo 7 pin type I/O connector
6
Battery lock (Left)
Press to release the battery from PM451. For more detail, see
Install & Remove Battery
7
Scan button (Left)
Scan a barcode by pressing
8
USB connector with cap
USB 2.0 Type C / OTG
9
Center LED indicator (Left)
Indicates success/failure of barcode reading. See LED
Indicator

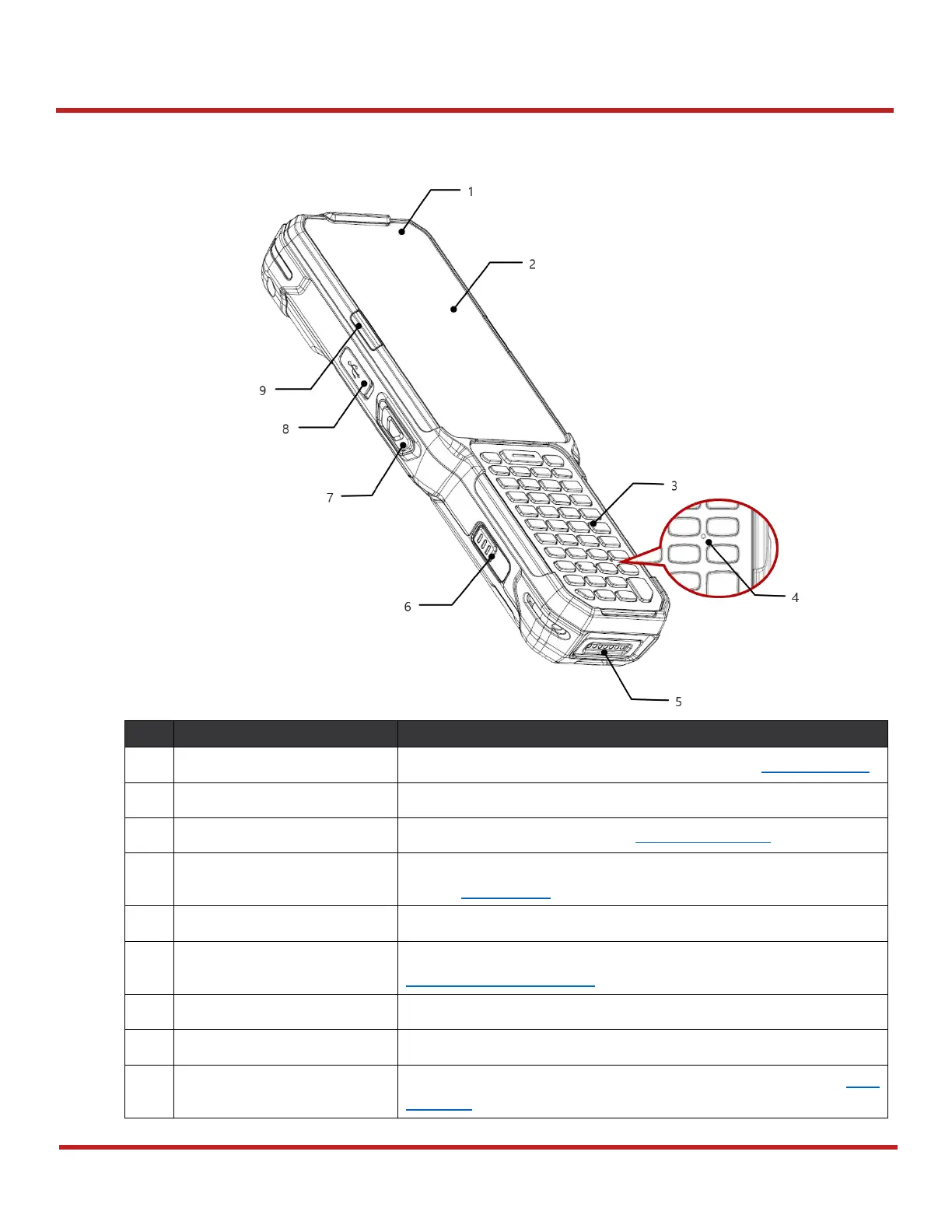

Figure 1 PM451 front view
