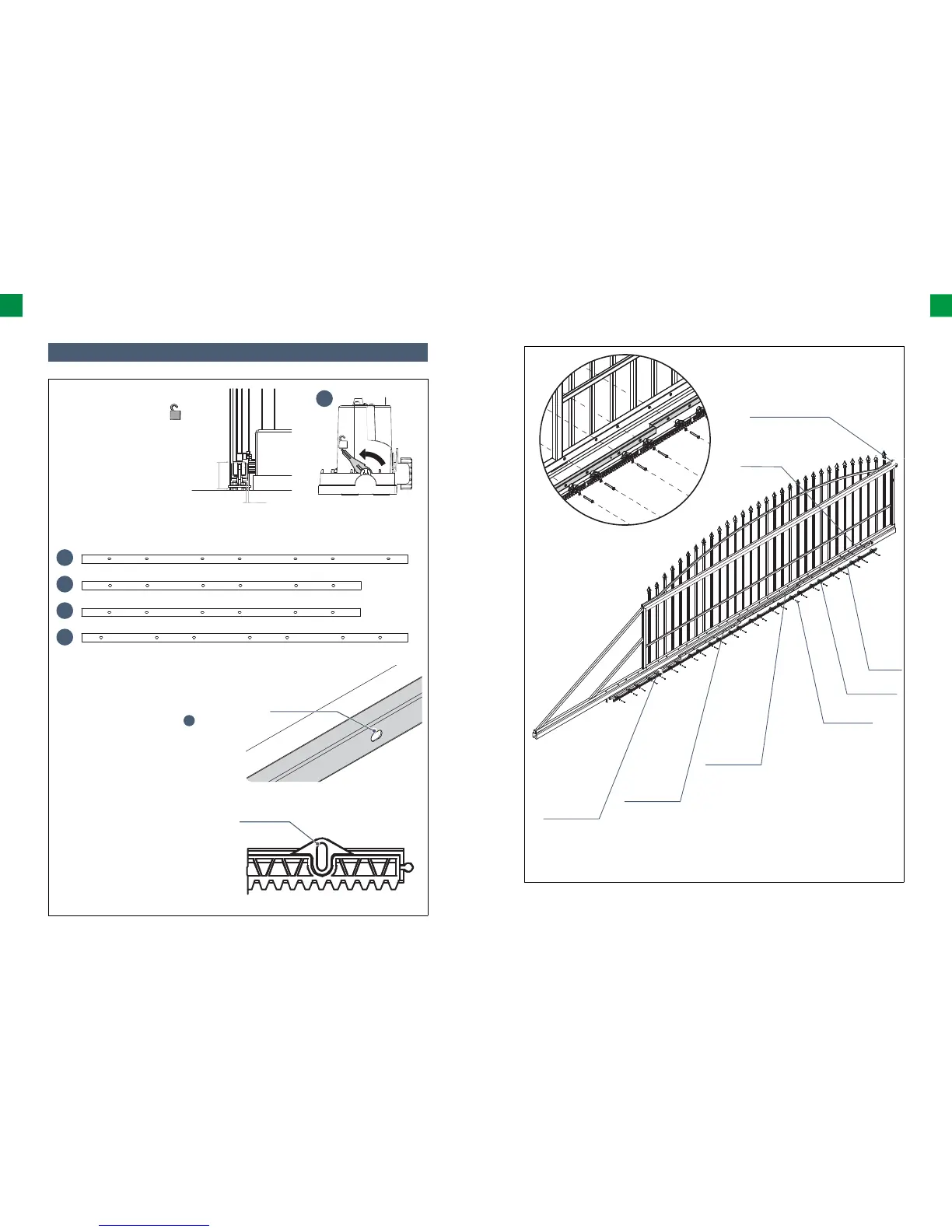

1.3 Toothed bar assembly
1. Check whether the drive is really
unlocked when the lever
is in the position.
2. Insert the pins (12x60 S12). Tighten
the double-thread screws (M10x15).
3. Assembly of the bars should start from
the lock side.
4. Insert bar No. 1 at a suitable distance from
the lock side.
5. Fix the toothed bar to bar No. 1
b
and fasten
using screws M6x50. Fasten the fi rst bar
in such a way as to feel slight resistance.
6. Level the bar. The bars No. 1 – No. 4 have
bean-shaped elements for horizontal
adjustment; the toothed bars can be adjusted
vertically.
7. Fasten the rest of the toothed bars
to the bar No. 1.
The last toothed bar on the bar No. 1
will connect the bars No. 2 and No. 1.
8. Fasten the subsequent bars and toothed bars
as shown above.
9. Once the bars are fastened, check whether
everything is level or not; if not, correct this.
77
11 -
0
4
No.1
No.2
No.3
No.4
1
Bar No. 4
Bar No. 3
Bar No. 2
Bean-shaped
element for
horizontal
adjustment
Bean-shaped
element for
vertical
adjustment
Bar No. 1
Toothed
bar
Screw M6x50
Washer M6
Start of assembly
