EN – Installation and operation guide SIMPLE MOVE 102
EN – Installation and operation guide SIMPLE MOVE 102
EN
EN

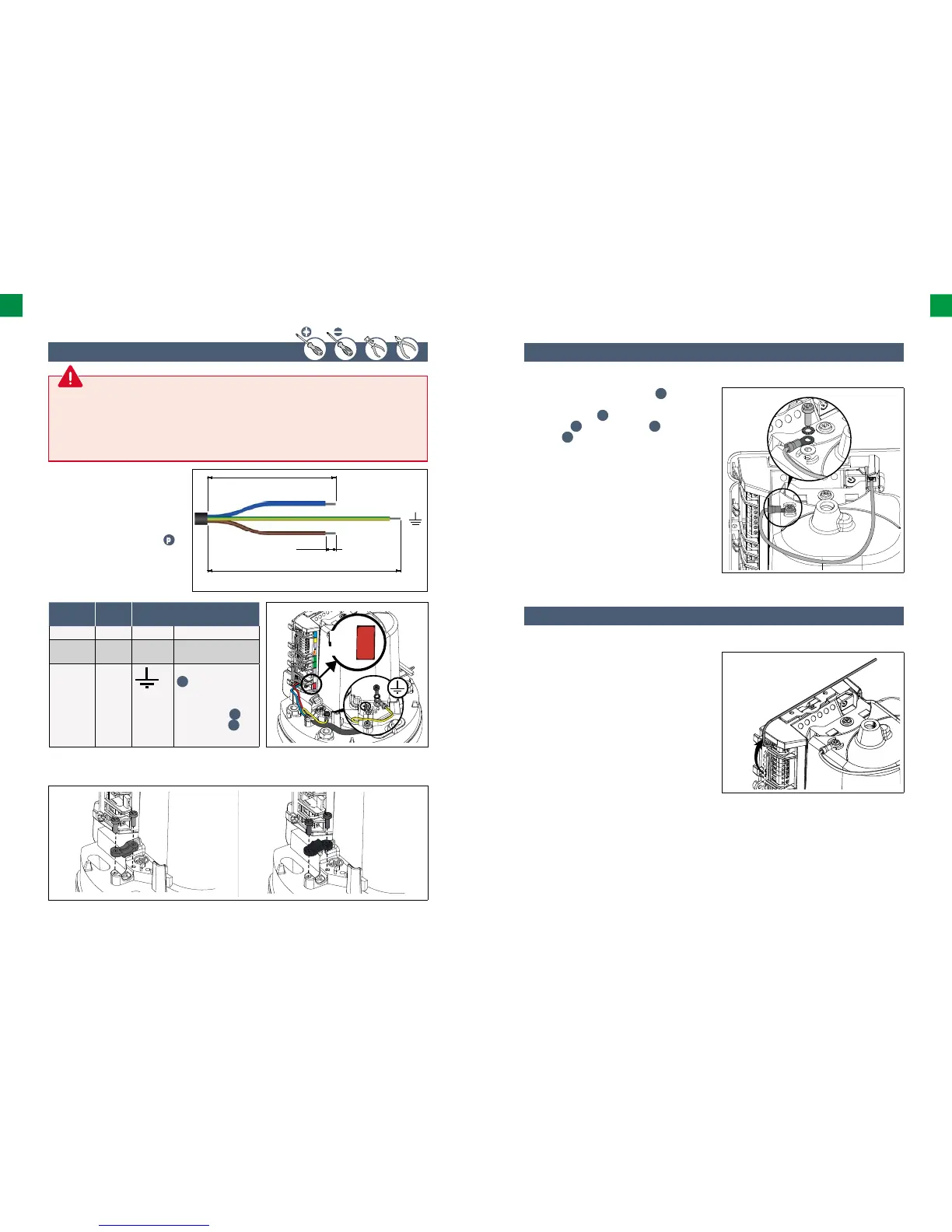

1.6 Connecting to the 230 V power supply
• For safety reasons, these activities must be carried
out only with the power supply disconnected.
• Use 3 x 1.5 mm2 or 3 x 2.5 mm2 cable for outdoor
use (type H07RN-F mini).
• The cable clamp supplied must be used. For
all low-voltage cables, check whether they can
withstand a force of 100 N or are in accordance
with the provisions in force in the country of use.
Check whether the cables have not moved when
this force has been applied.
Neutral
150 mm
8 mm
100 mm
Phase
1. Strip the cable at a distance of
150 mm.
2. Cut the live and neutral cable to a
length of 100 mm.
3. Strip the covering to 3 cables to a
length of 8 mm.
4. Crimp the provided terminal
on the earth cable (yellow and
green).
5. Connect the cables as shown
in the table:
Conductor
colour
Type Terminal Comments
Blue Neutral 17
Brown/
Black/Red
Live 16
Yellow and
green
Earth
Tighten a fl at washer
l
,
the power supply
earth terminal
crimped in step 4 and
a star washer
m
using a screw
g
.
7. Tighten the supplied cable clamp.
For a 3x1.5 mm² cable For a 3x2.5 mm² cable
A
N
T
ANT
B
US
B
US
11
3322
44
55
66
S
T
ART
ART
M1M1
M
2
M2
1111
1
3
1
31
0
1
01212
B
A
TT
B
A
TT
++
--
LIG
HT
LI
GHT
230V230V
1
5
1
5
1
7
1
7
1414
1
6
1
6
77
-
F
LAS
H
88
99
2
4V
+
LL
NN
16
17
230V
Neutral
Phase
Position the antenna onto the drive shield.
▶
If the supplied antenna is not factory-installed
▶
If the supplied conductor is not pre-installed
1.8 Position of the electronic control system antenna
1.7 Earthing of the electronic control system
1. Connect the supplied earth cable
f
to the
top right of the electronic control system.
2. Fit a fl at washer
l
, the earth cable
terminal
f
and a star washer
m
using a
screw
g
to the top of the drive.
