Polaris 2008 ranger 700 xp Service Manual

4.5
FUEL INJECTION
4

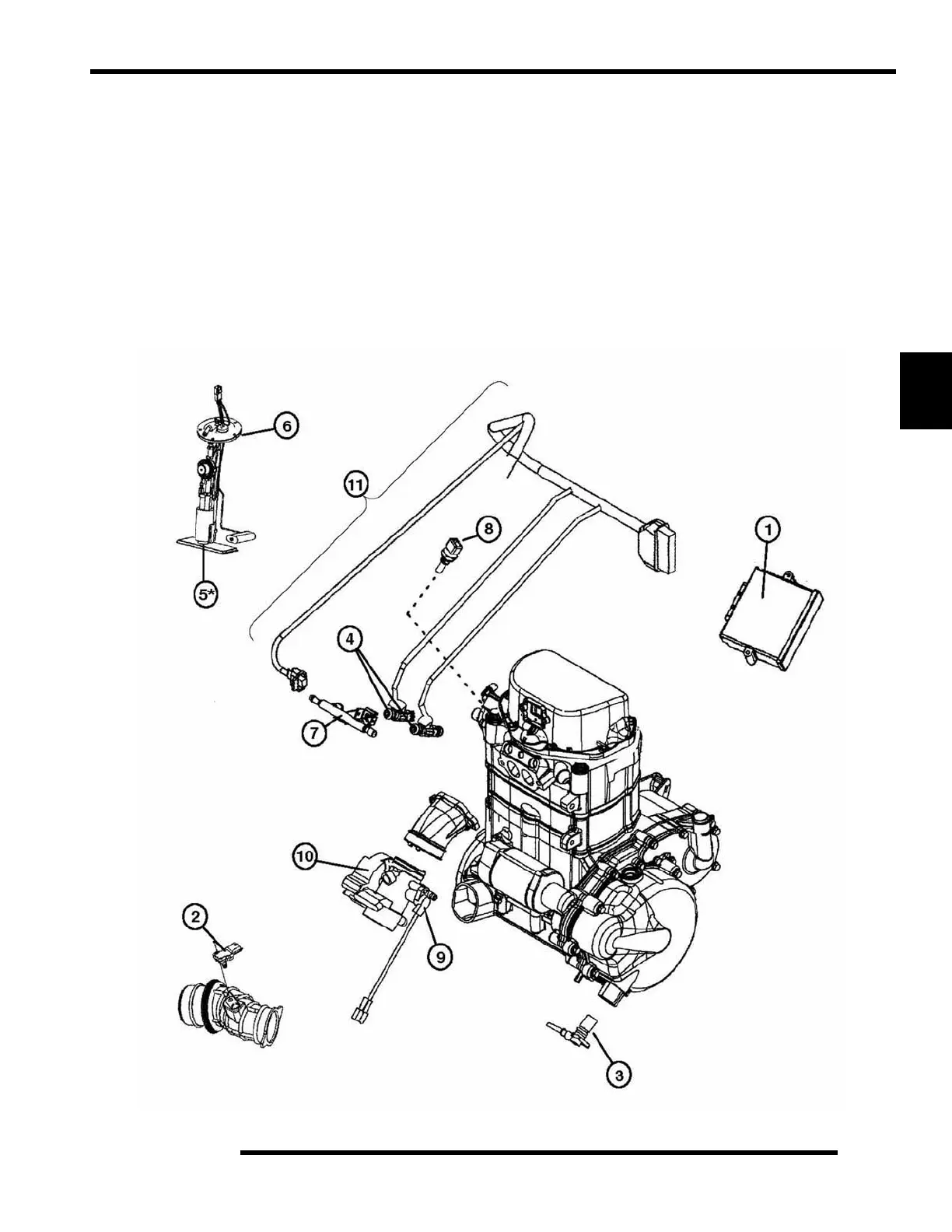

EFI System Exploded View
1. Electronic Control Unit (ECU)
2. Intake Air Temperature / Barometric Air Pressure Sensor (T-BAP)
3. Crankshaft Position Sensor (CPS)
4. Fuel Injectors
5. Fuel Filter
6. Fuel Pump / Regulator / Gauge Sender Asm. (Located in tank as an assembly)
7. Fuel Rail
8. Engine Coolant Sensor (ECT)
9. Throttle Position Sensor (TPS)
10. Throttle Body
11. Wire Harness (Part of main harness)
