BRAKES
REAR CALIPER

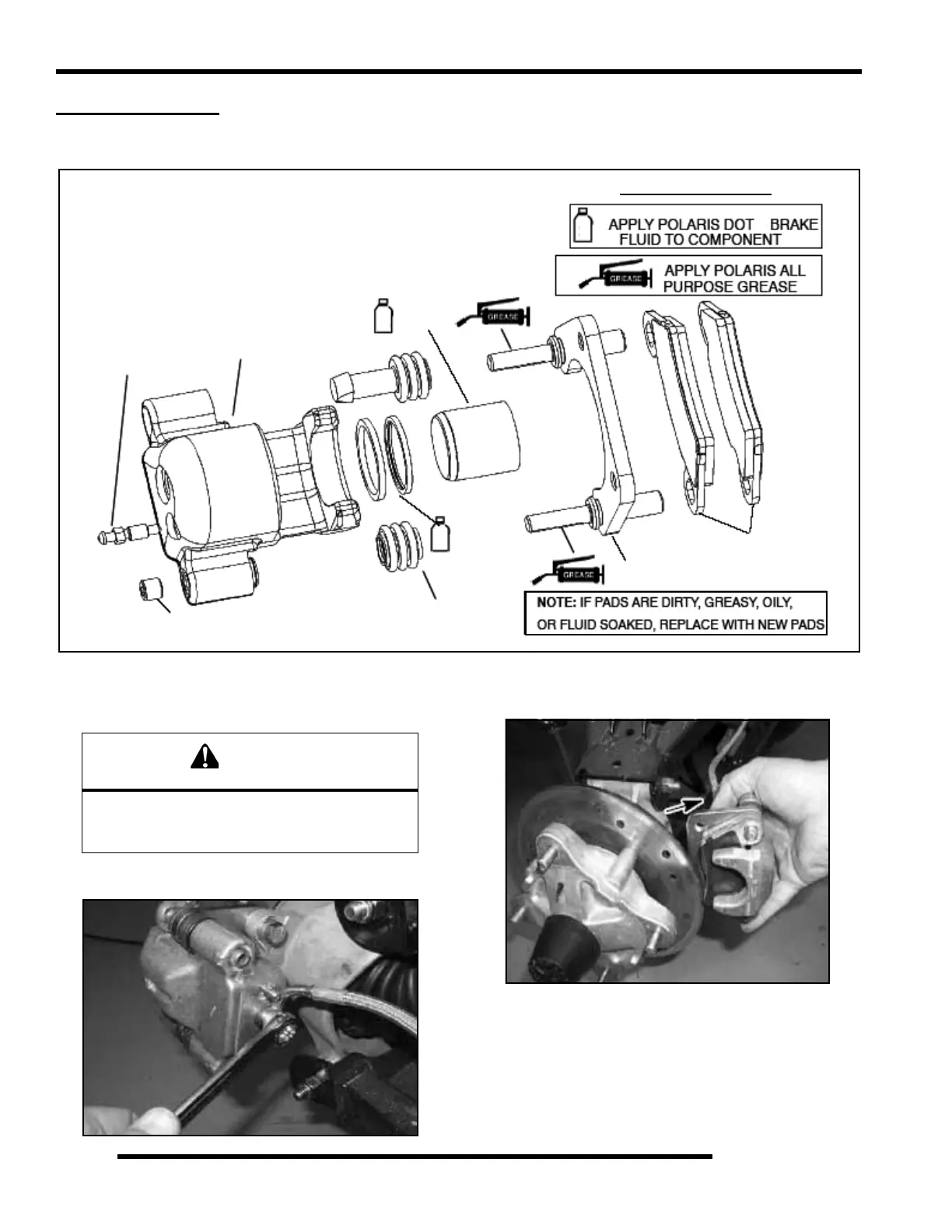

Rear Caliper Exploded View
Caliper Removal (4x4)
1. Safely support the rear of the machine.
2. Use a wrench to remove the brake line. Place a container
to catch brake fluid draining from brake lines.
3. After the fluid has drained into the container, remove the
two caliper mounting bolts and remove caliper.
4. Clean disc, caliper body, and pistons with brake cleaner or
alcohol.
Bleeder Screw
30-60 IN. LBS.
(4-6.5 NM)
Adjuster Screw
(Finger Tight)
Caliper Body
Piston
Caliper Mount
Pads
Dust Boots
Square
O-rings
DURING ASSEMBLY
4
4
4
4
CAUTION
Use care when supporting vehicle so that it does
not tip or fall. Severe injury may occur
if machine tips or falls.
