Polaris 2008 ranger 700 xp Service Manual

8.3
TRANSMISSION
8
Adjustment

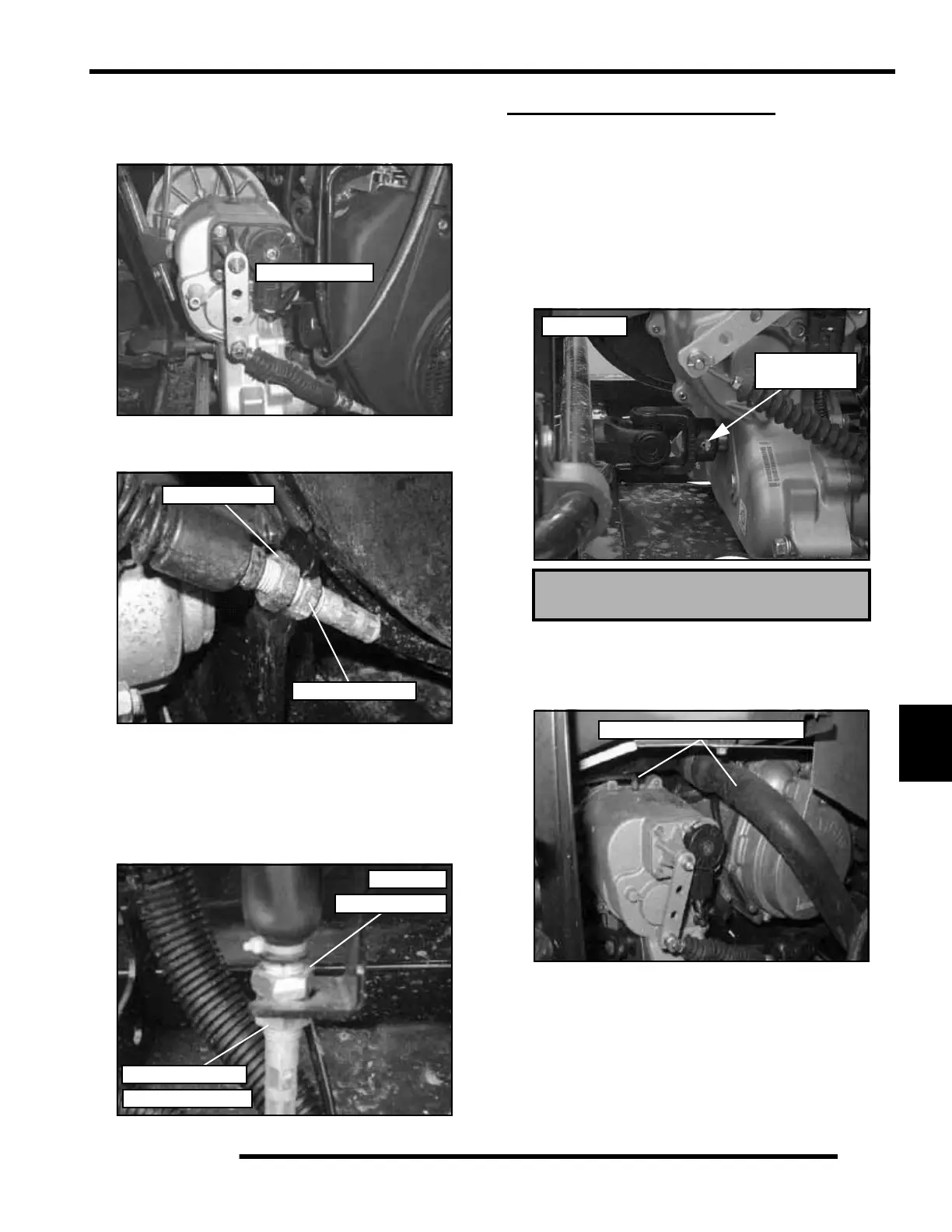

1. Place gear selector in neutral. Make sure the transmission
bell crank is engaged in the neutral position detents.
2. With two wrenches loosen the outside jam nut
counterclockwise. Turn the outside jam nut 1 1/2 turns.
Perform this procedure on the shift lever end, also.
3. After turning the outside jam nut 1 1/2 turns. Hold the
outside jam nut with a wrench and tighten the inside jam
nut clockwise, until it is tight against the bracket.
4. Repeat Step 4 and Step 5 until the proper adjustment is
made for the transmission cable.
5. Use this procedure to loosen or tighten the shift linkage
cable as needed.
TRANSMISSION SERVICE
Transmission Removal
1. Remove the PVT system from the left side of the
transmission.
2. Drive roll pin from rear driveshaft yoke.
NOTE: On the 4x4 & 6x6 transmission the front
output shaft yolk slides off during the transmission
removal.
3. Remove the air intake hose from the air box that is located
above the transmission. Place the hose to the side, this eases
the transmission removal. Remove the vent hose from the
top of the transmission.
Neutral Position
Inside Jam Nut
Outside Jam Nut
Clockwise
Counterclockwise
Inside Jam Nut
Outside Jam Nut
Roll Pin Removal Tool (PN 2872608)
Roll Pin
Removal Tool
4x4 Shown
Vent Tube & Air Intake Hose
