10.26
ELECTRICAL

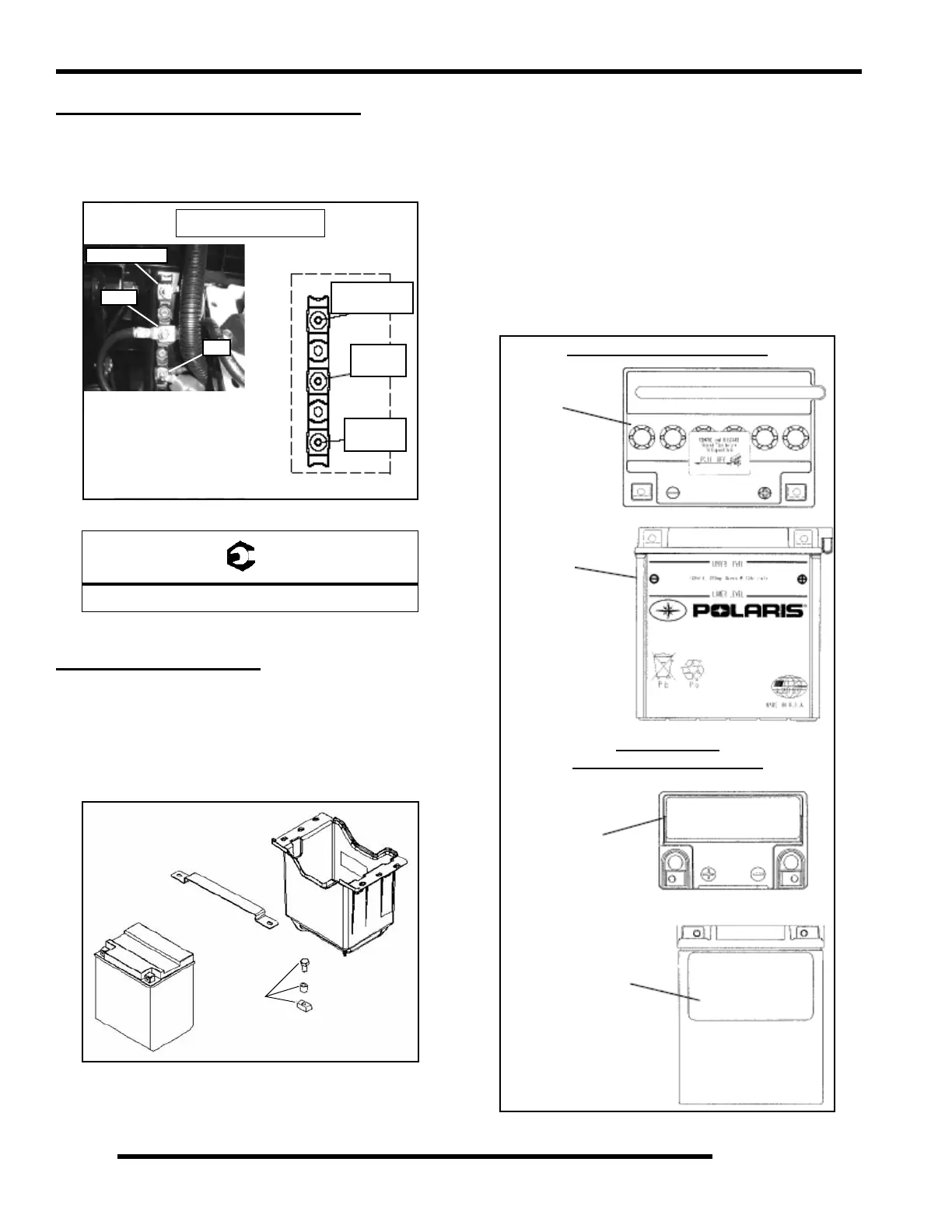

BATTERY TERMINAL BLOCK
The terminal block is located under the front hood next to the
battery. The terminal block provides easy access to the main
battery and starting cables. The terminal block also provides
easy hookup for accessories.
BATTERY SERVICE
Battery Terminals / Bolts
Use Polaris corrosion resistant Nyogel™ grease (PN 2871329)
on battery terminal bolts. See “Battery Installation” on Page
10.28.
Battery Identification
IMPORTANT: Identify what type of battery you have
installed in your RANGER. Different types of batteries
require different service procedures. Proper servicing
and upkeep of your battery is very important for
maintaining long battery life.
Your RANGER may have a Conventional Battery or a Sealed
Low Maintenance Battery. To identify which type of battery
your RANGER has, refer to the illustration below and follow the
correct service and charging procedures that follow in the
manual.
= T
Terminal Block Nuts: 20-25 in. lbs. (2.3-2.8 Nm)
TERMINAL BLOCK
Orange/White
Black
Red
Orange/White
(Accessories)
Black
(Ground)
Red
(Battery+)
Apply
Nyogel™
CONVENTIONAL BATTERY
Top View
Electrolyte Level
Side View
SEALED LOW
MAINTENANCE BATTERY
No Caps
(Non-removable
sealed Top)
Top View
Side View
Polaris Sticker
Removable
Caps
Indicator
