BRAKES
9

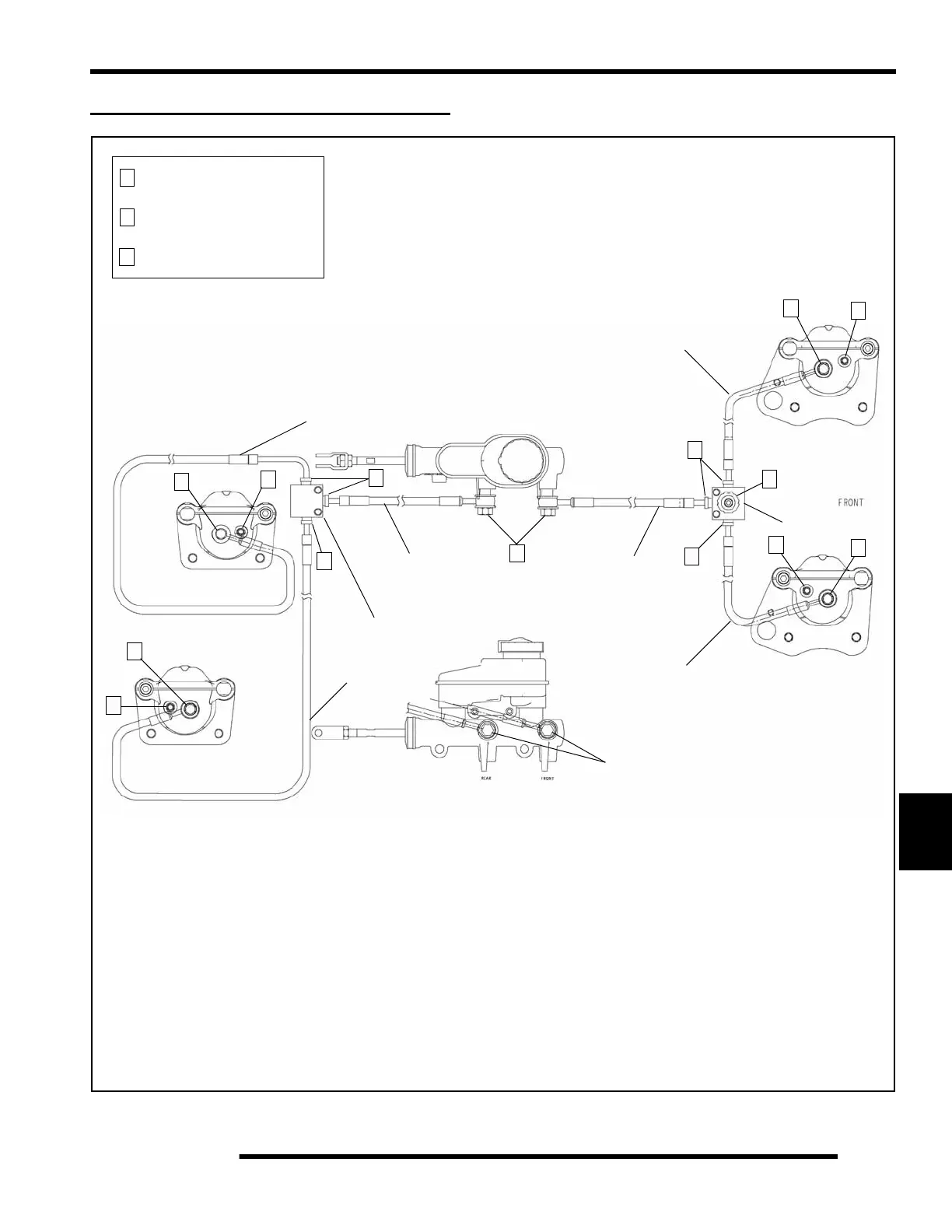

BRAKE SYSTEM EXPLODED VIEW
Caliper Banjo Style Fittings:
15 ft. lbs. (20 Nm).
All Caliper Bleed Screws:
30-60 in. lbs. (3.4-6.8 Nm)
Master Cylinder Side View
Cross Fitting
MC Rear
Brake Line
RH Rear Line
RH Rear Caliper
RH Front
Brake Line
RH Front Caliper
Brake Switch
MC Front
Brake Line
Master Cylinder
LH Front
LH Rear Caliper
LH Front Caliper
Brake Line
LH Rear Line
1
2
1
1
2
2
1
3
All Flare Style Fittings:
12-15 ft. lbs. (16-20 Nm)
3
3
3
3
3
1
1
2
2
15 ft. lbs.
(20 Nm)
