FINAL DRIVE
7

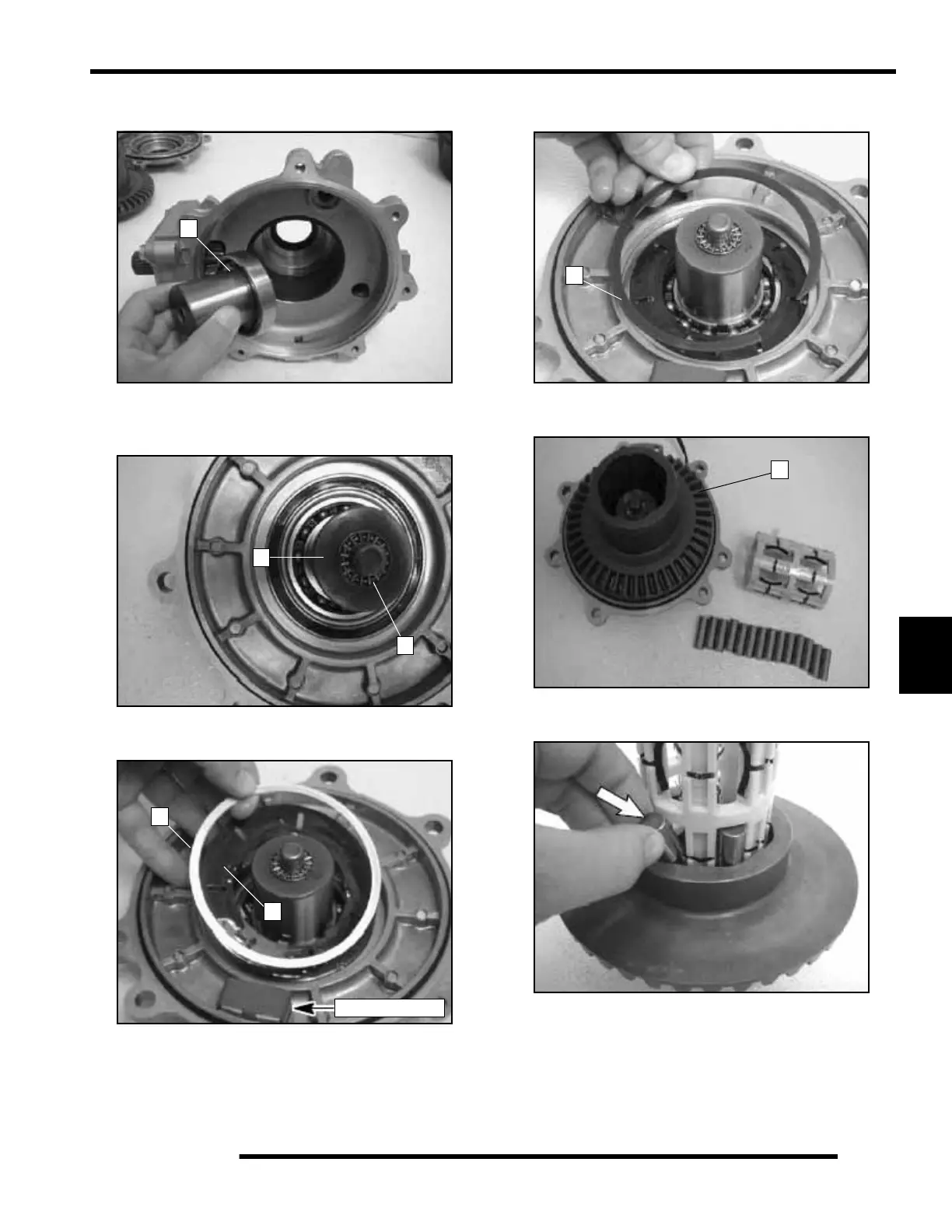

5. Install the output hub (A) into the gearcase housing. The
output hub should spin freely.
6. Install the other output hub (B) and thrust bearing (C) into
the output cover. Apply a small amount of grease onto the
thrust bearing.
7. Install the armature plate (D) and spacer washer (E) into the
output cover.
NOTE: Be sure backlash plate is in place.
8. Install the retaining ring (F) into the output cover. Be sure
the retaining ring is properly seated into the cover.
9. Install the ring gear (G) onto the output hub on the output
cover.
10. Install the rollers and roll cage into the ring gear. Insert the
rollers as the roll cage is installed.
A
B
C
E
D
Backlash Plate
F
G
