Polaris 2008 ranger 700 xp Service Manual

3.3
ENGINE
3

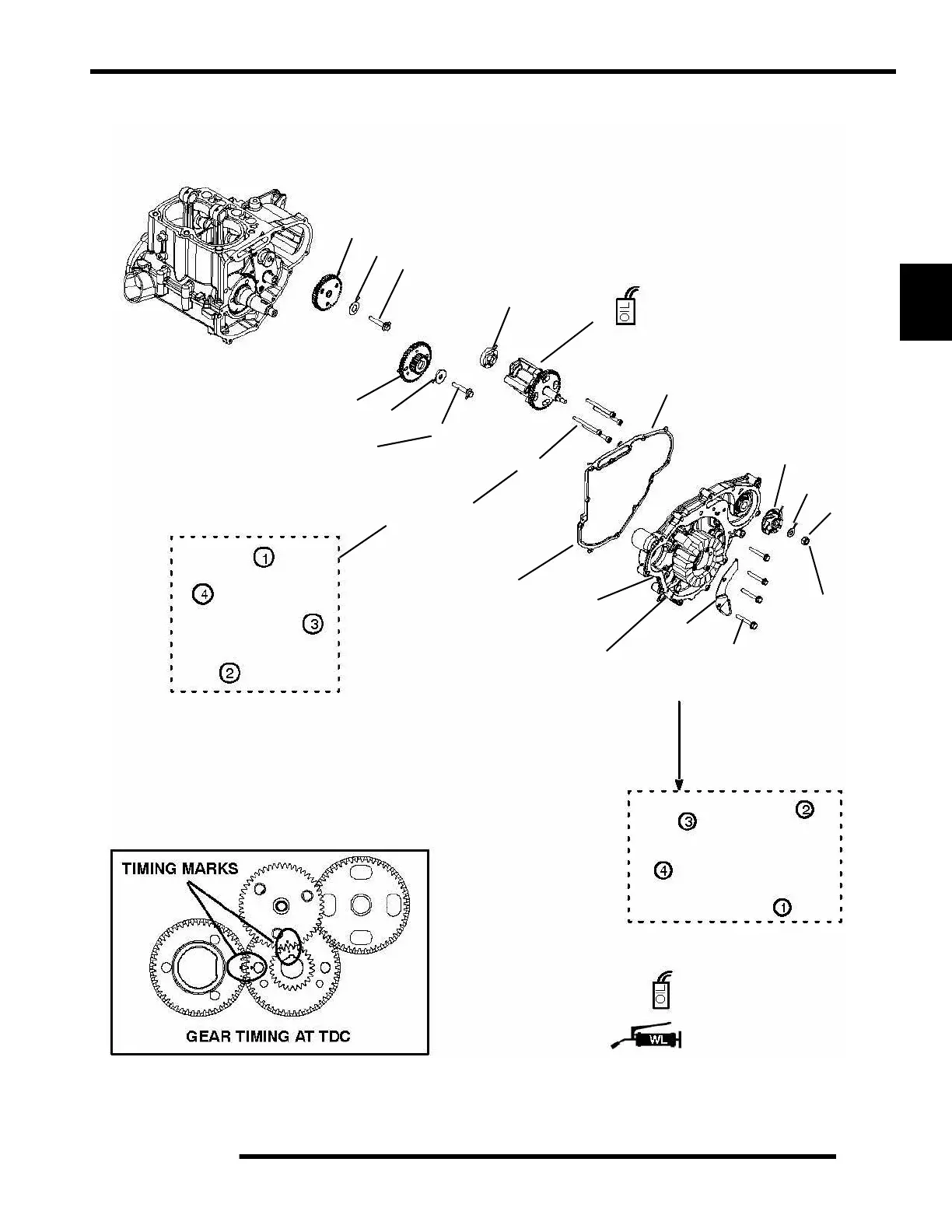

Oil Pump / Water Pump / Engine Cover Exploded View
A. Split Gear
B. Washer
C. Bolt
D. Oil Rotor
E. Oil Pump
F. Mag Gasket Cover
G. Impeller
H. Washer
I. Nut
J. Counterbalance Gear
K. Washer
L. Bolt
M. Oil Pump Bolts
N. Engine Cover
O. Wire Hold down
P. Stator Housing Bolts
A
B
C
D
E
F
G
H
J
K
L
M
N
P
22  2 ft. lbs. (30  3 Nm)
84  8 in. lbs. (9.5  .90 Nm)
Apply corrosion resistant
grease to stator grommet area.
96  3 in.lbs.
(10.85  0.35 Nm)
108 12 in.lbs.
(6.8  .68 Nm)
Oil Pump Bolt Tighten Sequence
Apply White Lithium
Grease
Apply Polaris OW-40
oil to component
Mag Cover Bolt Tighten Sequence
No Grease on this
Portion of the Gasket!
I
O
