7.28
PVT System
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

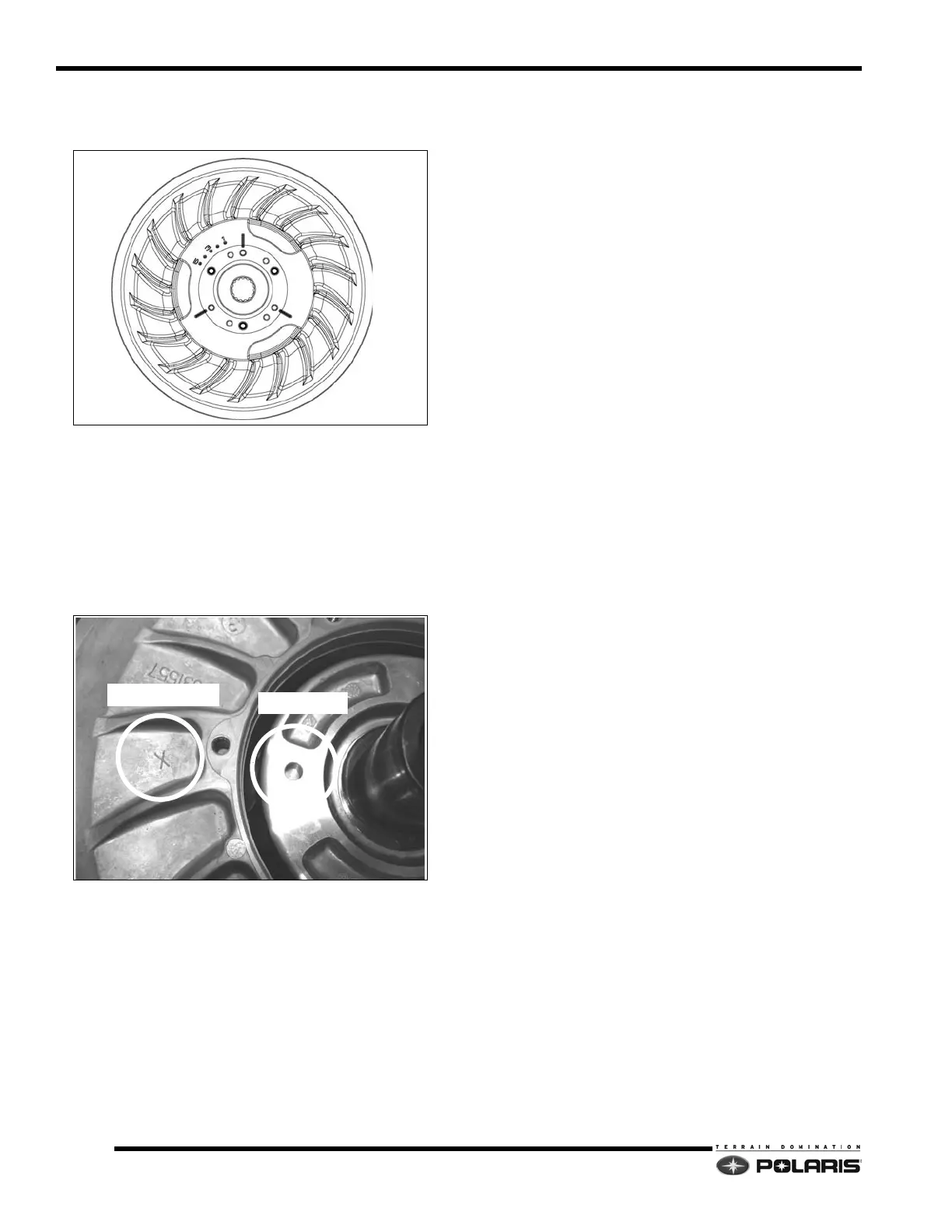

10. When assembling the deflection cam, pins, and
fasteners, reference the locations for each
component in the illustration.
• A - 3 threaded hole inline with raised line marks =
Deflection Cam Screws
• B - 3 non-threaded holes = Deflection Pins
• The remaining 4 threaded holes are for the L
wrench tool.
11. Align the helix alignment hole with the “X” on the
moveable sheave.
12. Align the wide gap in the helix splines with the skip
tooth in the stationary sheave shaft.
13. Visually verify the rollers are positioned underneath
each corresponding helix ramp.
14. Compress the helix down into the sheave. Install the
washer and snap ring. Verify the snap ring is fully
seated in the groove with the sharp edge upward.
15. Carefully release the clutch compressor.
16. Align the two “X” marks and install the cover. Torque
fasteners to specification.
