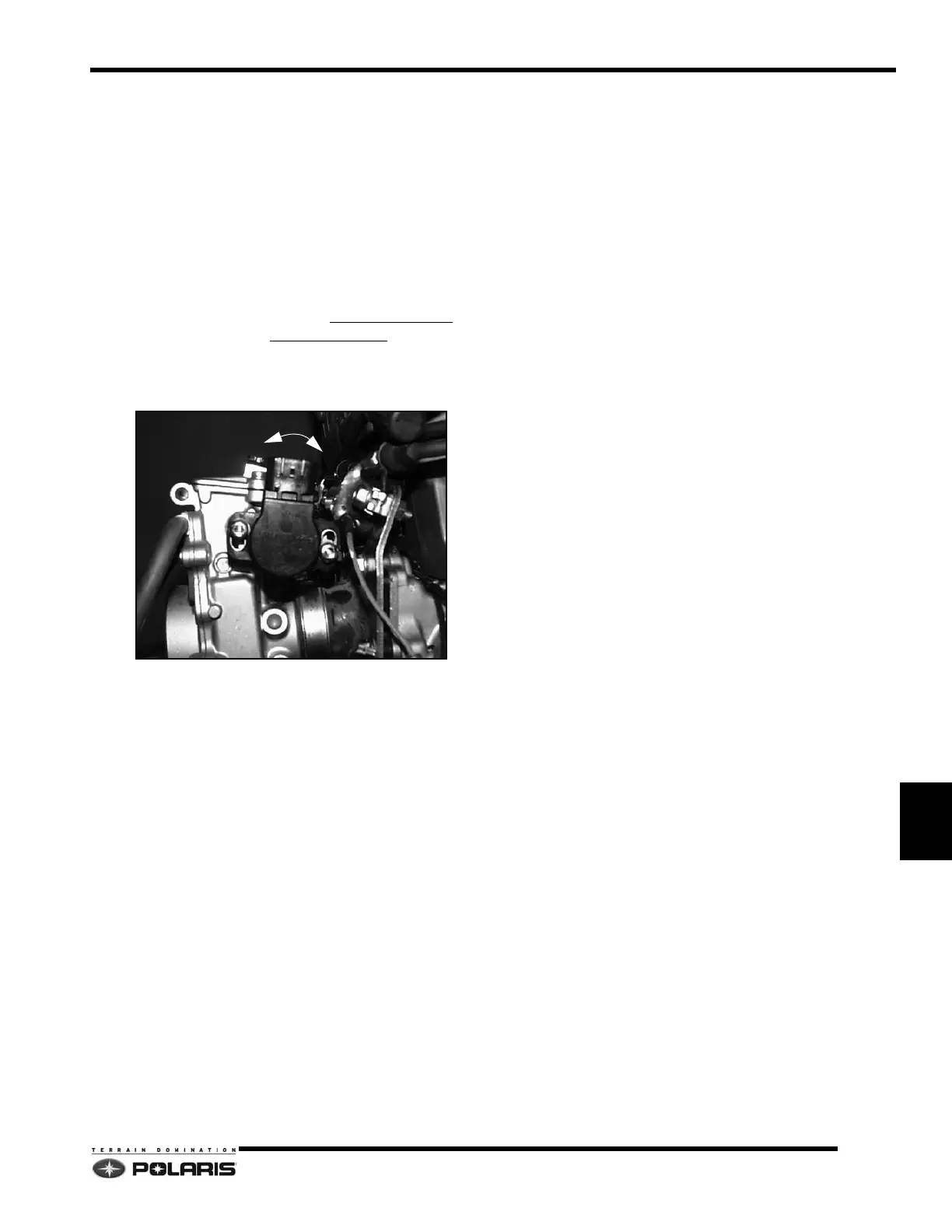

TPS Adjustment - Carbureted Models
NOTE: Always verify the engine idle speed is set at
engine operating temperature and the throttle cable
free play is set to 0.10 - 0.30.
1. Connect the TPS test tool to the TPS.
2. Slightly loosen the screws securing the TPS to
carburetor body.
3. Have an assistant hold the throttle flipper in the WOT
position.
4. Turn the TPS clockwise to decrease voltage
, or
counterclockwise to increase voltage.
5. Carefully tighten the TPS screws when the WOT Vdc
is 4.00Vdc.
