3.10
Maintenance
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

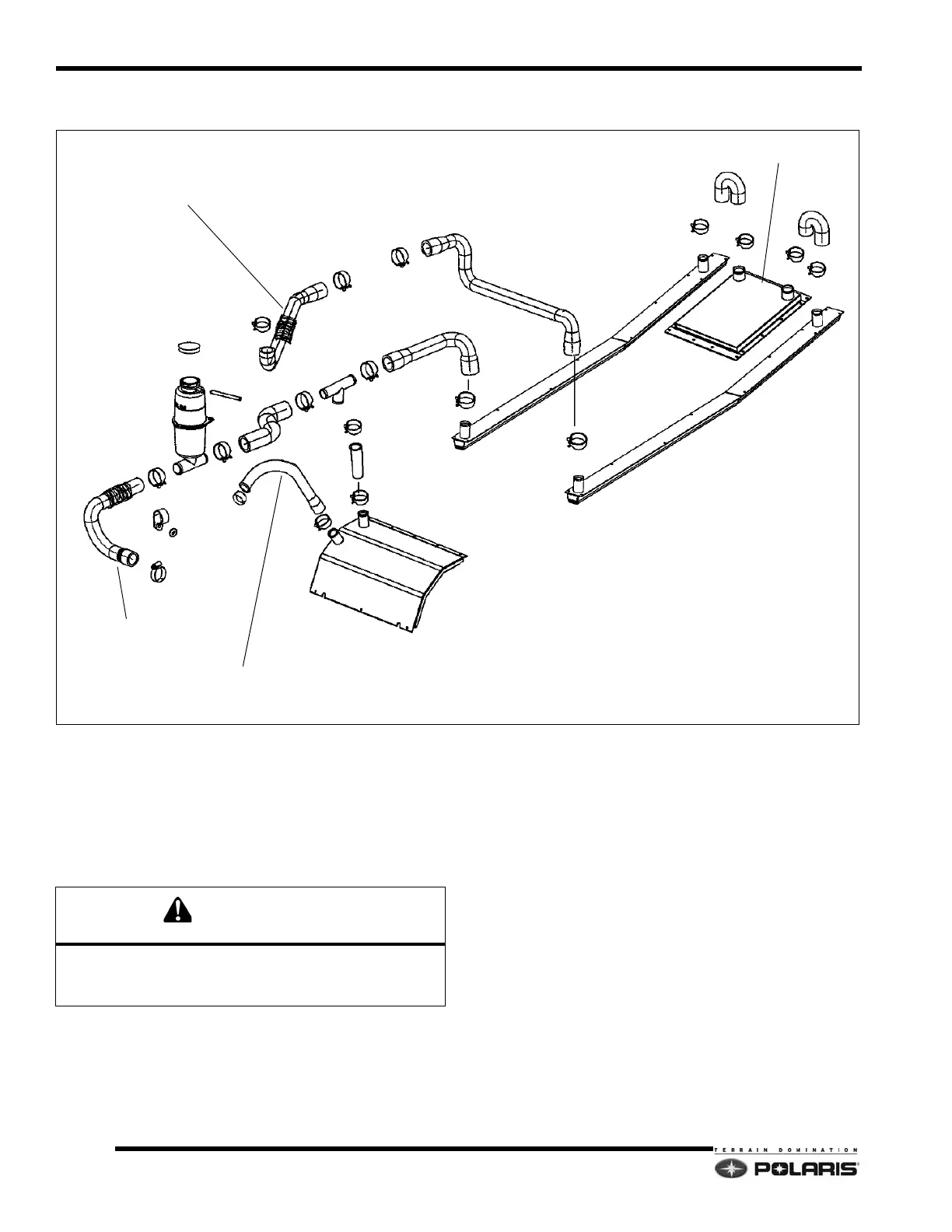

500 XCSP Cooling System
Surge Tank
Keep the level of the coolant inside the surge tank
between high and low marks. Coolant level will rise and fall
depending on the coolant temperature.
Always add coolant when the cooling system is COLD.
FRONT HEAT EXCHANGER
LEFT HEAT EXCHANGER
COOLANT HOSE
(FLOW = TO ENGINE)
BRAKE CALIPER
SURGE TANK
COOLANT HOSE
(FLOW = ENGINE OUT - THERMOSTAT OPEN)
RIGHT HEAT EXCHANGER
REAR HEAT EXCHANGER
COOLANT HOSE
(FLOW = ENGINE OUT - BYPASS CIRCUIT
Never remove the fill tube pressure cap when the cooling
system is warm. Severe burns to skin may occur from
escaping coolant or steam.
