Polaris 340 LX 2007 - Rear Suspension Assembly Illustrations

8.16
Steering and Suspension Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

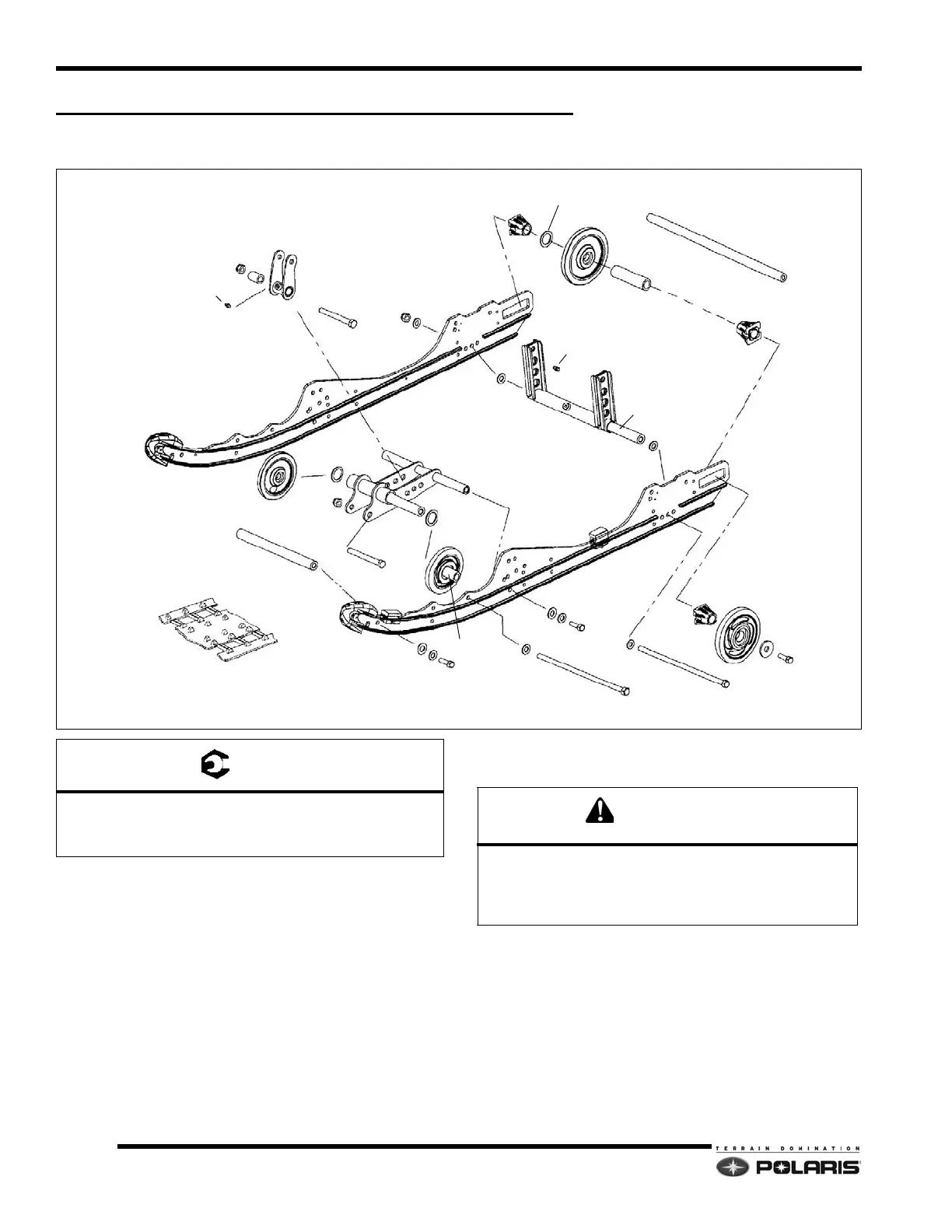

REAR SUSPENSION ASSEMBLY ILLUSTRATIONS
EDGE 121 Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
SHOCK PIVOT
IDLER SHAFT
SHAFT
H BRACKET
REAR PIVOT SHAFT
SHAFT
SPACER
WASHER
SPACER
GREASE ZERK
GREASE ZERK
B
A
B
C - Both
Sides
B
B
A
= T
A = 45 Ft.Lbs.
B = 35 Ft.Lbs.
C = 36 Ft.Lbs.
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
