8.7
Steering and Suspension Systems
8
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
Front Suspension Alignment Bar
An alignment bar, PN 5333508, is required to center the
handlebars, set the maximum width, and adjust camber.
Technicians wanting to fabricate their own alignment bar
must adhere to the following specifications:
• DIAMETER:.623”-.625” (15.824-15.875mm)
• LENGTH: 45” (114.3cm)
• MATERIAL: C-1018

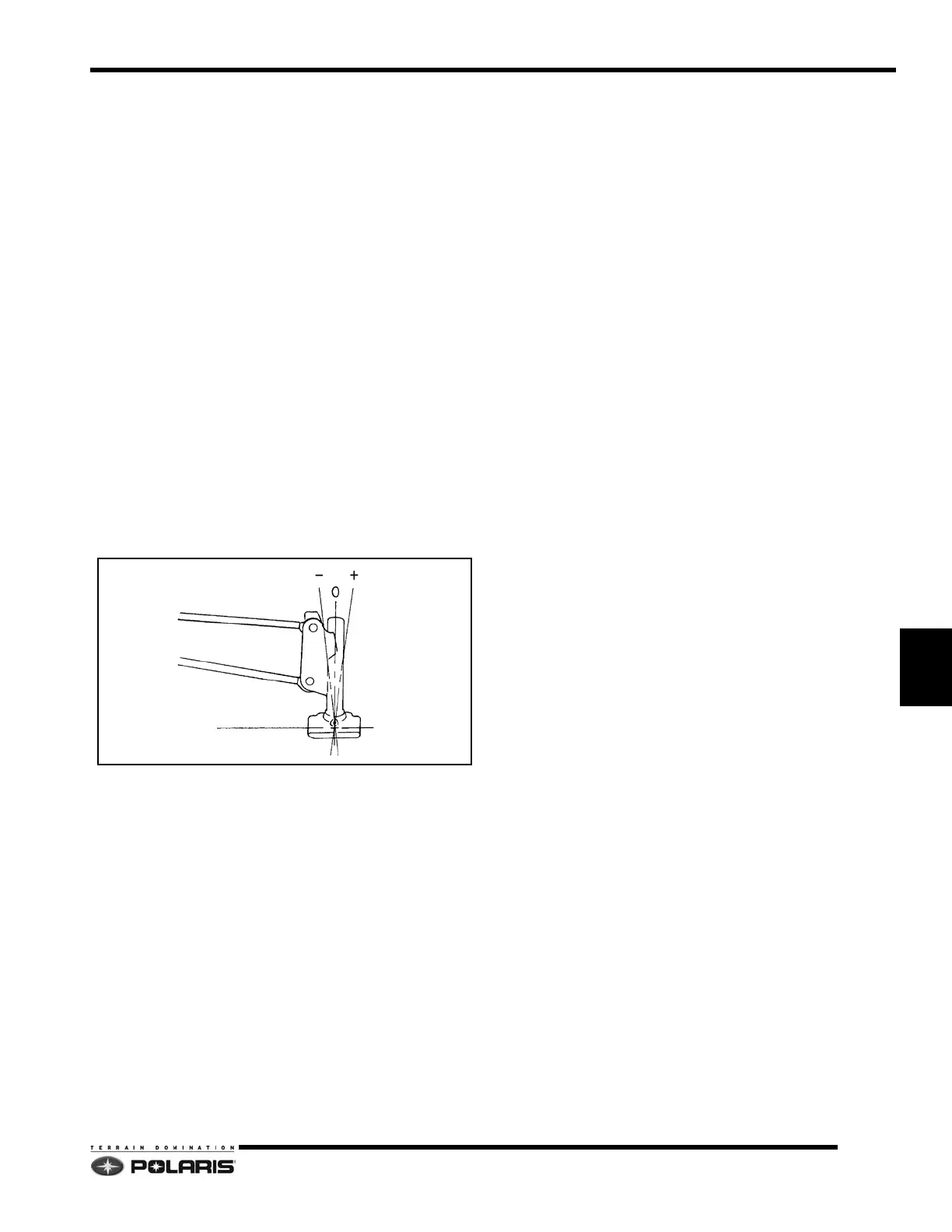

Camber
The following definitions of camber use automotive
terminology to describe positive and negative positions.
• 0 = Neutral camber. The spindle is 90°
(perpendicular) to the ground.
• + = Positive camber. The bottom of the spindle is
canted inward toward the chassis.
• - = Negative camber. Spindle bottom is canted
outward from the chassis.
