3.13
Maintenance
3
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

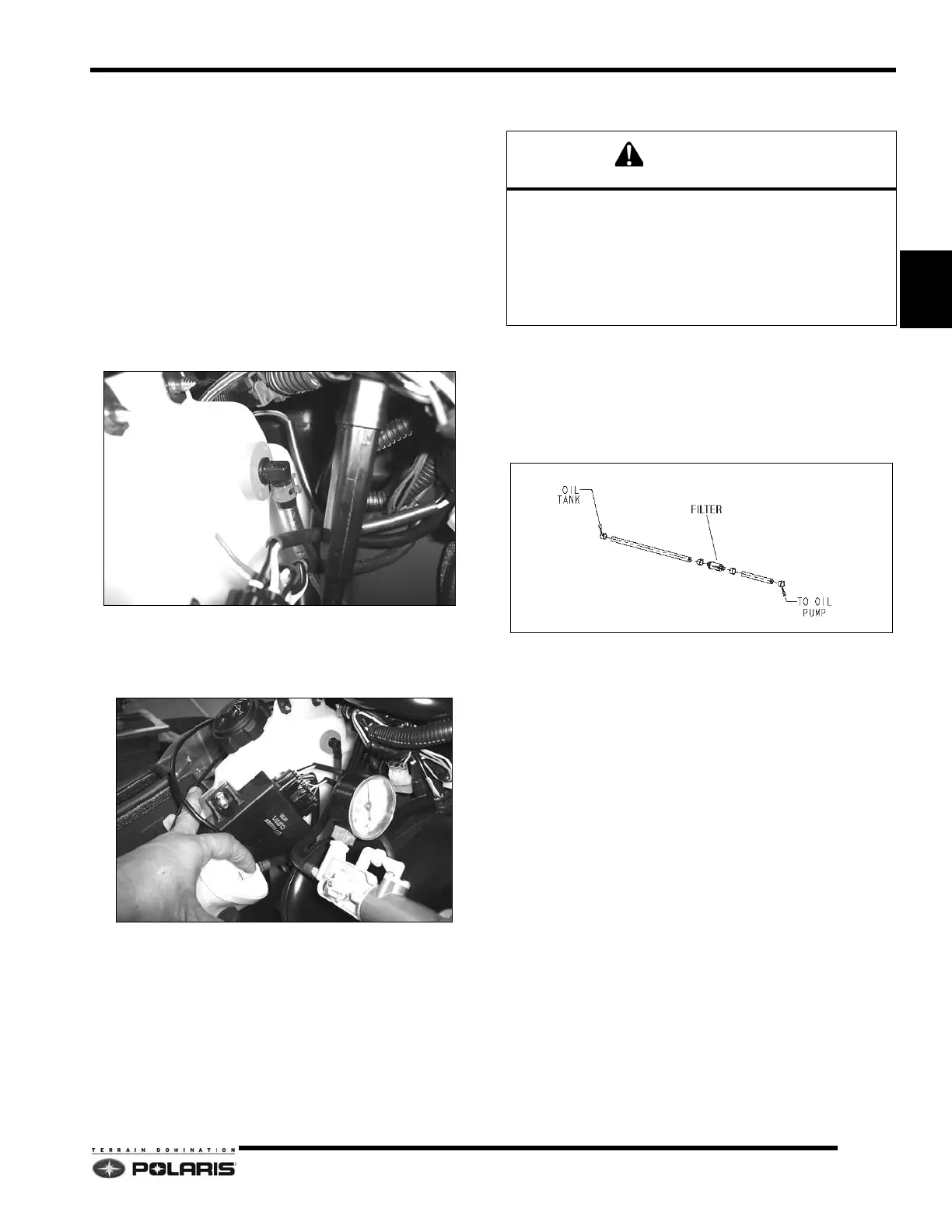

Oil Pump Bleeding - 550 Engines with Auto
Bleed
1. Large pockets of air can be purged from the oil hoses
by using a Mity Vac hand pump if desired.
NOTE: THE ENGINE WILL STILL RECEIVE THE
REQUIRED AMOUNT OF OIL WHILE RUNNING EVEN
WITH AIR TRAPPED IN THE SUPPLY HOSE.
FOLLOWING PROCEDURE SHOWN ON A 550 IQ OIL
TANK. PROCESS IS THE SAME ON EDGE OIL TANKS.
2. Remove the auto-bleed hose from the oil storage
tank. Connect a Mity Vac hand pump to the storage
tank fitting.
3. Place the end of the auto-bleed hose into a small cup
or container. Pressurize the storage tank with the
hand pump until oil begins to flow from the auto-bleed
hose.
4. To stop the flow of oil, loosen the oil tank cap.
5. Reinstall the auto-bleed hose on the tank fitting.
6. Pour the oil in the container into the storage tank.
Oil / Fuel Filter
• EDGE Models - The oil filter on EDGE models is
incorporated within the oil level sender unit. Filter
replacement requires sender replacement.
• Widetrak Models - The oil filter on Widetrak
models is an in-line type. The arrow on the filter
body indicates the oil flow.
All models feature a fuel pickup a with filter located inside
the fuel tank. To inspect and replace:
1. Remove the gas cap.
2. Use a coat hanger to carefully pickup the fuel hose
inside the tank.
3. Inspect and replace the pickup/filter at the end of the
hose.
The in tank fuel filter and fuel lines should be inspected
regularly. Special attention should be given to the fuel
line condition after periods of storage.
Normal deterioration from weather and fuel can occur
during this storage period. Do not damage fuel lines
when removing them. If a fuel line has been damaged or
kinked it must be replaced.
