8.19
Steering and Suspension Systems
8
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

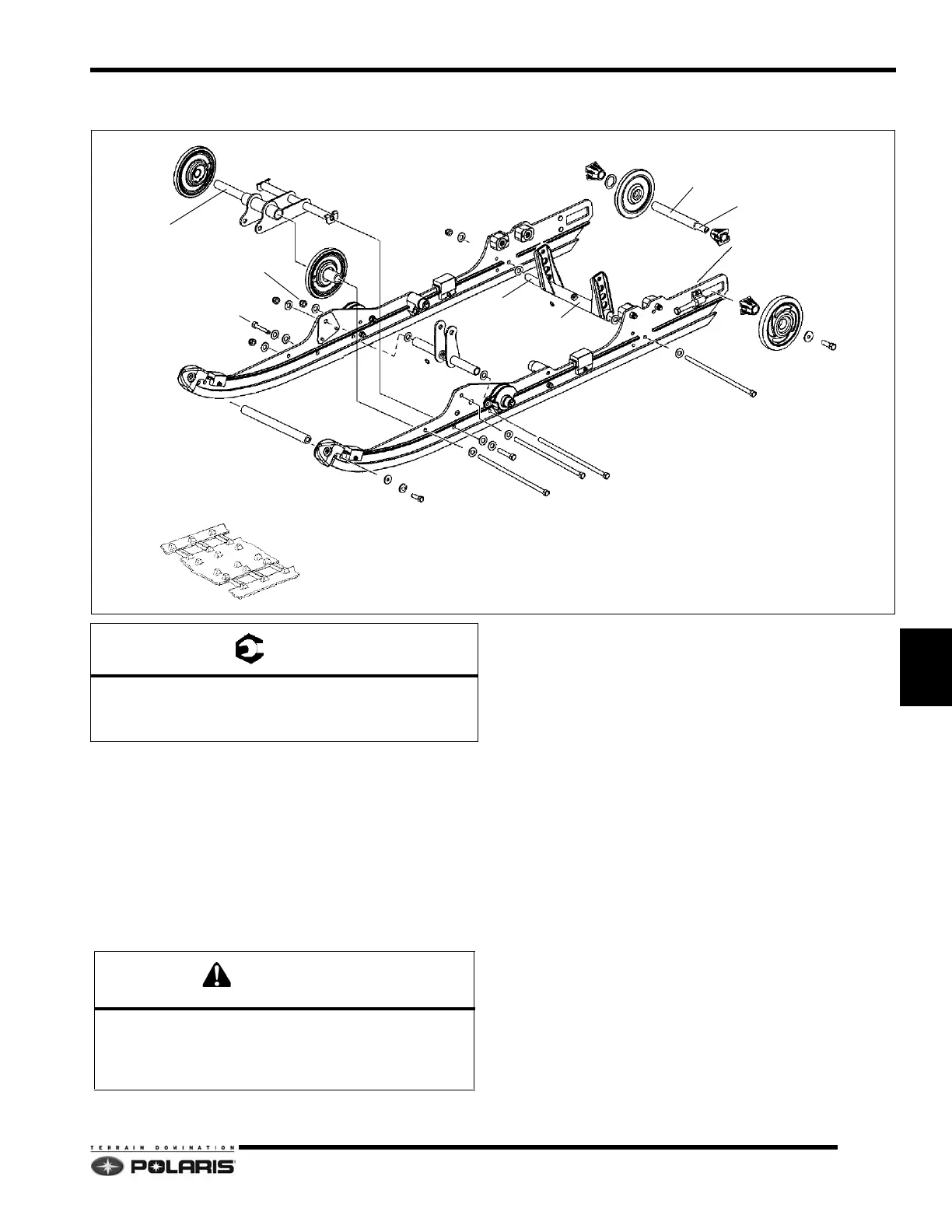

EDGE 136 Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts fasteners with locking
agent. Always replace with new parts.
• All pivots must rotate freely after tightening
fasteners.
• Apply Polaris Premium All Season Grease to all
grease zerks as outlined in the maintenance table.
H BRACKET
SHAFT
SHOCK PIVOT
REAR PIVOT
SHAFT
SPACER
SHAFT
SHAFT
A
B
B
A
A
C (Shock Pivot Shaft)
B
B
A = 45 Ft.Lbs.
B = 35 Ft.Lbs.
C = 19 Ft.Lbs.
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners when mounting
the suspension to the tunnel.
