9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
3.67

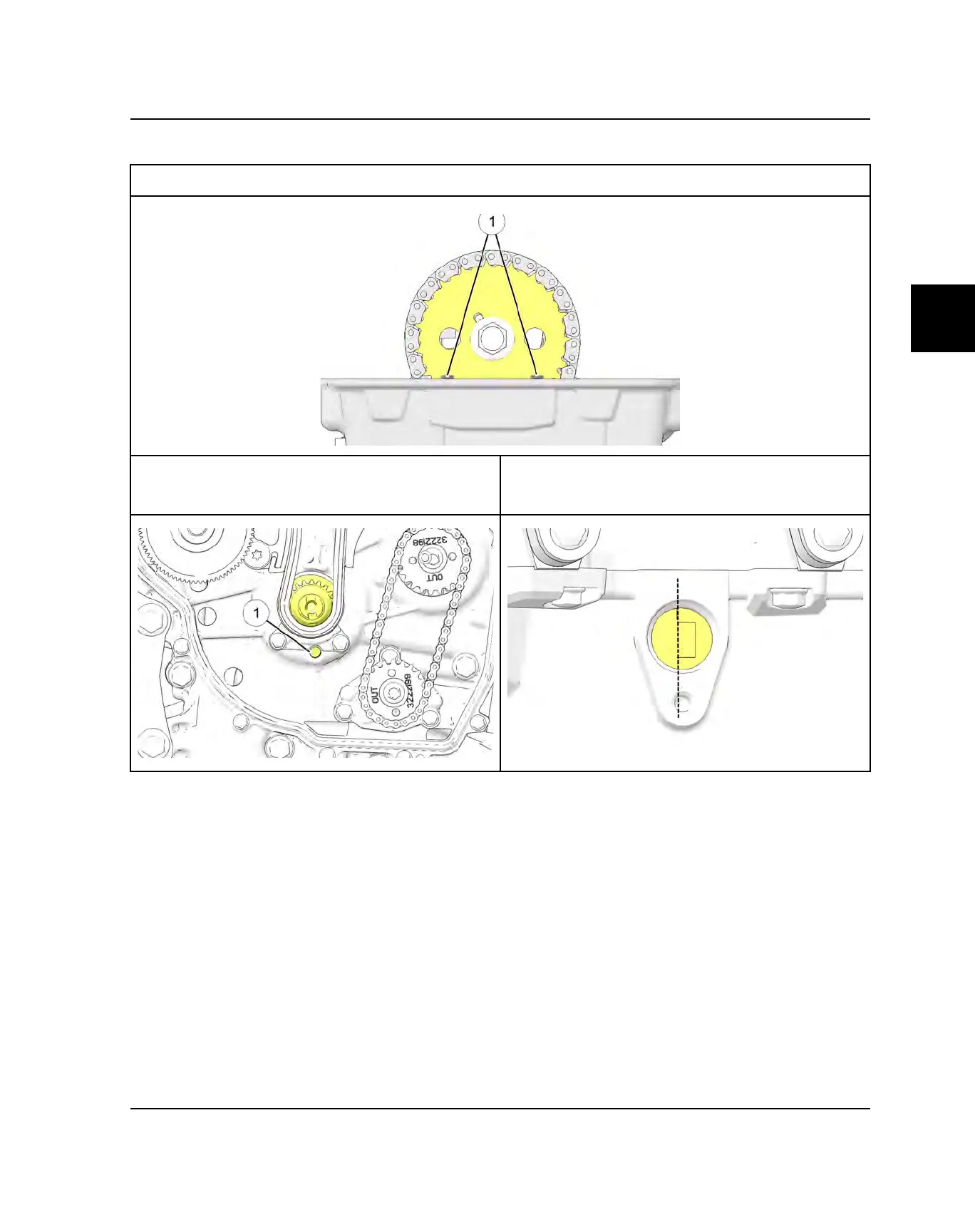

CAMSHAFT TIMING - QUICK REFERENCE
The camshaft sprocket should have notch marks
q
aligned with gasket surface.
Stator Cover/Flywheel Removed. Flywheel Key faces
down and insert a 1/4” drive socket extension through
the crankcase and into the crankshaft locating hole
q
.
Stator Cover/Flywheel Installed. “V” marked on the
flywheel is aligned with the CPS mounting hole.
ENGINE / COOLING SYSTEM
