6.10
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

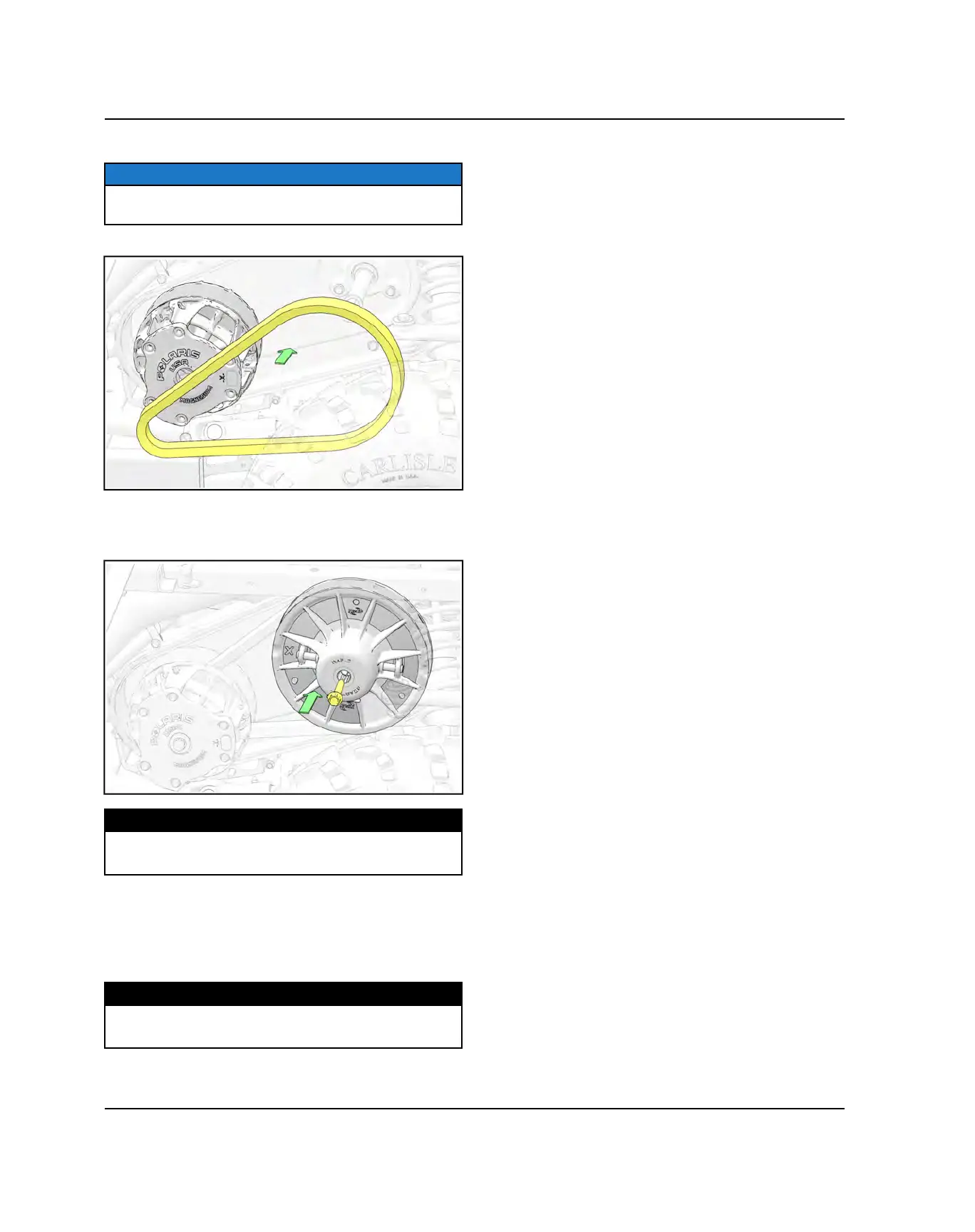

BELT INSTALLATION
NOTICE
Be sure to install belt in the same direction as it was
removed.
1. Install the belt on the vehicle.
2. Reinstall the outer sheave.
3. Reinstall the driven clutch mounting bolt. Torque to
specification.
TORQUE
Driven Clutch Mounting Bolt
38 ft-lbs (51.5 Nm)
4. Rotate / spin the driven clutch and belt approximately
5-7 times to properly seat the belt in the driven
clutch.
5. Install the outer clutch cover and (8) screws. Torque
screws to specification.
TORQUE
Outer Clutch Cover Retaining Screws:
50 in-lbs (5 Nm)
PVT BREAK-IN (DRIVE BELT /
CLUTCHES)
A proper break-in of the clutches and drive belt will
ensure a longer life and better performance. Break in the
clutches and drive belt by operating at slower speeds
during the 10 hour break-in period as recommended (see
Chapter 3 “Engine Break-In Period” for break-in
example). Pull only light loads. Avoid aggressive
acceleration and high speed operation during the break-
in period.
PVT SYSTEM
