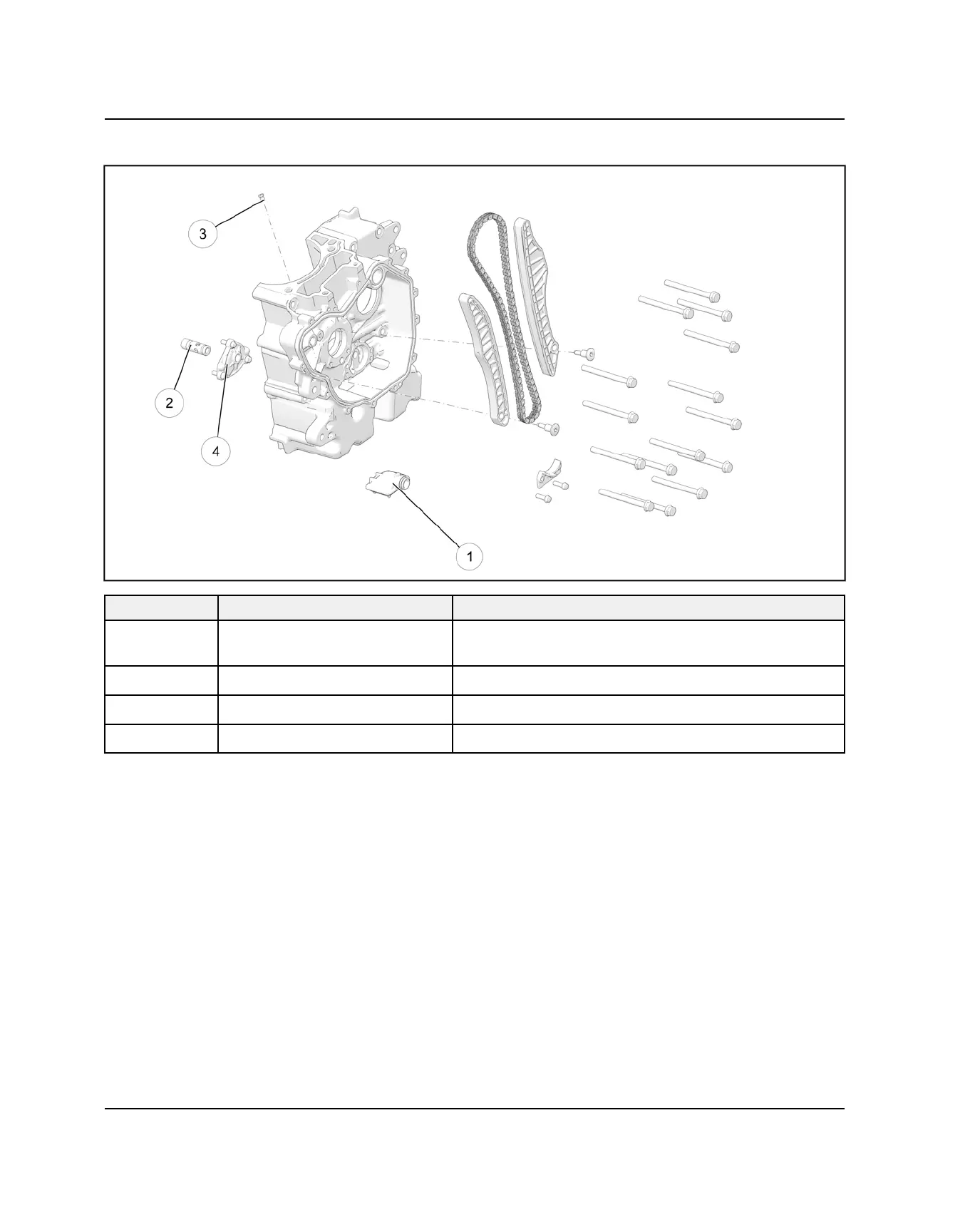

CRANKCASE / TIMING CHAIN GUIDES / OIL PICKUP / REGULATOR VALVE
REF.
DESCRIPTION NOTES
q
Oil Pickup Install until fully seated in bore/hole.
Engine oil may be used to aid installation.
w
Oil Pressure Regulator Assembly Torque: 20 ft-lbs (12 Nm)
e
Piston Oil Jet Torque: 35–in-lbs (4 Nm)
r
Oil Pump Cover Torque: 106 in-lbs (12 Nm)
