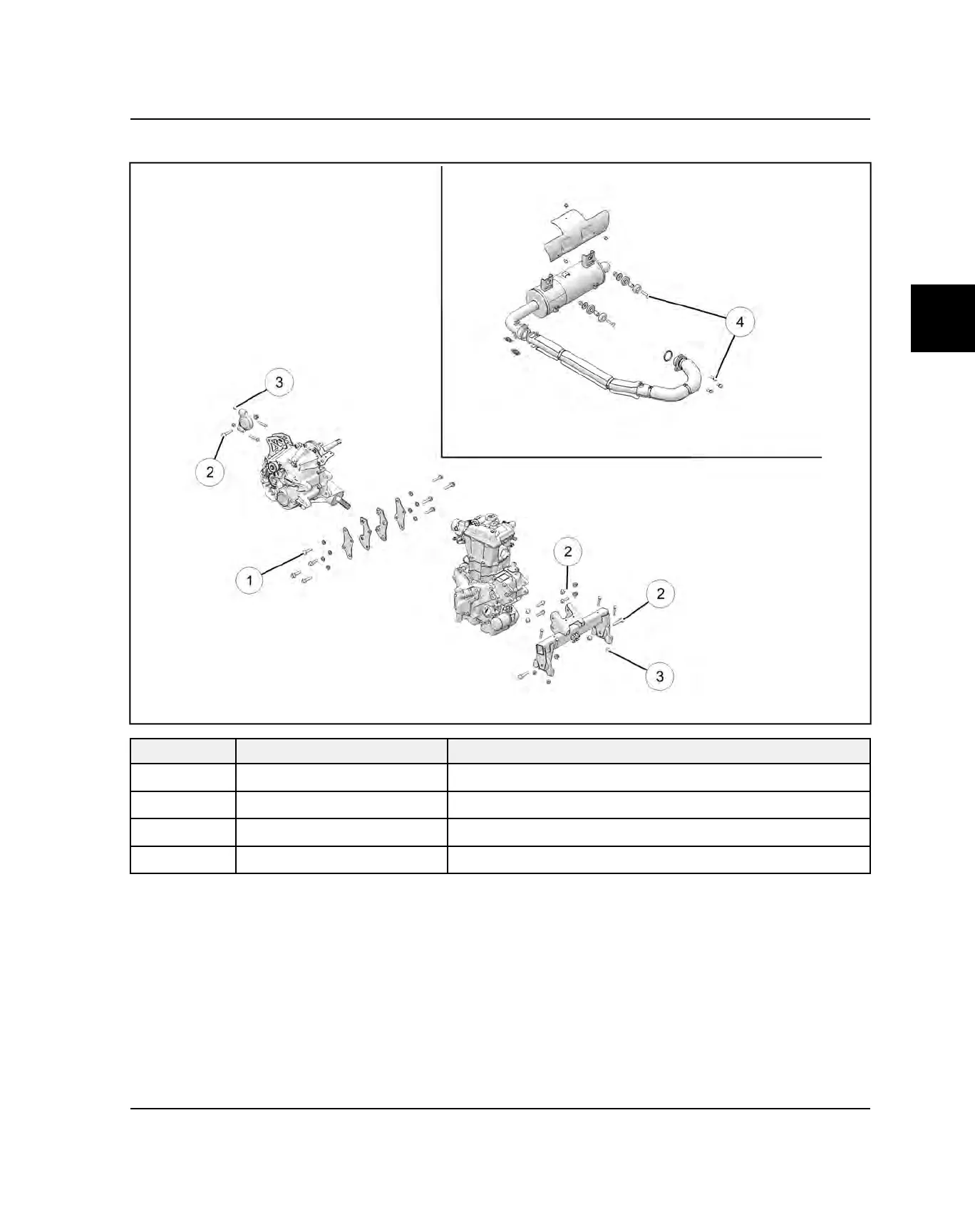

ENGINE MOUNTING AND TORQUE VALUES
REF.
DESCRIPTION NOTES
q
Bolt
Torque to 55 ft-lbs (75 Nm)
w
Bolt
Torque to 40 ft-lbs (54 Nm)
e
Nut
Torque to 25 ft-lbs (34 Nm)
r
Bolt
Torque to 18 ft-lbs (25 Nm)
ENGINE / COOLING SYSTEM
