Polaris RANGER 570 2020

8.12
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
FRONT GEARCASE (NON-ADC)

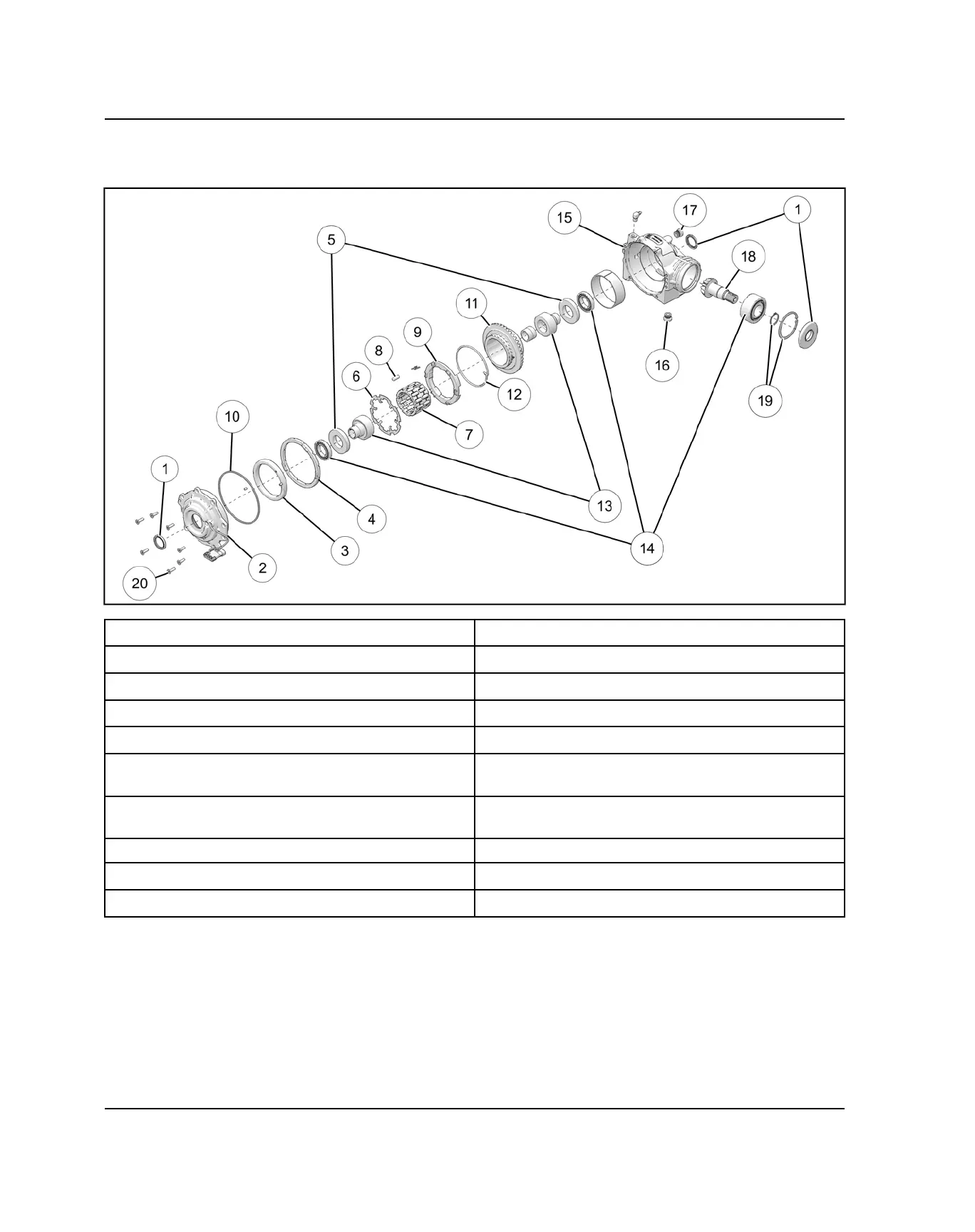

FRONT GEARCASE ASSEMBLY VIEW
q
Seal
s
Ring Gear
w
Cover Plate d
Spring
e
AWD Coil
f
Output Hub
r
Backlash Spacer
g
Bearing
t
Nylon Spacer
h
Gearcase Housing
y
Armature Plate
j
Drain Plug
10 ft-lbs (14 N·m)
u
Roller Cage
k
Fill / Check Plug
10 ft-lbs (14 N·m)
i
Roller
l
Pinion Gear
o
Spring Retainer
1(
Snap Ring
a
O-ring
2)
Cover Plate Screws
FINAL DRIVE
