Polaris RANGER 570 2020

10
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
10.29
REAR CALIPERS

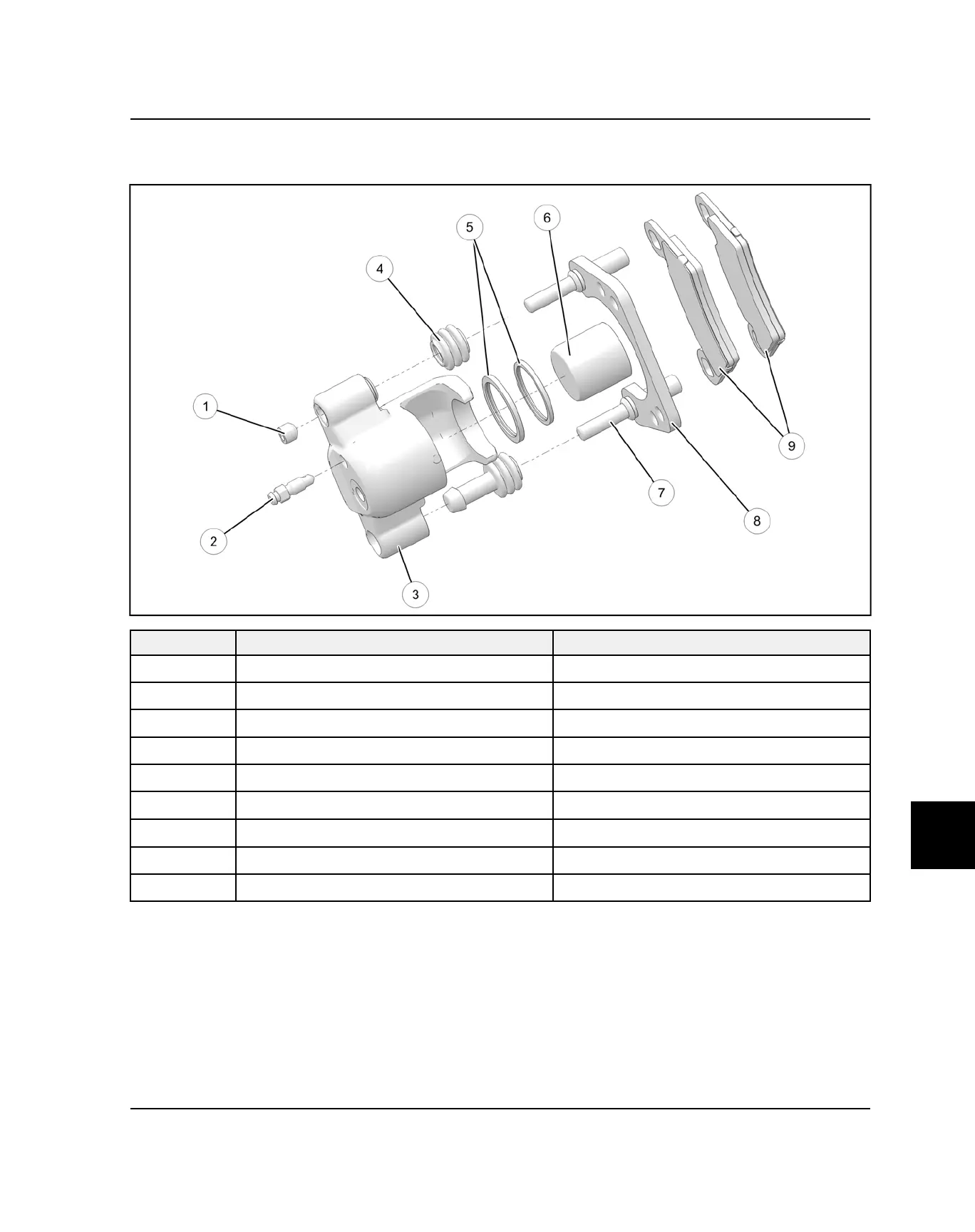

CALIPER ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Socket Set Screw
w
Bleeder Screw 47 in-lbs (5.3 Nm)
e
Caliper Assembly
r
Dust Boots
t
Square O-Rings Apply Polaris DOT 4 Brake Fluid
y
Piston
Apply Polaris DOT 4 Brake Fluid
u
Caliper Pins Apply Disc Brake Caliper Lube
i
Caliper Mount
o
Brake Pads
BRAKE SYSTEM
