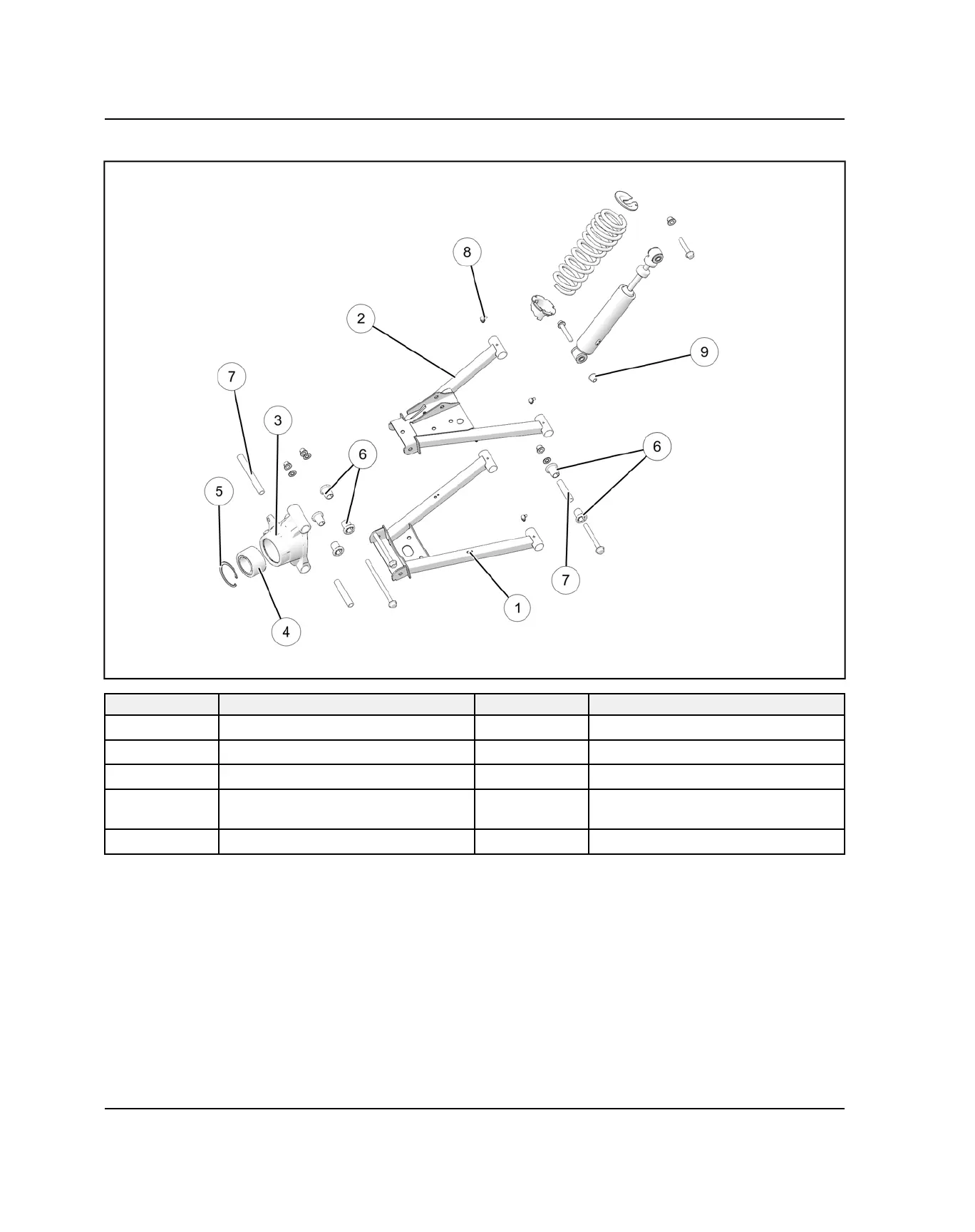

ASSEMBLY VIEW
REF DESCRIPTION REF DESCRIPTION
q
Lower A-Arm
y
Bushing
w
Upper A-Arm
u
Pin
e
Bearing Carrier
i
Grease Zerk
r
Wheel Bearing
o
Nuts
40 ft-lbs (54 Nm)
t
Snap Ring
STEERING / SUSPENSION
