CREW

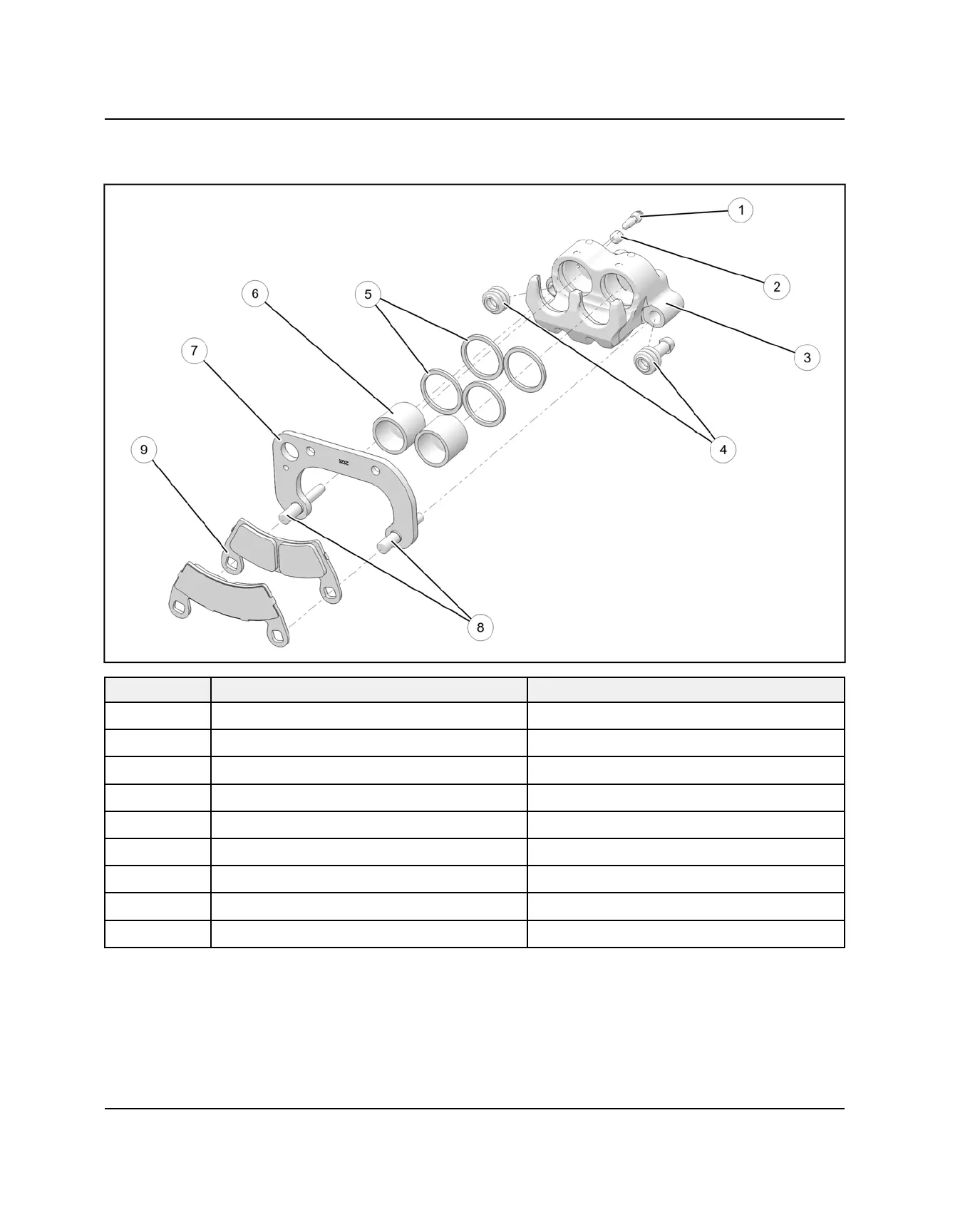

FRONT CALIPER ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Bleeder Screw 47 in-lbs (5.3 Nm)
w
Socket Set Screw
e
Caliper Assembly
r
Dust Boots
t
Square O-Rings Apply Polaris DOT 4 Brake Fluid
y
Piston
u
Caliper Mount
i
Caliper Pins Apply Disc Brake Caliper Lube
o
Brake Pads
BRAKE SYSTEM
