9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
8.15

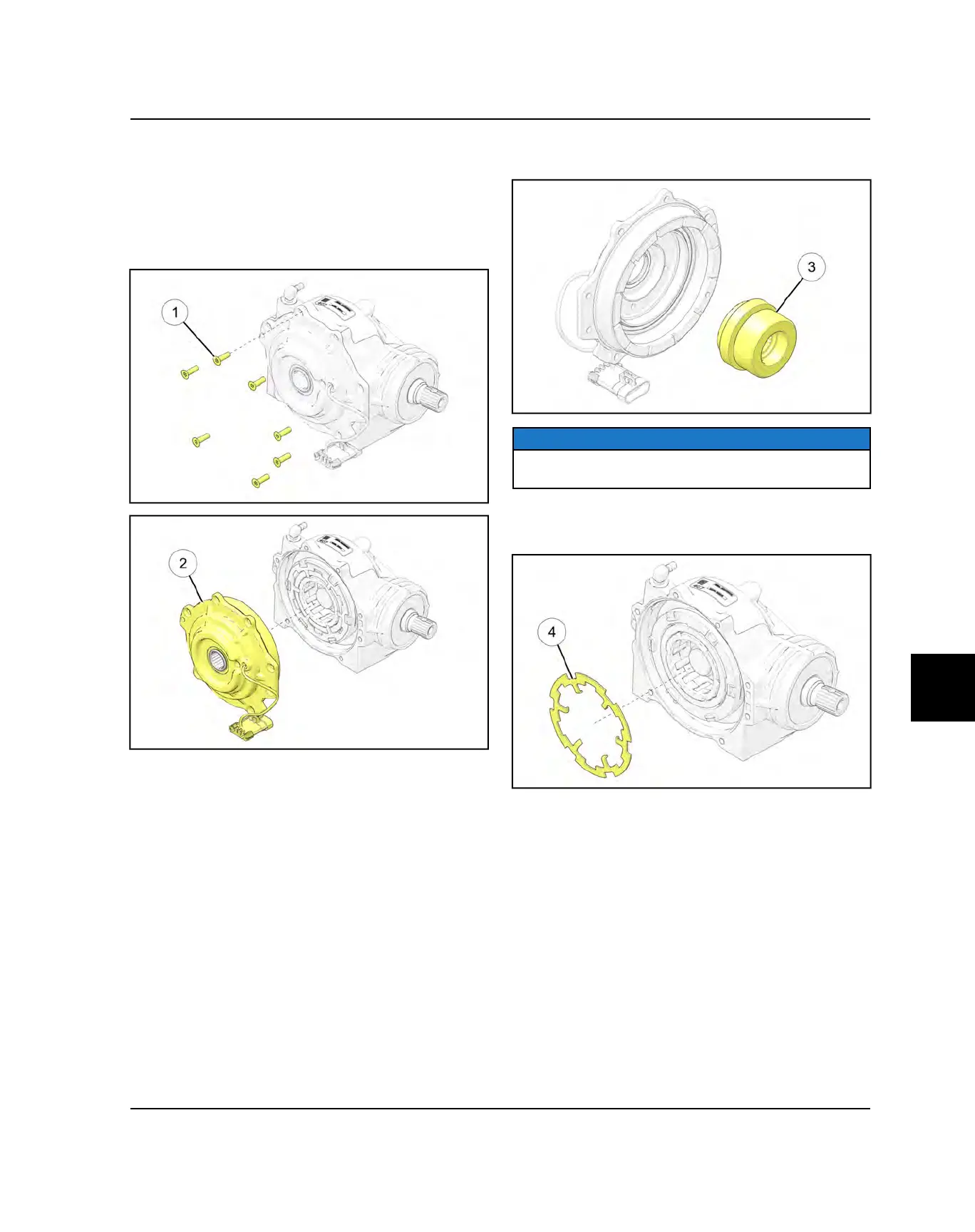

FRONT GEARCASE DISASSEMBLY /
INSPECTION
1. Drain and properly dispose of gearcase fluid.
Remove any metal particles from the drain plug
magnet.
2. Remove the seven cover screws
q
and remove the
cover plate
w
assembly.
3. Remove the LH output hub assembly
e
from the
clutch housing or outer cover plate assembly.
NOTICE
Nylon spacer is non-serviceable and should not be
removed.
4. Remove and inspect the armature plate
r
. Refer to
AWD Diagnosis page 8.14 for detailed inspection
process.
FINAL DRIVE
