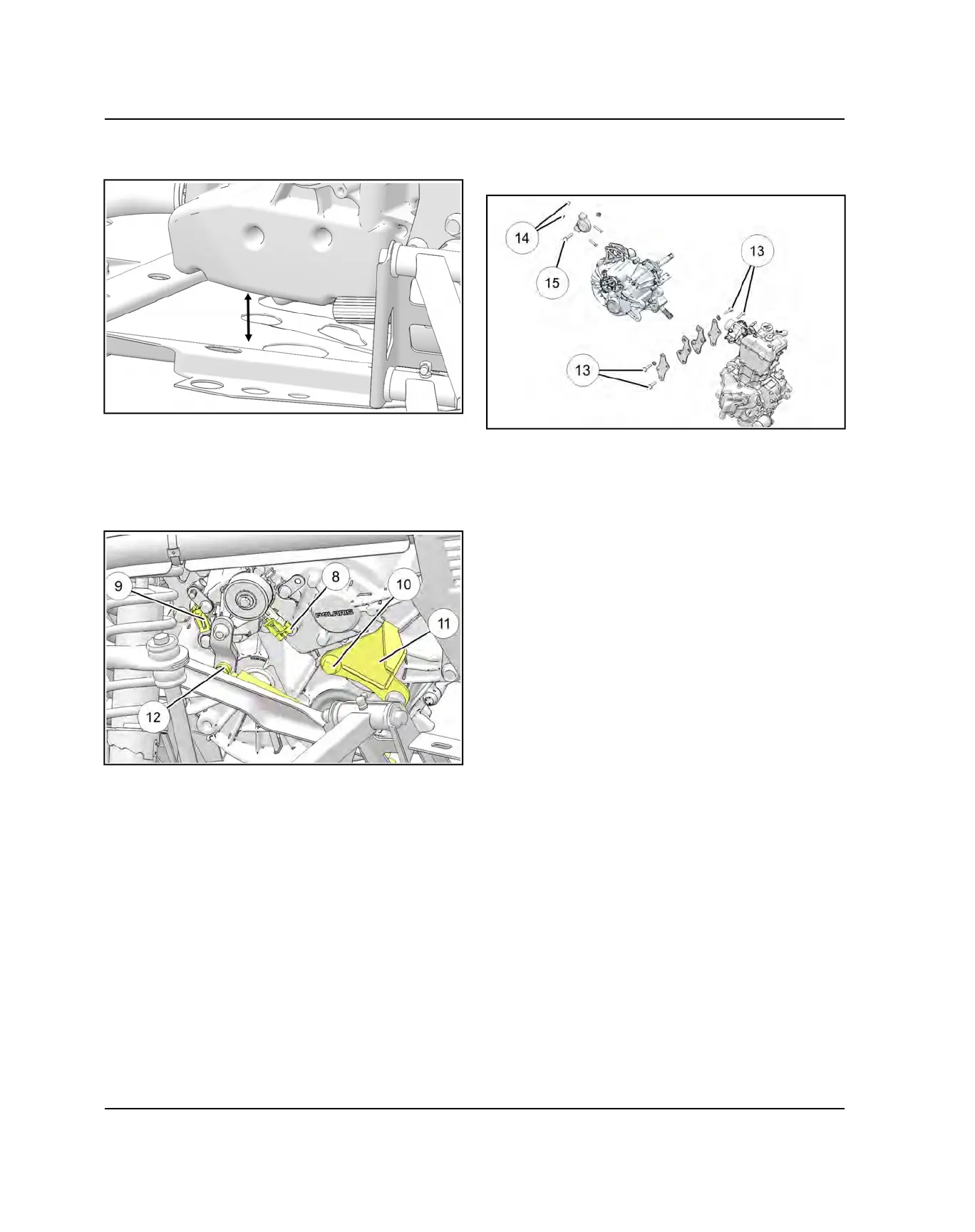

13. Place a spacer or support between the vehicle frame
and engine to hold the engine up in position.
14. Remove vent hose from transmission.
15. Remove the gear position switch connector (Item 8),
speed sensor connector (Item 9), crankshaft position
sensor connector, shift bracket bolts (Item 10) and
shift bracket (Item 11), shift cable clevis pin and
washer (Item 12) from the transmission.
16. Remove the wire ties retaining the main harness
harness to transmission and mounts.
17. Using a 15mm socket, remove the four bolts (Item
13) from the coupler securing the transmission to the
engine.
18. Remove the two bolts (Item 14) attaching the rear
transmission mount bracket assembly to the frame.
Remove the bolt (Item 15) that attaches the rear
mount to the transmission. Remove the mount
assemblies from the vehicle.
19. Using an overhead lift or an assistant, lift the
transmission up and out of the chassis.
