9.12
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

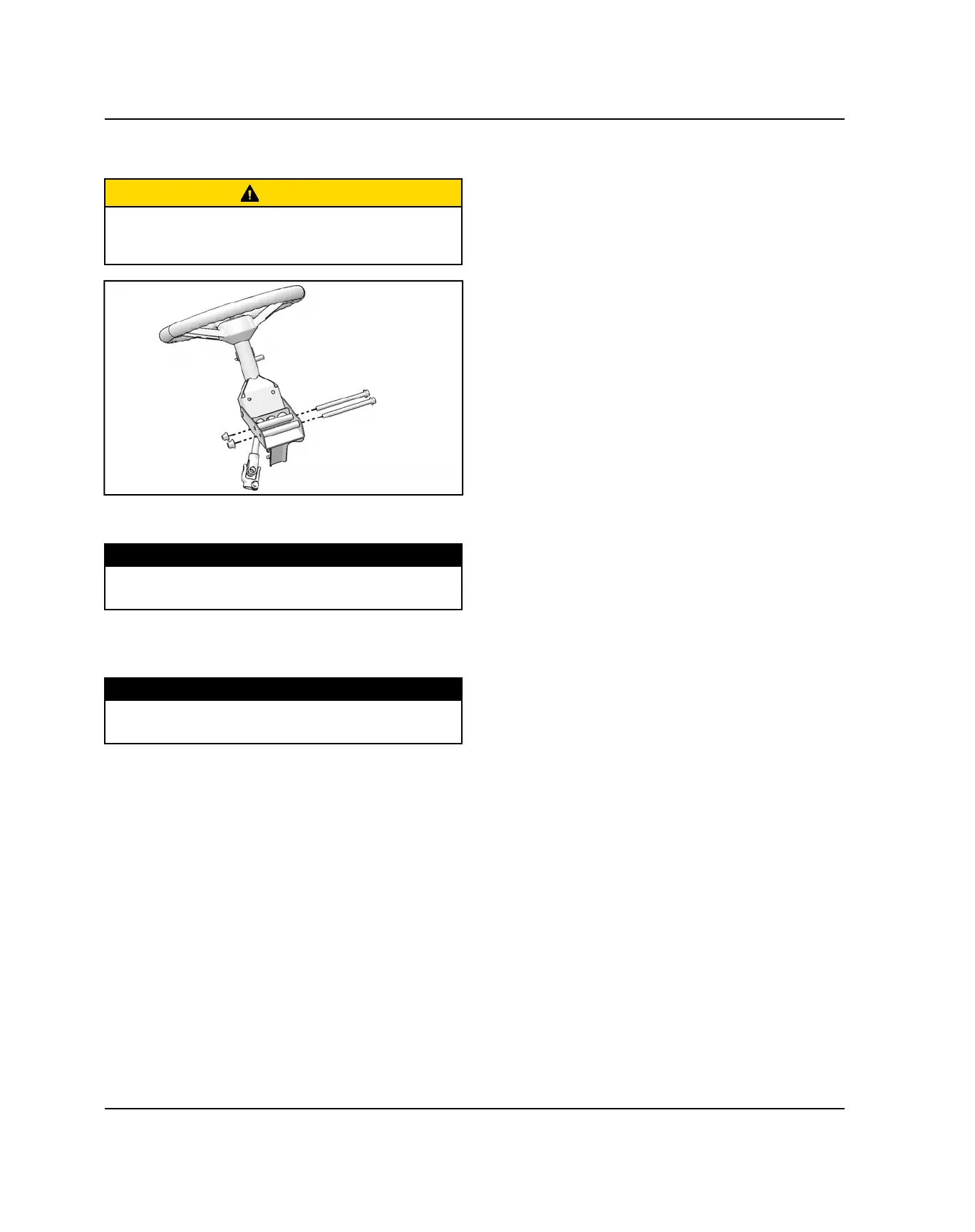

7. Loosely install the steering tilt assembly bolts and
nuts.
CAUTION
Striking the steering wheel or steering shaft can
permanently damage the EPS unit and cause a Power
Steering Fault.
8. Install the upper steering shaft pinch bolt and torque
to specification.
TORQUE
EPS Unit Pinch Bolts:
15 lb-ft (20 Nm)
9. Install the fastener retaining the steering wheel tilt
assembly to the frame. Torque fastener to
specification.
TORQUE
Steering Wheel Tilt Assembly Fasteners:
40 lb-ft (54 Nm)
10. Reconnect both electrical harnesses onto the power
steering unit. Be sure the connectors snap into place
and the wires are routed correctly.
11. Reinstall the upper and lower dash panels making
sure to reconnect the instrument cluster, both 12V
outlets and all the switches.
12. Turn the key switch on and test EPS operation.
STEERING / SUSPENSION
