5.8
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

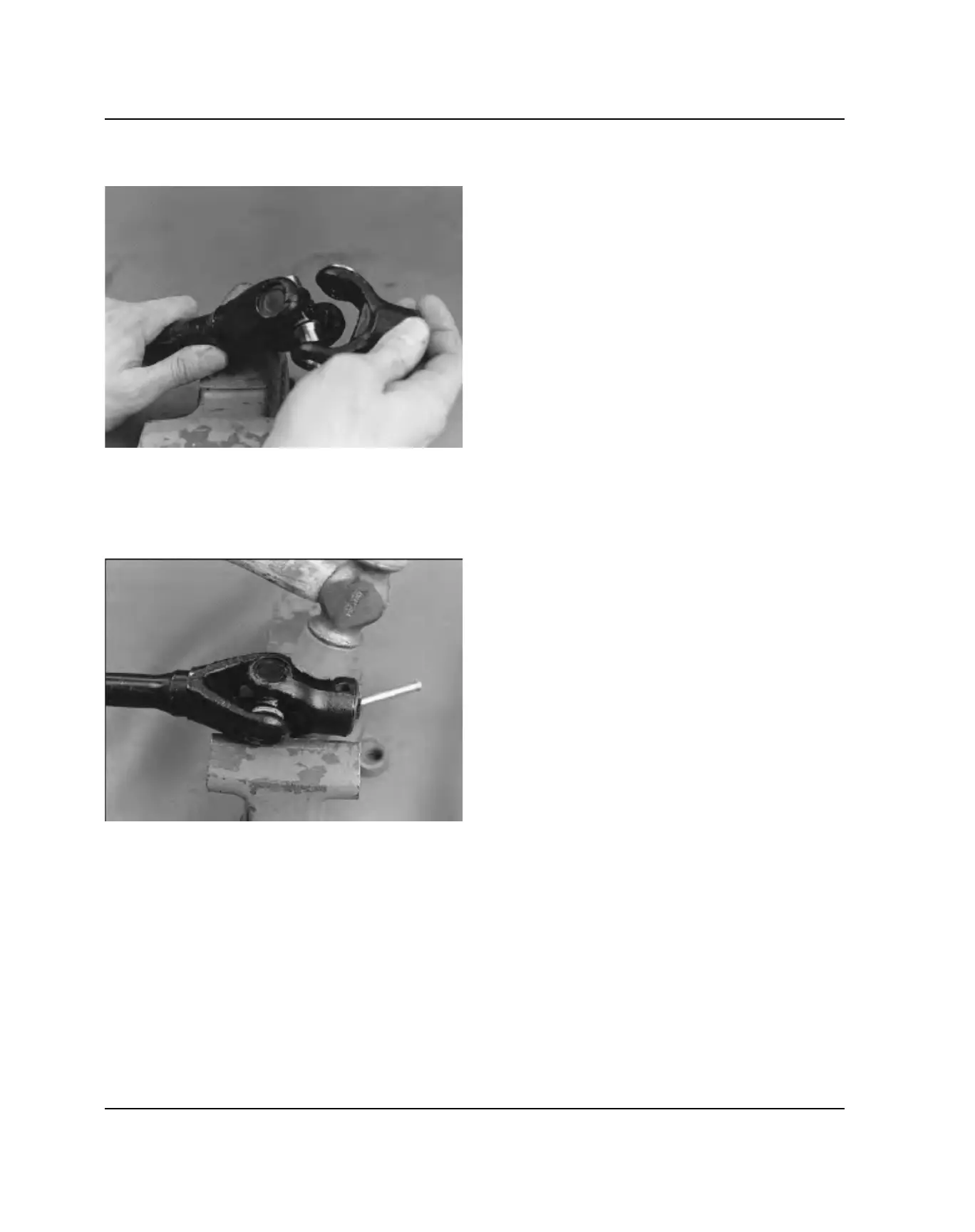

5. Install outer yoke, aligning marks made before
disassembly.
6. Repeat Steps 1-3 to install bearing caps on outer
yoke.
7. Seat all bearing caps against snap rings by
supporting cross shaft and tapping on each corner
as shown.
8. When installation is complete, yokes must pivot
freely in all directions without binding. If the joint is
stiff or binding, tap the yoke lightly to center the joint
until it pivots freely in all directions.
FINAL DRIVE
