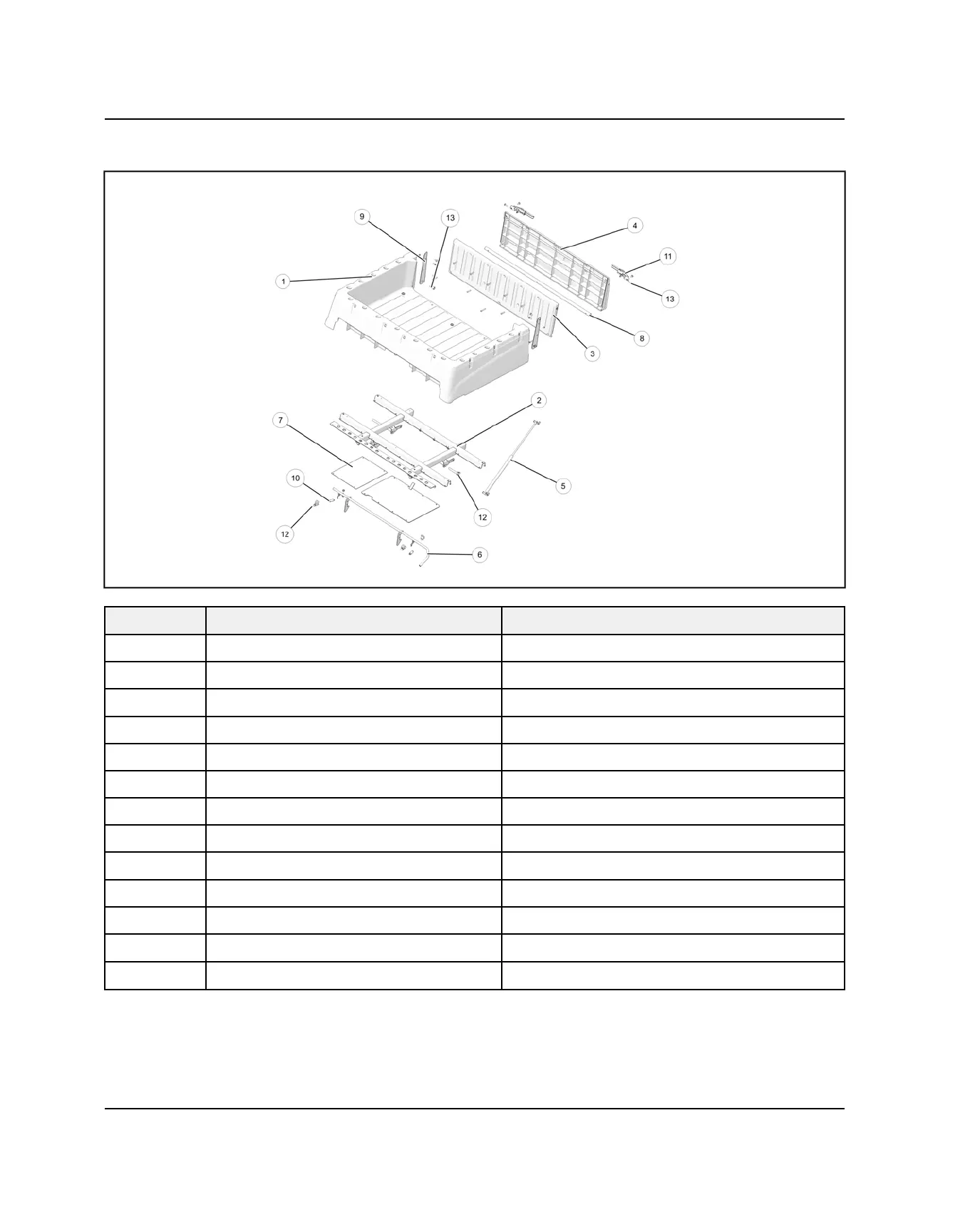

CARGO BOX / TAILGATE / CARGO BOX SUPPORT
NUMBER PART DESCRIPTION
TORQUE (IF APPLICABLE)
q
Cargo Box -
w
Box Frame
-
e
Tailgate Inner Panel -
r
Tailgate Outer Panel -
t
Box Tilt Shock
-
y
Box Tilt Latch
-
u
Heat Shield
-
i
Tailgate Tube -
o
Tailgate Mount Bracket -
a
Bushing -
s
Tailgate Latch -
d
Screw
8 ft-lb (11 Nm)
f
Screw
5 ft-lb (7 Nm)
