9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
1.25
BATTERY DISCHARGE AND TESTING
PROCEDURE
1. Remove seat and storage trays and open the cargo
box.
2. Torque all battery terminal nuts to specification
TORQUE
Battery Terminal Nuts: 8.0 ft-lbs (11.0 Nm)
3. Torque contactor nuts to specification.
TORQUE
Battery Contactor Nuts: 8.0 ft-lbs (11.0 Nm)
4. Fully charge the batteries. The dashboard indicator
light should be solid green.
5. Place the discharge unit on a foundation of concrete,
brick, stone, or grounded metal. Be sure area around
discharge unit is well ventilated for proper cooling air
flow, and the unit is at least 18 inches (46 cm) away
from walls or equipment.

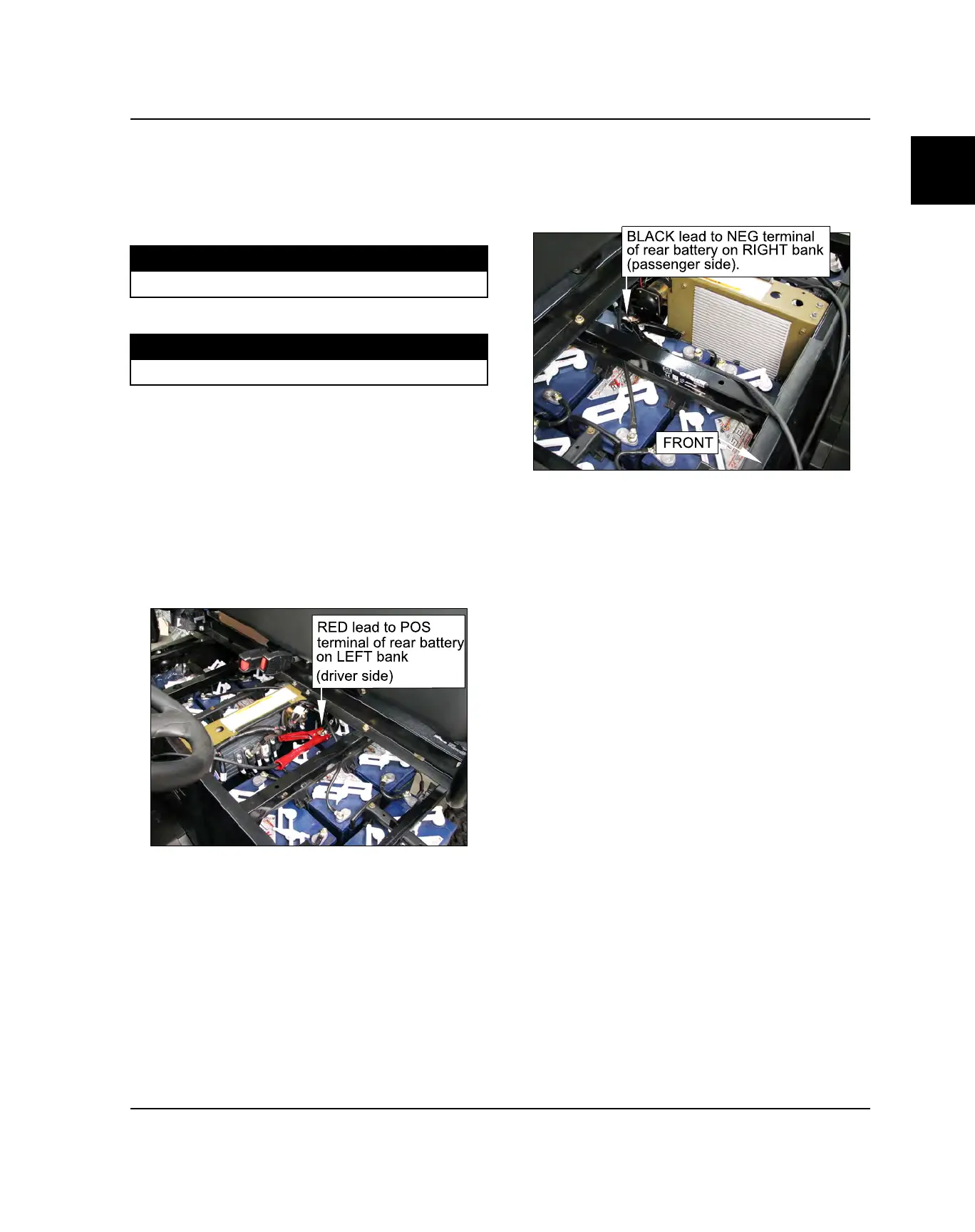

6. Connect the RED (+) cable of the discharger unit to
the positive terminal of the rear-most battery in the
LEFT bank (driver side) with the cable that leads to
the top terminal of Contactor).
7. Connect the BLACK (-) cable of the discharger unit
to the negative terminal of the rear-most battery in
the RIGHT bank (passenger side) with the cable that
leads to the negative (-) terminal of the Controller.
GENERAL / BATTERY
1
