Polaris RANGER EV 2016 User Manual

7.20
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

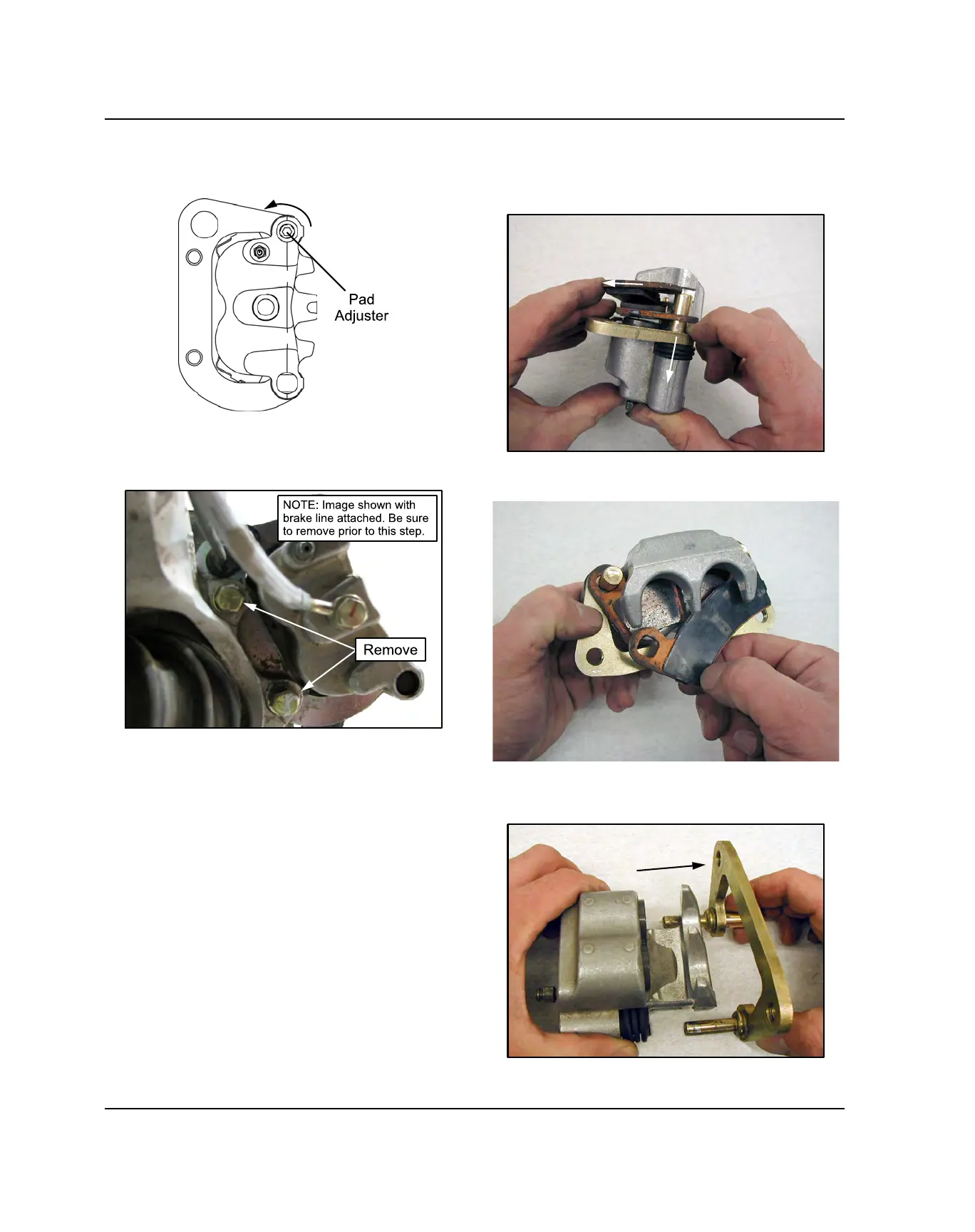

5. Loosen brake pad adjustment set screw 2-3 turns to
allow brake pad removal after the caliper is removed.
6. Remove the two caliper mounting bolts and remove
the caliper assembly from the front strut.
CALIPER DISASSEMBLY
1. Push brake pad retainer pin inward and slip brake
pads past the edge.
2. Remove both brake pads from the caliper.
3. Remove mounting bracket, pin assembly and dust
boot.
BRAKE SYSTEM
