REAR BEARING CARRIER
REAR BEARING CARRIER INSPECTION
1. Support the machine securely with rear wheels
elevated.
WARNING
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
2. Check the bearings for side play. Grasp the top and
bottom of the wheel or wheel hub and check for
movement.
3. If movement is detected, inspect wheel hub, hub
castle nut torque, and bearing condition. The tire
should rotate smoothly without binding or rough
spots.

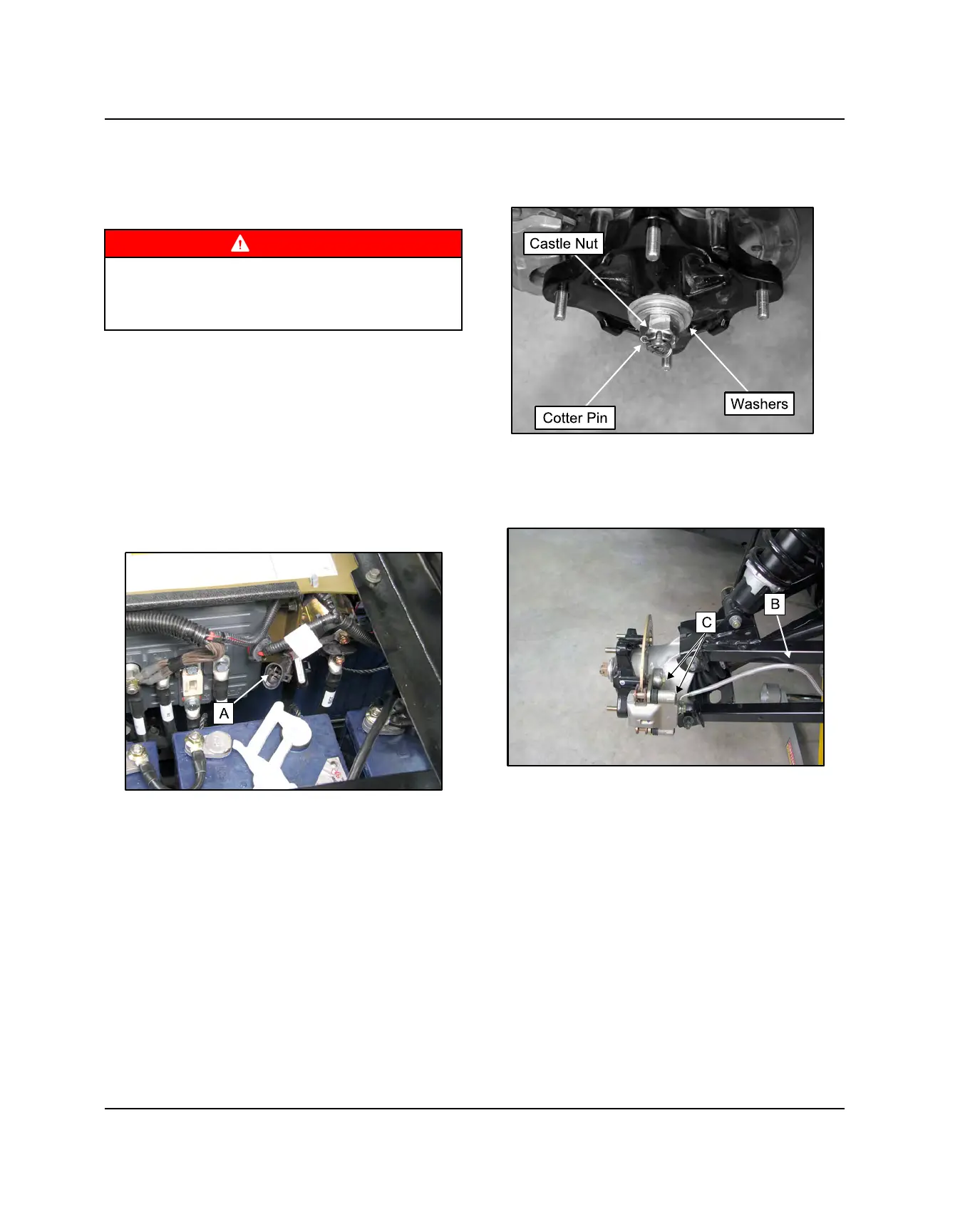

REAR BEARING CARRIER REMOVAL
1. Disconnect the Main Power Connector (A) under the
seat.
2. Elevate rear of vehicle and safely support.
3. Remove rear wheels.
4. Remove the cotter pin, castle nut and washers.
5. Release brake line from guide (B) on upper A-arm.
6. Remove two brake caliper mounting bolts (C) and
remove the caliper from the bearing carrier.
FINAL DRIVE
To Next Page
