9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.9

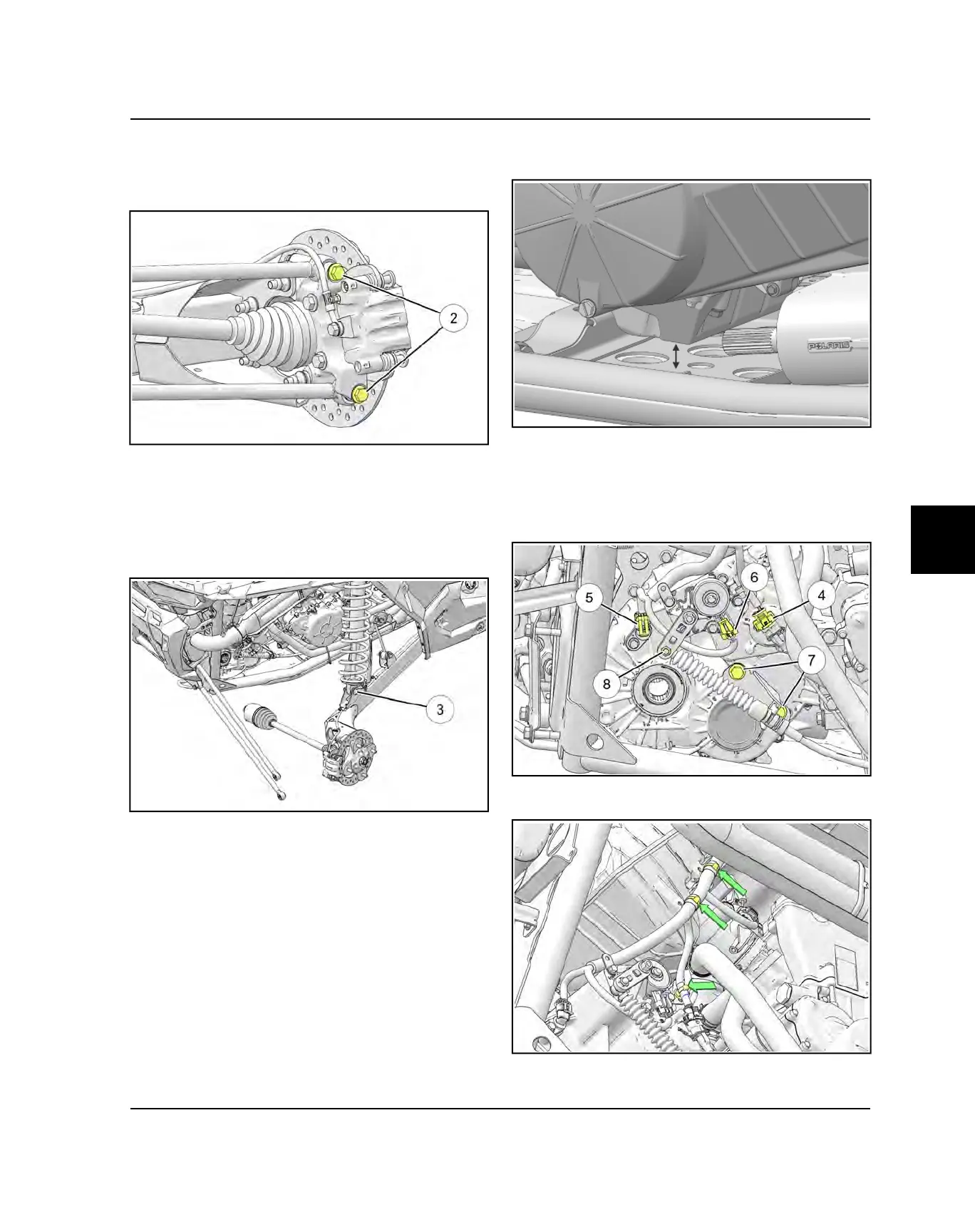

13. Remove the four bolts (
w
attaching the upper and
lower radius rods to the bearing carriers (left and
right side). Discard nuts and replace with new upon
assembly. Allow the radius rods swing downward.
14. Remove both lower shock bolts (left and right side)
while supporting the trailing arms from underneath.
Lift training arms up and swing trailing arms outward
to remove the drive shafts from the transmission.
15. Maneuver the drive shafts out of the vehicle frame.
Reinstall the lower shock bolts
e
to hold the trailing
arms up during the rest of the removal procedure.
16. Place a spacer or support between the vehicle frame
and engine to hold the engine up in position.
17. Remove vent hose from transmission.
18. Remove the gear position switch connector
y
,
speed sensor connector
t
, crankshaft position
sensor connector
r
, shift bracket bolts and shift
bracket
u
, shift cable clevis pin and washer
i
from
the transmission.
19. Remove the wire ties retaining harness to
transmission and mounts.
TRANSMISSION
