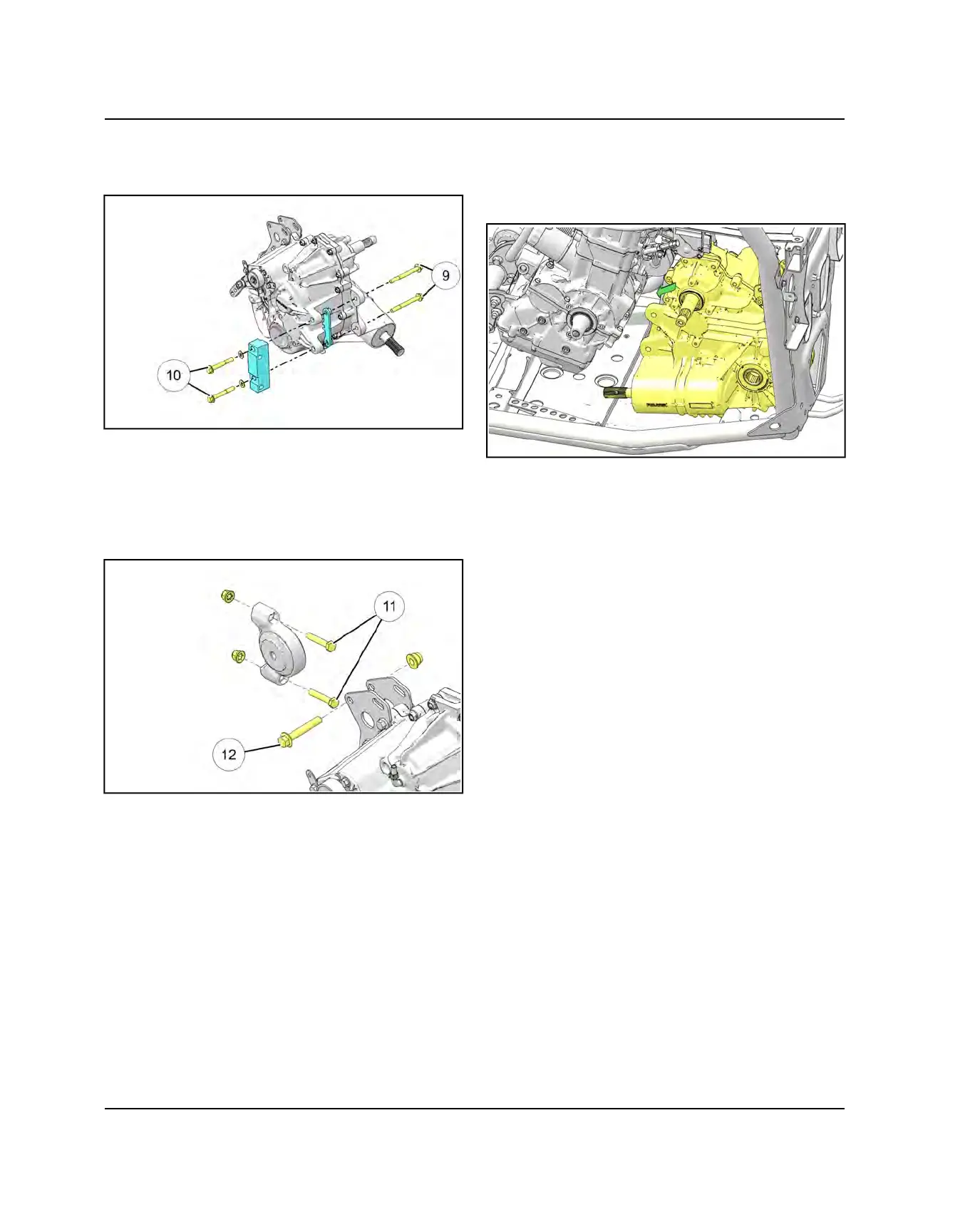

20. Using a 15mm socket, remove the four bolts from the
left side
o
and right side
a
, securing the
transmission to the engine.
21. Remove the two rear exhaust springs securing the
muffler to the rear transmission mounting bracket.
22. Remove the two fasteners
s
attaching the rear
transmission mount bracket assembly to the frame.
Remove the fasteners
d
that attach the rear mount
to the transmission. Remove the mount assembly
from the vehicle.
23. Slide transmission towards the rear of the vehicle.
Lift and rotate the top of the transmission towards the
left side of the vehicle. With the help of an assistant,
remove transmission from the left rear wheel well
area.
TRANSMISSION
