Polyaire Zonemaster Variable Air Volume - Configuration

Page 3

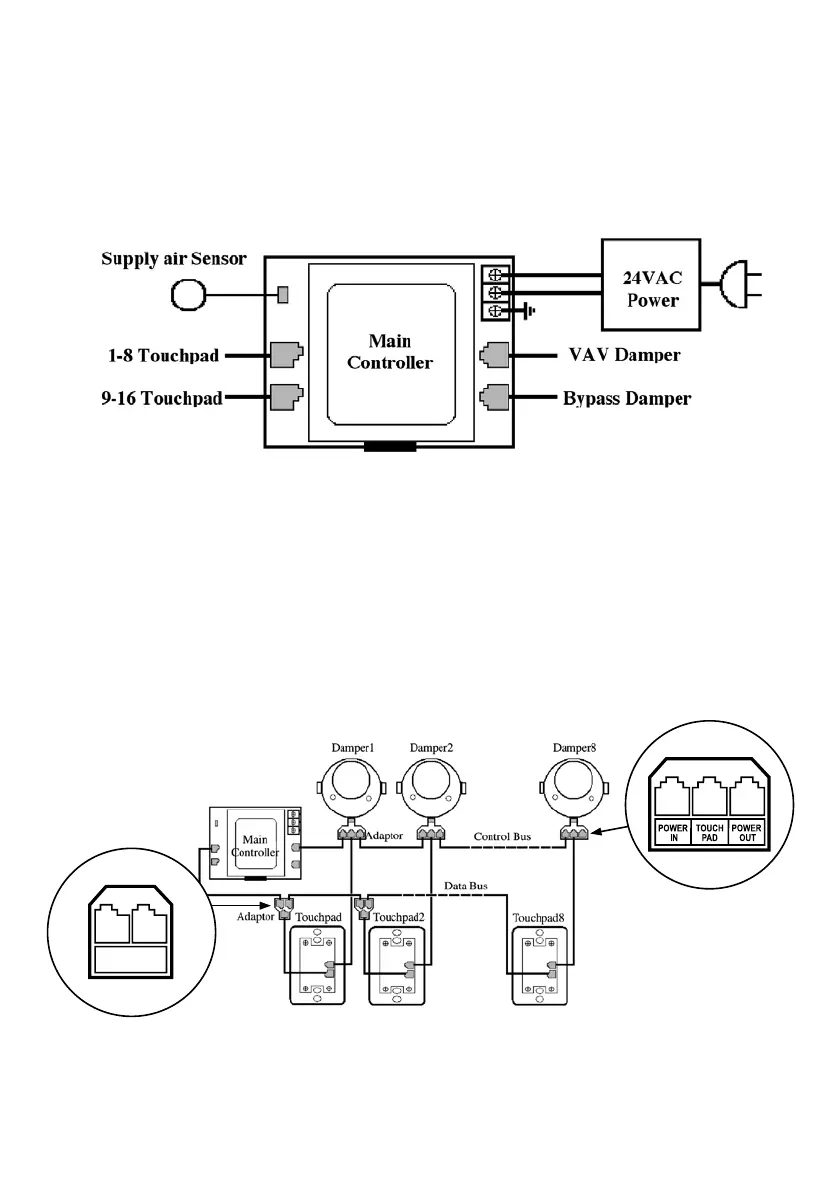

Figure1.MainControllerConnectionDiagram
ZonemasterVAVisaserialbusbasedsystemwhichhasaControlbusand
Data bus. The Control bus provides 24VAC power for up to 8 Dampers
viathemaincontrollerasshowninFig2.
Figure2.WiringdiagramofZone1toZone8
CONFIGURATION
Main controller collects and processes all the information. The connections
tothemaincontrollerareshowninFigure1.
