Polycom CX700 User Manual

User Guide for the Polycom CX700 IP Phone
3 - 4

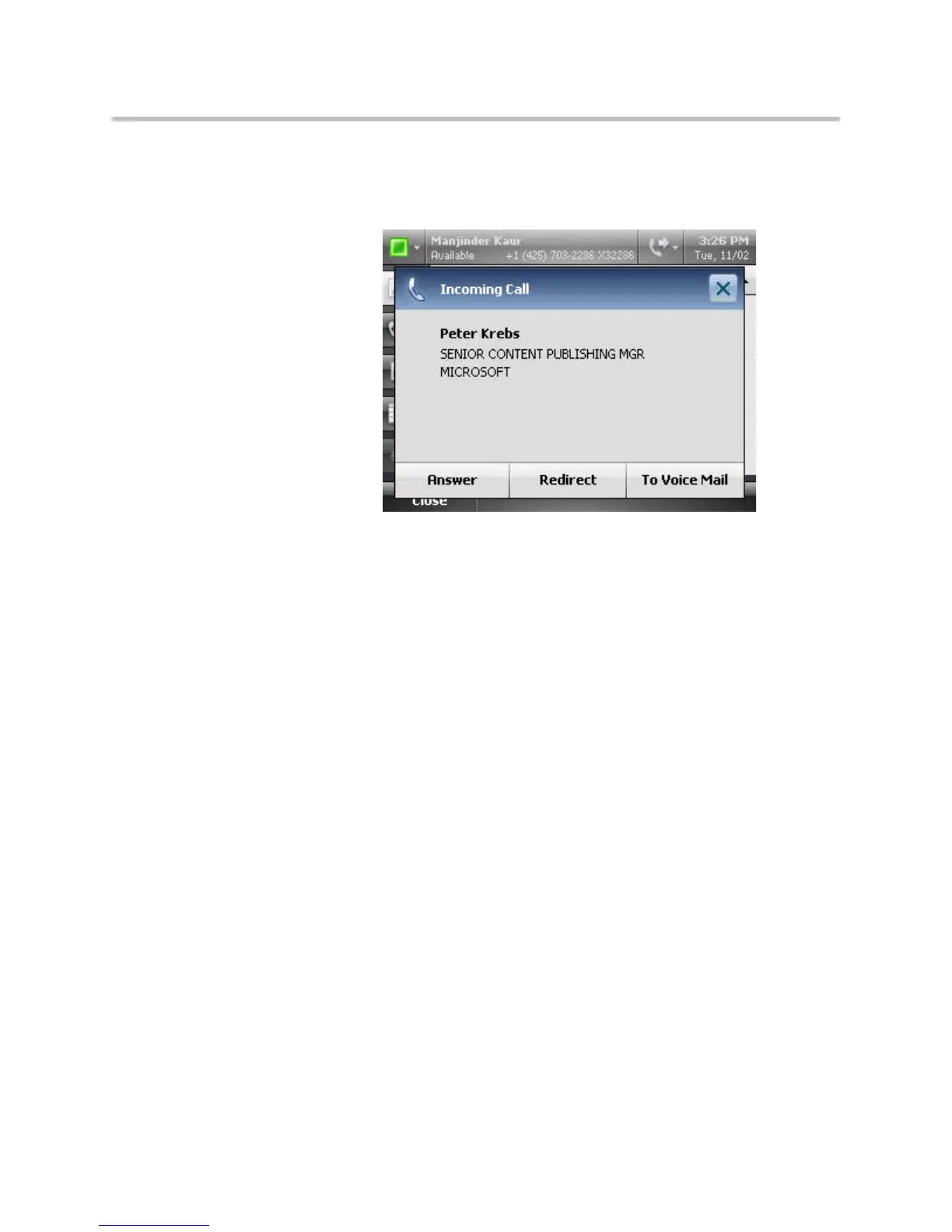

Answering Incoming Calls
When the incoming call is for the user currently logged into the Polycom
CX700 IP phone, the caller name and information will be displayed.
To answer an incoming call when you are not already in a call:
>> Do one of the following steps:
a Pick up the handset.
b Press the Speakerphone key or the Answer soft key to answer the call
through the speakerphone.
c Press the Headset key to answer the call through an optionally
connected headset.
To answer an incoming call when you are in another call:
>> Press the Answer soft key to access the new call.
The original call is put on hold.

Polycom CX700 Specifications

Power

power over Ethernet	IEEE 802.3af Class 2
maximum power consumption	13 Watts

LCD Display

display size	5.7 inches
display type	amorphous-TFT Active-Matrix Transmissive
display resolution	320x240

Audio

frequency response	30 – 20kHz
signal-to-noise ratio	78 dB (@ 1kHz)
dynamic range	>80 dB (@ 1kHz)
total harmonic distortion + noise	<0.08% (@ 1 kHz)

Operating Environment

operating temperature range	-10°C to 40°C
relative humidity	80% max (non-condensing)
operating altitude range	-304.8 meter to 3962.4 meter

Weight and Dimensions

dimensions when not tilted	252.7 x 268.6 x 91.3 mm
dimensions when tilted up	193.2 x 268.6 x 192.1 mm
unit weight	2.1 kg
handset weight	200 g
shipping weight	2 kgs
