Polycom SoundPoint IP 430 User Manual

2

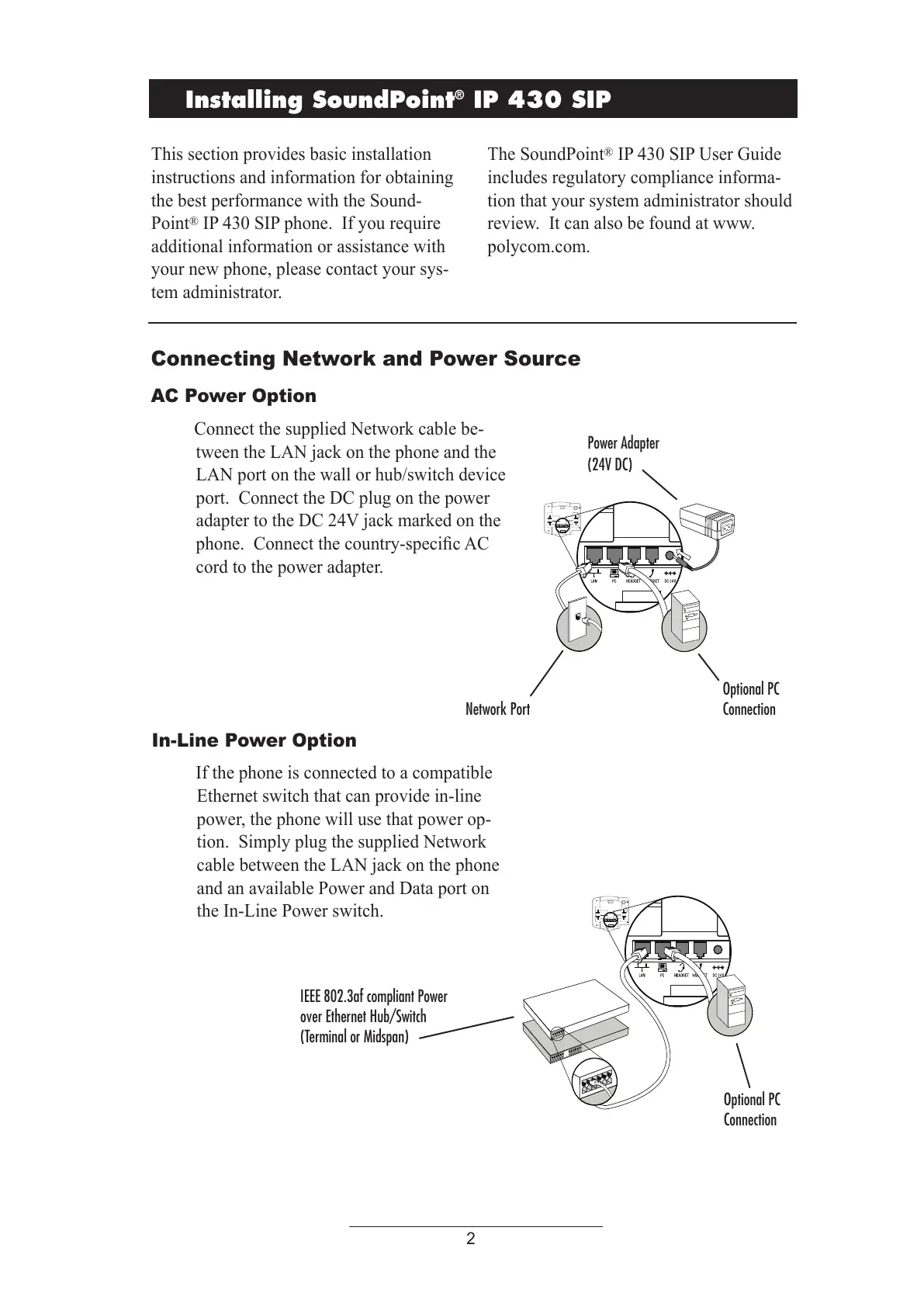

Installing SoundPoint
®
IP 430 SIP
This section provides basic installation
instructions and information for obtaining
the best performance with the Sound-
Point
®
IP 430 SIP phone. If you require
additional information or assistance with
your new phone, please contact your sys-
tem administrator.
The SoundPoint
®
IP 430 SIP User Guide
includes regulatory compliance informa-
tion that your system administrator should
review. It can also be found at www.
polycom.com.
Connecting Network and Power Source
AC Power Option
Connect the supplied Network cable be-
tween the LAN jack on the phone and the
LAN port on the wall or hub/switch device
port. Connect the DC plug on the power
adapter to the DC 24V jack marked on the
phone. Connect the country-specifi c AC
cord to the power adapter.
In-Line Power Option
If the phone is connected to a compatible
Ethernet switch that can provide in-line
power, the phone will use that power op-
tion. Simply plug the supplied Network
cable between the LAN jack on the phone
and an available Power and Data port on
the In-Line Power switch.
IEEE 802.3af compliant Power
over Ethernet Hub/Switch
(Terminal or Midspan)
Network Port
Power Adapter
(24V DC)
Optional PC
Connection
Optional PC
Connection
All manuals and user guides at all-guides.com

Polycom SoundPoint IP 430 Specifications

Display

display resolution	132 x 46 pixels
message waiting indicator	Yes

Power

power over ethernet support	IEEE 802.3af
external AC adapter voltage	24V DC
power consumption	3.0W nominal (3.8W max)

Operating Environment

operating temperature range	10 to 40 degrees C (50 to 104 degrees F)
operating relative humidity	20% to 85%, non-condensing
storage temperature range	-40 to +70 degrees C (-40 to +160 degrees F)

Weight and Dimensions

dimensions	21 cm x 16.5 cm x 18 cm x 3 cm
shipping weight	1.9 kg
