User Guide for the SoundStation IP 6000 Phone
1 - 4
AC Power
To connect your phone to the network using AC power, make sure you have
the optional AC Power Kit. The AC Power Kit contains a Power Adapter,
Regional Power Cord, and a Power Insertion Cable.

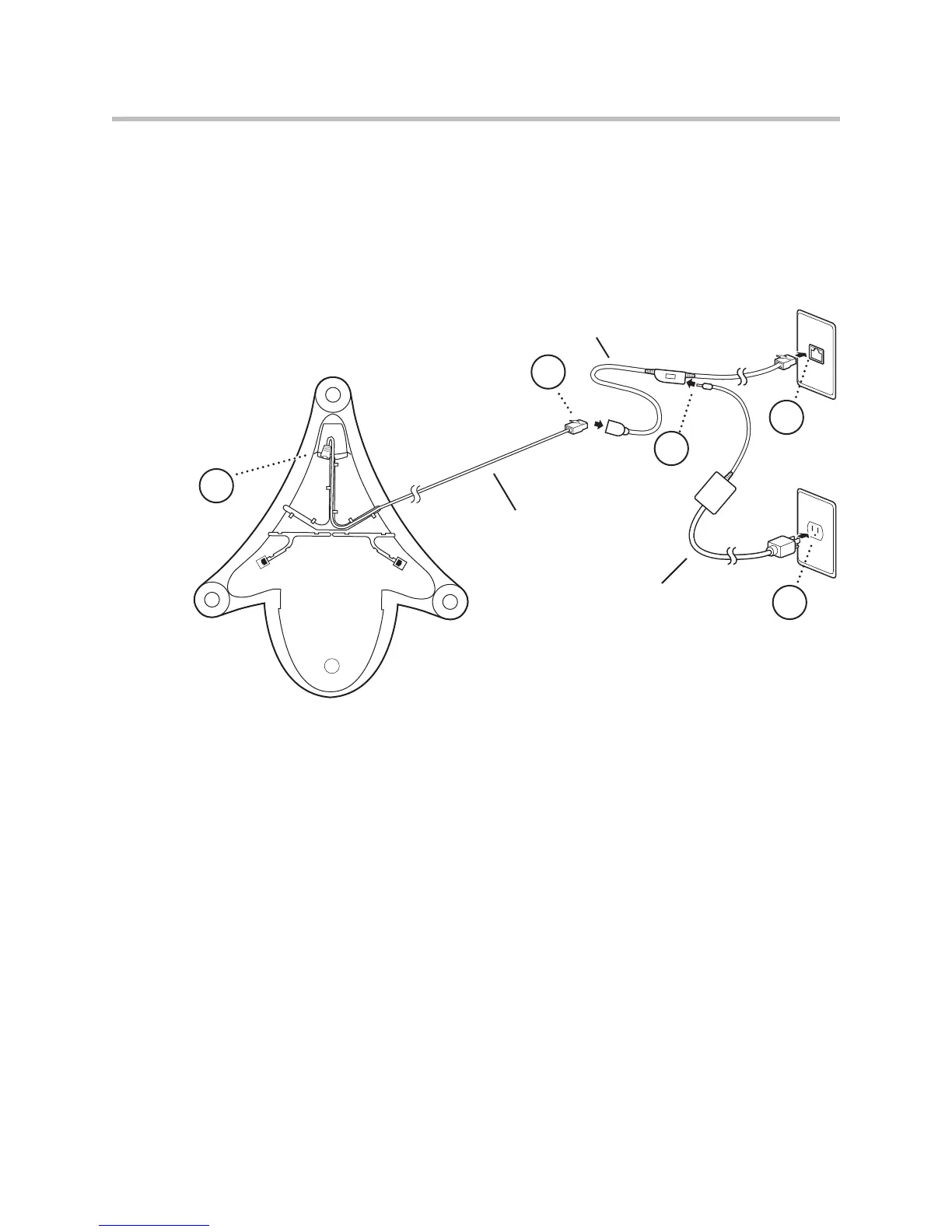

The following figure shows how to connect your phone to the network using
optional AC power.
To connect the phone using AC power:
1. Connect one end of the 25-foot Network Cable to the LAN jack on the
phone.
2. Connect the other end of the 25-foot Network Cable to the
Power Insertion Cable.
3. Connect the Power Insertion Cable to an available LAN port on the wall
or hub/switch device port.
4. Connect the Power Adapter to the Power Insertion Cable.
5. Connect the Power Adapter (with the attached Regional Power Cord) to
the wall outlet.
2
3
4
5
1
Power Adapter
Power Insertion Cable
25-foot Network Cable
