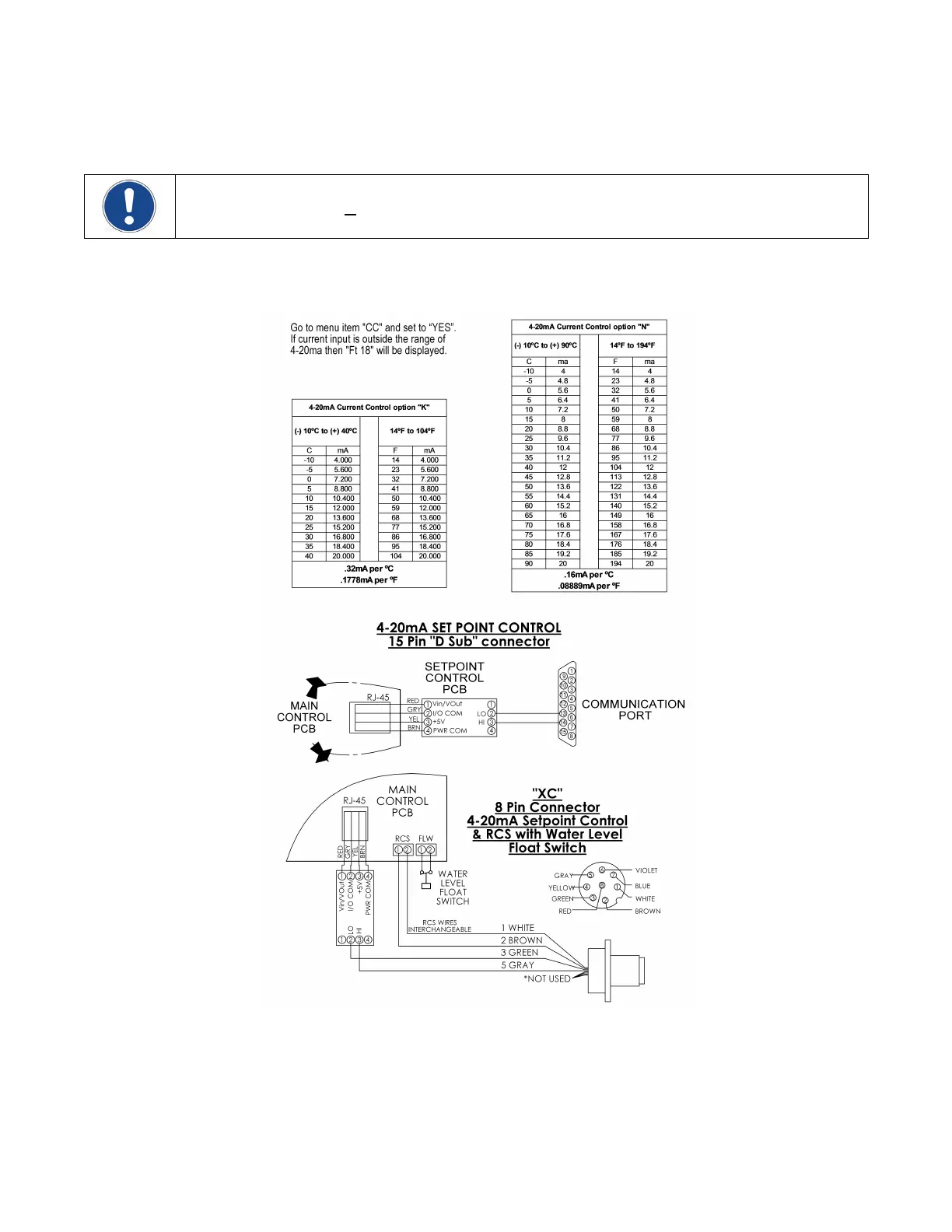

4-20 mA Set Point Control
This feature is optional and may not appear in your version of the software.
NOTE: Two versions are available. If the model number of your Chiller contains an N in the 11
th
digit (e.g., 6860T56A26ND), it provides 4-20mA set point control over a temperature range of 5° to
90°C; if the 11
th
digit is an K, the 4-20mA control range is 4° to 40°C
Go to menu item “CC” and set to “YES”.
If current input is outside of the range of the 4–20 mA, “Ft 18” will be displayed.
