PolyScience DuraChill 58 Series - Rear Panel Components (230 V;240 V;208-230 V); Rear Panel Components (380 V;460 V)

110-392 7

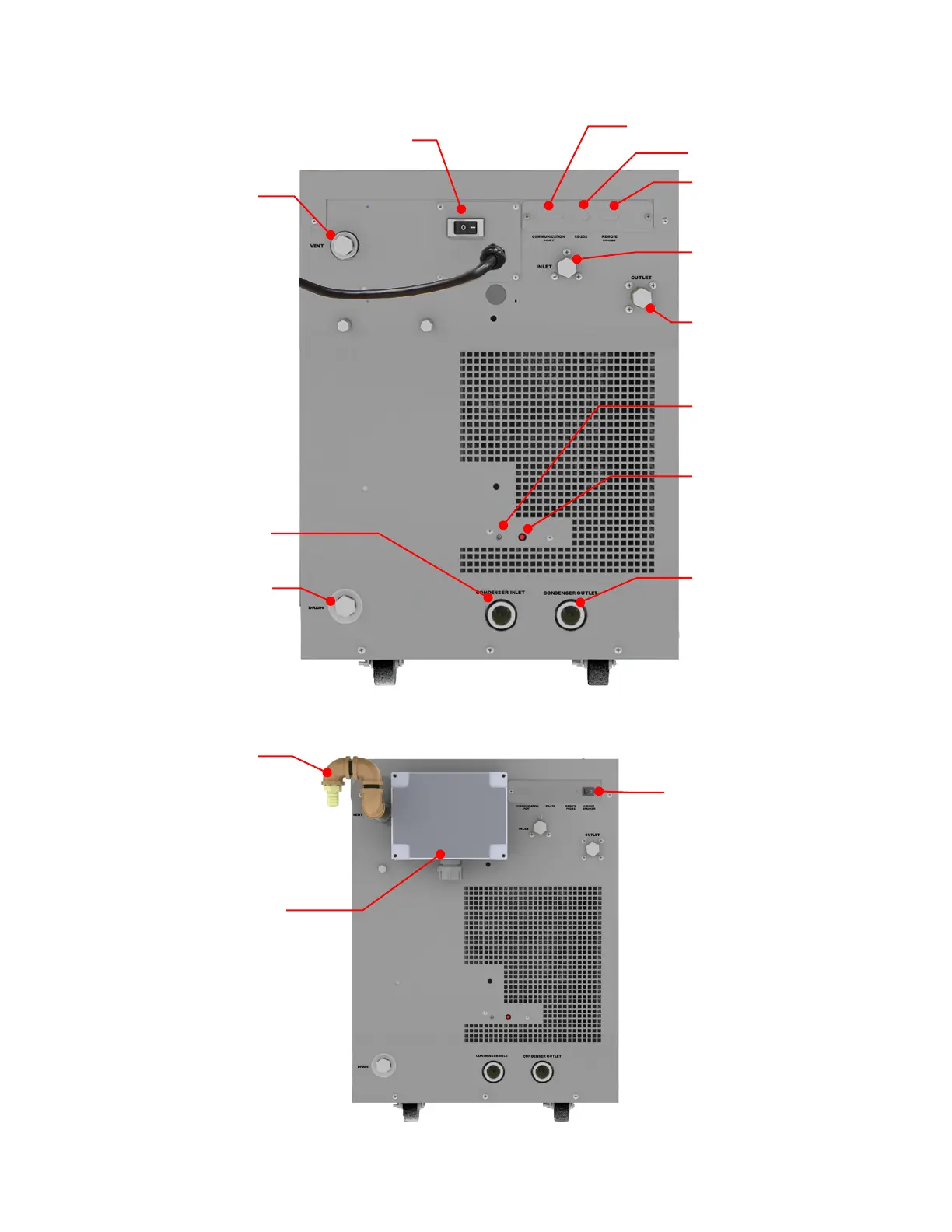

Rear – 230V, 240V, and 208-230V Units
Rear – 380V and 460V Units
Communications Port (optional)
RS-232 Port (optional)
Remote Temperature
Probe Port (optional)
Power Switch / Circuit Breaker
Reservoir Vent
(Vent Assembly required
on 5XXX models)
Fluid Inlet (from process)
Fluid Outlet (to process)
Facility Water Outlet
(water
-cool models)
Facility Water Inlet
(water-
cooled models)
Reservoir Drain
Over-Temperature
Protection Adjust
(5XXX models only)
Over-Temperature Protection
Reset (5XXX models only)
Vent Assembly
(supplied with
5XXX models)
Electrical Connections
Junction Box
Power Switch
