POOLEX 90 - Exploded View

11

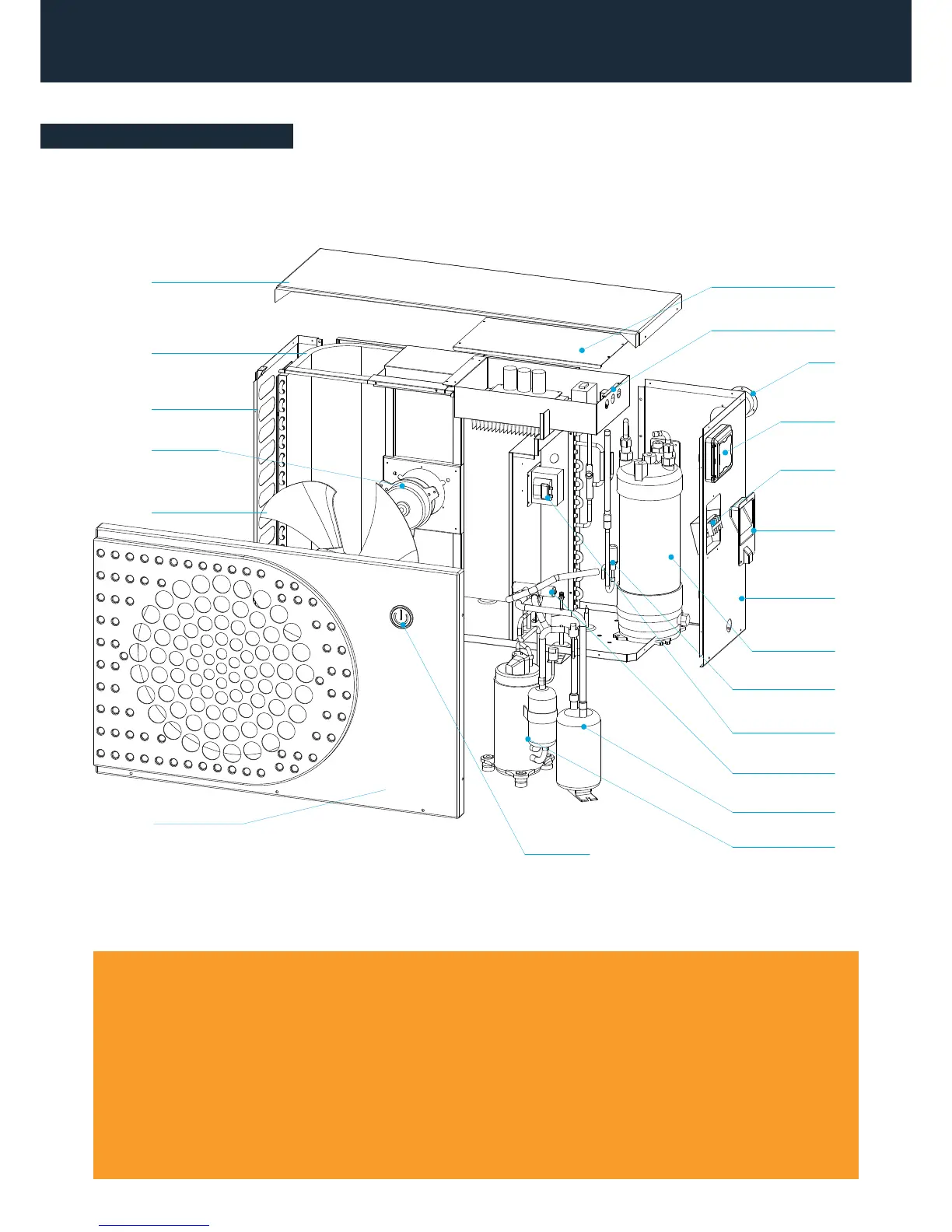

2.5 Exploded view
2. Description
1
2
4
6
3
9
10
11
14
7
5
8
13
12
15
16
17
18
19
20
1. Front panel
2. Fan blade
3. Fan motor
4. Left panel
5. Evaporator
6. Top panel
7. Electrical box cover
8. Electrical box
9. Pressure gauge
10. Controller
11. Wiring terminal
12. Terminal cover
13. Right panel
14. Heat exchanger
15. Electronic expansion valve
16. Reactive resistance
17. 4-way valve
18. Gas-liquid separator (only model 150 / 200)
19. Compressor
20. ON/OFF switch
